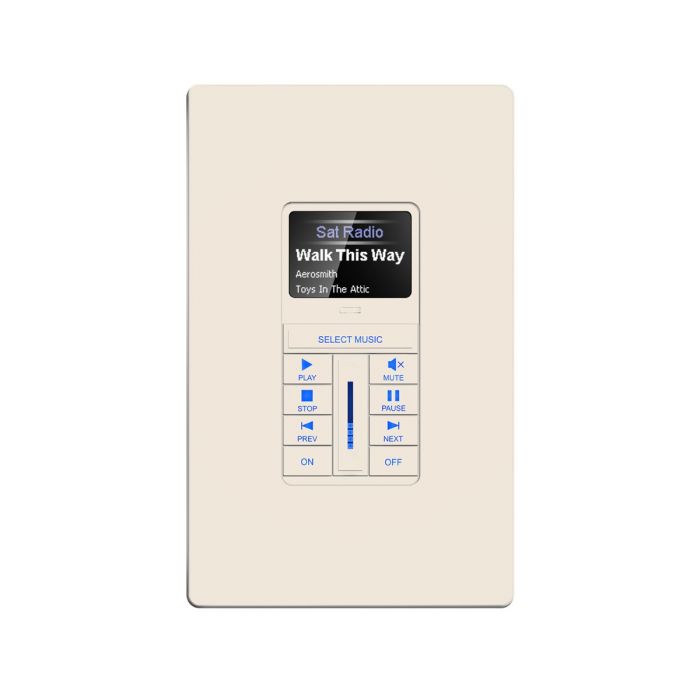

KX1 1.2 inch In-Wall Audio Distribution Keypad

The KX1 in-wall keypad is designed for intuitive multi-room audio control via the RTI control system. A 1.2" color OLED display, eleven fully-programmable hard buttons and an open architecture, provide simple control over media streamers, AV receivers and more. When integrated with an RTI XP control processor and supported distributed audio systems, the customizable LED display provides two-way feedback from the selected source while a backlit bar displays the current volume level. Easily blending into any decor, the KX1 is compatible with standard Decora® style wall plates (not included) and is available in light almond. (White and Black are no longer available.)

Included in the box:
KX1, screws #6-32 (2)

KX1 Features

Blend your flush-mount keypad into the wall and use it for simple control of your home or business.

Eleven buttons provide quick access to control functions such as lights, music, audio/video source selection.

2-Way / Status Display
Control intuitively with the buttons of your keypad and get status feedback from controlled devices on the status display such as on/off or arm/disarm status, dimming value of lights, selected audio/video source.

Control devices directly without a control processor by connecting a CPB-1 Control Block.

Control infrared devices directly without a control processor by connecting IR emitters blasters or repeaters.

Standard 10/100 BaseT network connection for bidirectional control communication with RTI control processors.

RTI Control Port
Power your keypad by connecting the control port to a CB-8 Connecting Block and establish two-way control communication with RTI processors and accessories.

Ambient Light Sensor
Enjoy the perfect button backlight and display brightness that’s automatically set depending on the ambient light.

Mount your keypad conveniently in a standard US single gang wall box.

  • In-wall keypad with 1.2” color OLED display with two-way metadata feedback.
  • Assignable/programmable hard buttons for common functions.
  • Available in light almond.
  • Backlit volume level indicator.
  • Use any standard Decora® type wall plate (not included).
  • IR output for direct control of devices up to 1000 feet away.
  • Ethernet port enables reliable communication with RTI control system.
  • Fits in a single gang electrical outlet box.
  • Software and firmware updates via USB and Ethernet.
  • Optional modules/processors for voltage sensing, relays and advanced two-way control.
  • USB and Ethernet programming.
Power +9VDC to +16VDC, 350mA max
Power Management Adjustable backlight brightness, Ambient light sensor
Display Color OLED with 65K colors
Display Size 1.2in (30.5mm) diagonal, 128w x 96h pixels
Backlight Blue/Red LED
Infrared Output Through control port, 200mA output*
Drives up to 1000 ft (300 m) of wire
Ethernet Port 10/100 Base-T
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Communications USB programming port, Ethernet
Enclosure Formed steel, black powder coat finish
Front Plate High-impact molded ABS plastic in white and light almond
Mounting Mounts in a single gang electrical box
Wallplate Compatible with Decora style, not sold by RTI
Dimensions (H x W x D) 4.1in (104mm) x 1.78in (45.2mm) x 1.02in (25.9mm)
Installation Cut-Out (H x W) 2.85in (72.39mm) x 1.78in (45.2mm)
Total Depth in Wall .75in (19mm) plus cables
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 4.0oz (113g)
Warranty Three Years (Parts & Labor)
