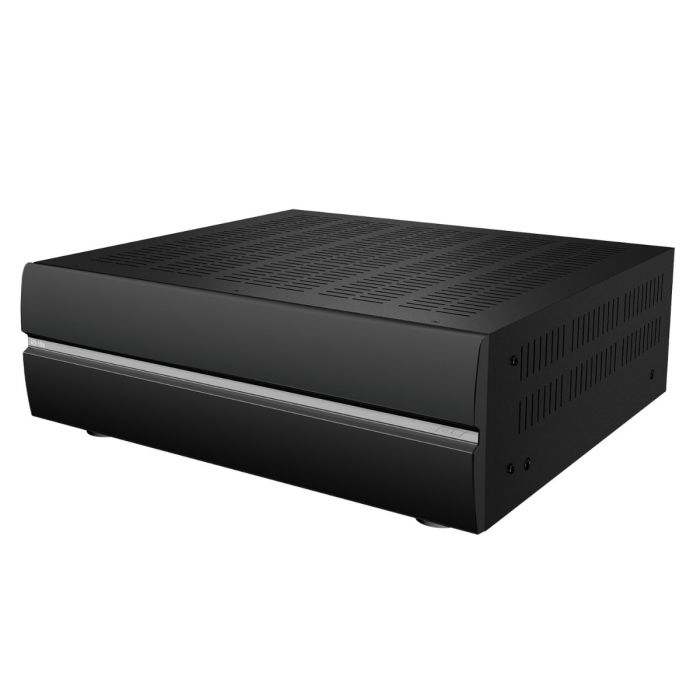

AD-16x Audio Matrix Switch

Ideal for large, multi-zone audio installations, the AD-16x provides routing for 16 audio sources to 16 zones. For added convenience, the AD-16x also features eight remote source inputs, which allows devices located in other rooms to be used as a global source. If the system grows past 16 zones, up to four AD-16x units can be cascaded for up to 64 output zones. The switch also delivers complete audio management, including parametric equalizing, zone grouping, and balance control - all configurable via a convenient web interface.

For amplification, use the RTI CP-16i Cool Power® amplifier to drive crystal-clear audio to every speaker.

Setting the AD-16x apart is the engineering that enables this matrix to become an extension of the RTI ecosystem. At the heart of this powerful integration is the AD64 two-way driver running on an RTI XP processor, providing integrators with unmatched flexibility and programming efficiency. The driver features custom project labeling, allowing integrators to name all of the zones and sources, eliminating tedious programming by ID number. Elevating the user experience, the driver also allows dynamic audio source management, which tracks the active sources. This allows a user to determine if a source is already in use and select a different one to avoid an inadvertent music change.

The AD-16x provides the audio switching and distribution functions, while the RTI control processor and user interfaces manage the audio source control, user input and status feedback. Information such as the selected source, volume level, and tone control settings are available for each zone. Depending on the source equipment used, more advanced information such as song playlists, cover art, and tuner RDS data may also be available. Of course with RTI control systems, audio is just the beginning. Imagine every aspect of your environment working in complete harmony - from audio and video, to lighting, temperature and more.  Thanks to the efficient engineering that defines the AD-16x, there is no reason to limit yourself to a system that was designed only for music - with RTI so much more is possible.

Included in the box:
AD-16x, power cord, rack ears (2) with screws, feet with screws(4)

Simplified Control
Seamless extension of the control system delivers an exceptional experience.

Dynamic Zone Grouping
Group zones together on the fly to control as a single zone and distribute audio throughout the home or office quickly.

Remote Sources with Control

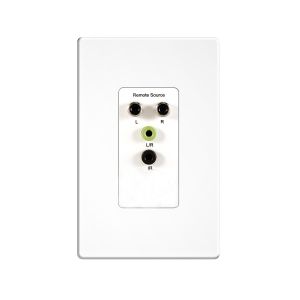

Add remote audio sources from any room to your audio distribution system with a remote source plate, RSP-1, and control that source without having to run additional wire.

Doorbell integration
Briefly mute the music when the doorbell rings so your customer never misses the action at the front door while listening to their favorite music.

Expandable
Pre-outs on every zone gives you the option to increase the number speakers or increase the power needed.

    • Provides routing of 16 stereo audio sources to 16 zones.
    • Eight remote source inputs allow devices located in other rooms to be used as a global source using the RSP-1 accessory.

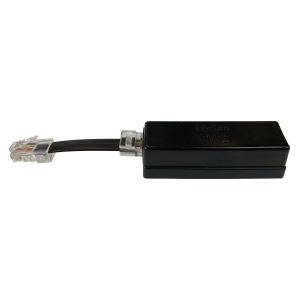

    • RSO-1 digital to analog converter (sold separately) provides audio input for digital audio sources.
    • Up to four AD-16x units may be source-looped, for up to 64 output zones.*
    • Custom project labeling allows integrators to name all of the zones and sources for more efficient programming (via AD64 driver).
    • Dynamic audio source management tracks the sources that are active, allowing users to select a different one and avoid inadvertent music changes (via AD64 driver).
    • Preamp outputs require external amplification via RTI or third-party audio amplifier.
    • Eight bands of parametric audio equalizing in all zones.
    • Built-in web interface allows zones to be configured and grouped, allowing multiple outputs to be controlled as a single zone.
    • Audio input trim adjustment on each source.
    • Controlled via IP, RS-232 or Infrared.

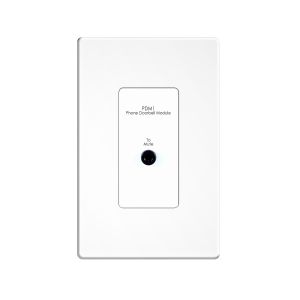

    • Optional phone and doorbell mute accessory.
    • Rack mountable (3U rack form factor) or free standing.

*NOTE: Up to eight AD-16x units may be used to reach 128 output zones using Infrared control. There is a limit of four AD-16x units when the AD64 two-way driver is used, for a maximum of 64 output zones.

AC Input Voltage 100VAC ~ 240VAC, 50~60Hz Switching Power Supply, 20W
Power Switch Front Panel On/Off with LED indicator
Mounting Rack mount or free standing
Dimensions (WxHxD) 16.9” (430mm) x 5.3” (133mm) x 14.5” (369mm)
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 14.5lb (6.6kg)
Humidity 5% to 95% Non-Condensing
Heat Output 68 BTU/hr

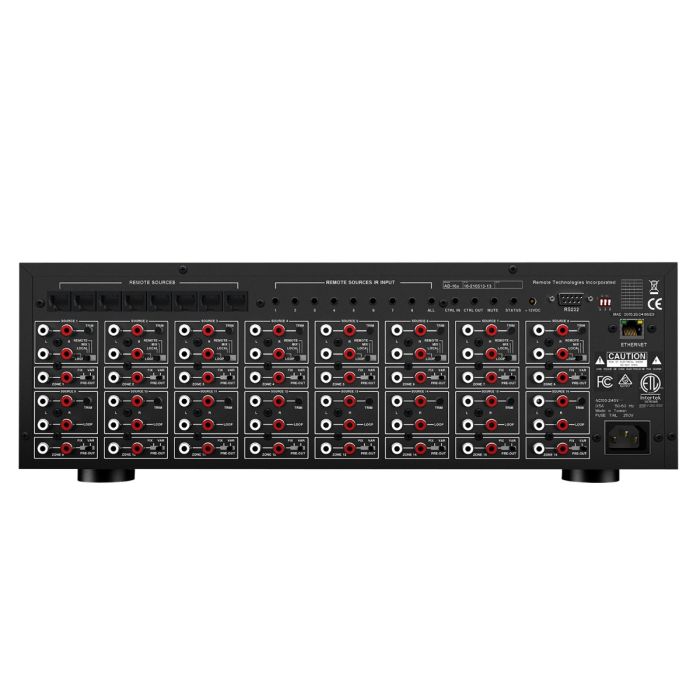

Loop Outputs Sixteen, 16 RCA jack pairs
Control Input - CTRL In One, 3.5mm, for IR control
Control Output - CTRL Out One, 3.5mm
Remote Source IR Nine, 3.5mm jacks - Eight discrete, One universal (All)
Serial/RS232 Port One, DB9, Bidirectional control
Ethernet Port One, 10/100Base-T, RJ45
Unit ID Numbers 1-8, Set using 3 switches
NOTE: Using AD64 driver limits total units to 4
IR control allows up to 8 units
Trigger Output (Status Jack) One, 12VDC @ 15mA
+12VDC Voltage Output One, 12VDC @ 500mA
Mute One, 3.5mm
Phone Input Sensitivity: AC25V-AC100V 20Hz
Doorbell Sensitivity: AC/DC 3-12VDC
Audio Source Inputs (Local) Sixteen, 16 RCA jack pairs
Audio Source Inputs (Remote). Eight, RJ-45 jacks
Output Zones Sixteen zones of stereo L/R,
16 RCA jack pairs (switchable between fixed or variable)
Total Harmonic Distortion <0.03%
S/N Rating 92dB (@ mute +1) , 100dB(@ mute)
Frequency Response 20Hz to 20KHz @1W/8ohm 1.5+/-.5dB
Input Overload 2.1V
Input Impedance 22KOhms
Channel Separation 1KHz >60dB
Crosstalk Between Sources @ 1KHz >90dB
Crosstalk Between Zones @ 1KHz 90dB
Treble Control @10KHz 8.5dB +/-.5dB
Bass Control @100Hz 8..5dB +/-.5dB
Equalizer Bands (8) 32Hz, 64Hz, 256Hz, 512Hz, 1024Hz, 2048Hz, 4096Hz, 16380Hz
Warranty Three Years (parts & labor)

All features and specifications subject to change without notice.
