RSP-1 Remote Source Plate

This product is discontinued.

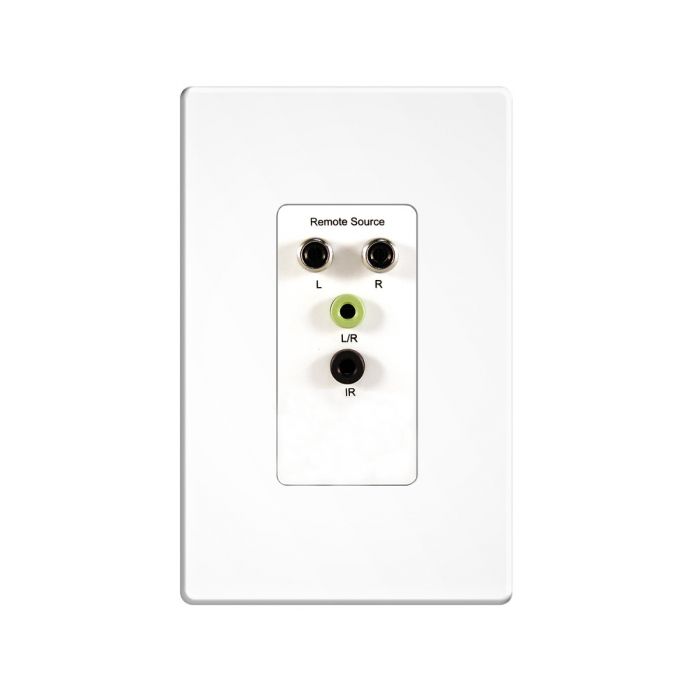

The RSP-1 Remote Source Plate is used with RTI Audio distribution systems (Models: AD-8x/AD-4x/AD-8/AD-4) to allow a convenient connection and control of remote audio sources. Wall mounted in a standard single gang electrical box, the RSP-1 provides the analog audio inputs for devices such as a PC, Apple iPod® dock or CD player that are located away from a centralized rack. A single Cat-5 cable delivers the audio to the RTI audio distribution system and infrared control to the audio source via the RTI control system.

The RSP-1 is sold separately.

  • Two RCA audio inputs for connection of the audio sources such as a CD player.
  • One 3.5mm stereo mini jack for connection of audio sources such as an Apple iPod or PC.
  • One 3.5mm mono mini jack for connection of an IR emitter to control the audio source via the RTI control system.
  • Requires only one Cat-5 cable.
  • Mounts into single gang electrical box and uses Decora® style wall plate (not included).
  • No power supply required for operation
Audio Inputs Two RCA, One 3.5mm stereo mini jack
Infrared Output One 3.5mm mono mini jack
Mounting Wall-mount in single gang electrical box
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Warranty Three Years (Parts & Labor)
