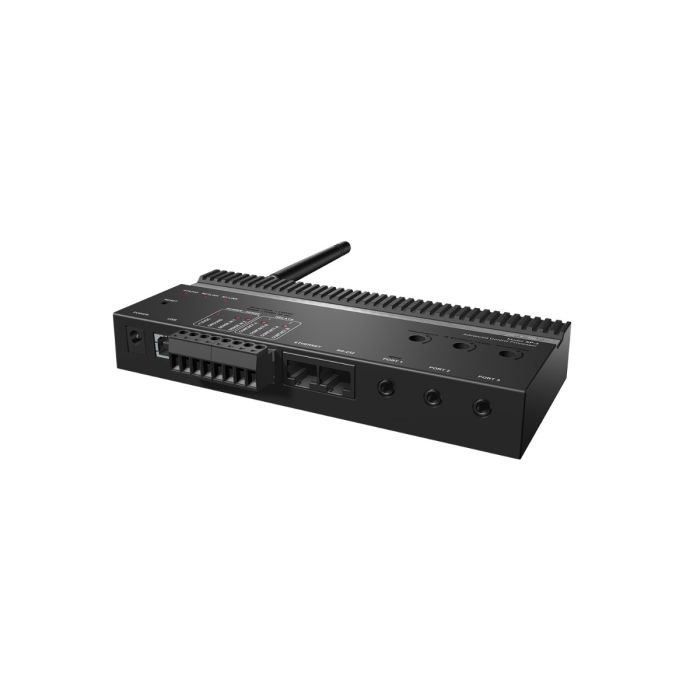

XP-3 Control Processor

Exceptional control and automation performance in a compact form-factor for smaller custom integration projects.

The XP-3 professional control processor delivers powerful automation capabilities perfectly sized for media rooms, bedrooms, conference room control programming, and other focused applications. This compact yet capable processor provides comprehensive custom control programming when paired with RTI remotes, in-wall touchpanel controls, or the RTI control app on mobile devices.

Advanced bi-directional communication enables real-time two-way feedback from connected third-party devices including music streamers, cable boxes, lighting control integration systems, security panels, and more. The extensive RTI control system drivers database ensures seamless integration across thousands of compatible devices for any smart home or intelligent office environment.

Programming efficiently with Integration Designer software, the XP-3 enables flexible connectivity via Ethernet, Zigbee, RS-232, IR, and relays. The built-in astronomical clock facilitates sophisticated scheduling for time-based events and automation sequences—perfect for creating "good morning" and "good night" scenes that adjust lighting, climate, and entertainment systems automatically.

Designed for versatility, the XP-3 scales effectively as a standalone solution and works seamlessly with larger RTI processors as a secondary controller in complex multi-room systems. This flexibility makes it ideal for custom technology integrators seeking reliable performance across diverse residential, hospitality, and commercial applications.

Integration Designer software is available to authorized RTI dealers.

Included in the box:
XP-3, power supply (12V, 1A), RJ45 to DB9 serial adaptor, antenna, mounting plate, screws & drywall anchors (4)


XP-3 Features

2-Way
Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.

RS-232
One (1) control port for 3-wire connection with the capability of polling status feedback from controlled devices or systems.

Relay
Two (2) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 5A/30VDC (external power supply required).

MPIO
One (1) Multi-Purpose Input/Output control port that allows for infrared control and connecting voltage sensors or RS-232 communication modules.

Infrared
Two (2) control ports for 2-wire connection to infrared emitters, blasters and repeaters.

Sense Input
Two (2) inputs that sense the voltage state from a voltage sensor to trigger a programmed control command or macro.

Ethernet
Standard 10/100 BaseT network connection for bidirectional control communication with RTI remotes, touch panels and devices that are controlled over IP network.

Zigbee
Standard wireless Zigbee connection for bidirectional control communication with RTI remotes.

Astronomical Clock
Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.

  • Supports RTiPanel App for Apple/Android Smart Phones and Tablets and Windows PCs.
  • Supports same two-way drivers used by XP6/XP8.
  • Powerful 32bit, 533MHz CPU.
  • 128Mb of non-volatile Flash memory stores your system configuration
    even when power is not present.
  • One multi-purpose I/O port supports optional RTI power sensing and
    communications modules.
  • Two IR output ports with variable output.
  • Two assignable voltage sense inputs.
  • Two programmable relay outputs.
  • One two-way RS-232 port for bi-directional communication with
    supported devices.
  • Integrated 10/100Base-T Ethernet port for programming, control and
    two-way communication with compatible devices.
  • Integrated 10/100Base-T Ethernet port supports Power-over-Ethernet
    (POE) Class 3.
  • Built-in astronomical clock for time-based events and sleep timers.
  • Built-in 2.4GHz ZigBee® RF transceiver module and removable
    antenna.
  • Compatible with industry standard IR emitters and blasters.
  • Configurable for communication with RTI in-wall products and
    433MHz wireless controllers.*
  • Programmed using the RTI Integration Designer Software.
  • USB 2.0 and Ethernet programming.
  • Field upgradable firmware.

    *NOTE: Using a 433MHz RTI remote control requires a separate RM-433
    Antenna. Also, while this configuration is possible, its use should be
    limited to secondary zones that aren’t heavily used (guest rooms, outdoor
    areas etc). Installations requiring primary control via both Zigbee and
    433MHz controllers should use an XP-6 or XP-8 control processor.

* Integration Designer software only available to authorized RTI dealers.

Power +12VDC, 1A
Wireless Networking IEEE802.15.4 Zigbee network compliant
RF Frequency Range 2.4GHz - 2.5GHz
Multi-Purpose Output Ports One custom 3.5mm 4-conductor jack (port 1)
Designed for RTI modules as well as industry-standard IR emitters
IR Output Ports Two, 3.5mm jack (ports 2 & 3)
Compatible with industry-standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
Infrared Frequency Range 15 KHz - 460 KHz
Infrared Input Compatible with industry-standard repeaters and receivers
Relays Two, 5 amps @ 30VDC
Sense Inputs Two, 3-24VDC
RS232 Ports One, Bi-directional RJ45 Connections
Ethernet Port One, 10/100Base-T with PoE (Class 3)
USB Ports One, Programming
RAM Memory 64MB
Flash Memory 128MB
Mounting Wall-mount or free standing
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (W x H x D) 7.0 in (175mm) x 3.0 in (76mm) x 1.0 in (25mm)
Weight .4lbs (212g)
Warranty Three Years (Parts & Labor)
