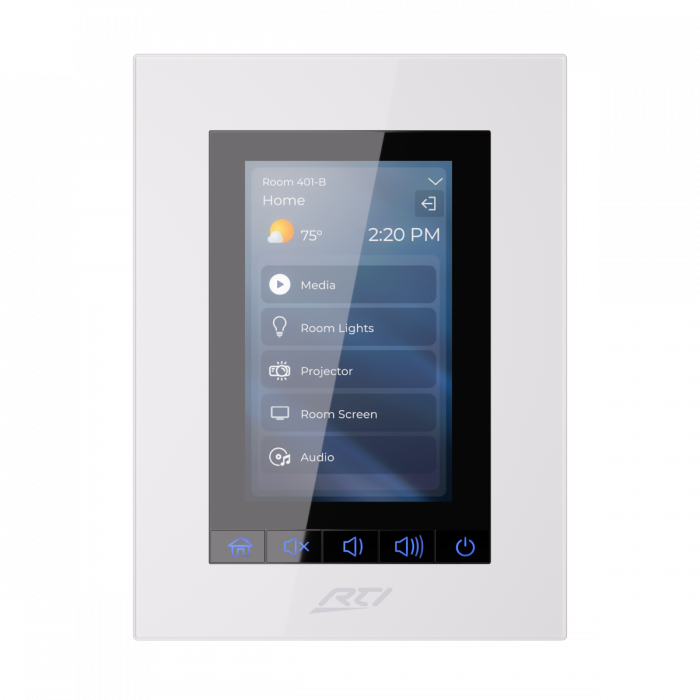

KX4 4 inch In-Wall Touchpanel Keypad w/ Control Processor
The ultimate single-room control solution combining touchpanel interface and professional control processor in one cost-effective unit.
Perfect for commercial applications such as conference rooms, classrooms, and lecture halls, the KX4 delivers enhanced automation with unmatched simplicity. This innovative in-wall touchpanel control solution combines a 4" high-resolution capacitive touchscreen with five configurable buttons, plus an integrated control processor—eliminating the need for separate components while delivering professional-grade custom control programming capabilities.
The vibrant touchscreen provides intuitive system control while the five back-lit buttons offer instant access to frequently used functions. Each button can be personalized with RTI Laser Shark engraving for clear identification and professional appearance. This thoughtful design ensures reliable operation in demanding commercial environments where ease-of-use is paramount.
The built-in professional control processor features advanced capabilities including support for two-way drivers, RTiPanel App connectivity, and seamless expansion configurations. Comprehensive back-panel connections enable direct device control via IR, IP, and dual RS-232 ports. Six voltage sense ports with sense-event capabilities plus four relays provide extensive control via contact closure for lighting control integration, motorized screens, and other commercial automation systems.
Integration Designer software is available exclusively to authorized RTI dealers.
Included in the box:
KX4, bezel (white), RJ45 to DB9 serial adaptor (2), mounting wings (2), drywall template, screws (4)
KX4 Sales and Product Overview:
In-Wall
Blend your flush-mount touchpanel into the wall and make it a central point for controlling your home or business.
Hard Buttons
Five Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touchpanel.
2-Way
Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.
RS-232
Two (2) control ports for 3-wire connection with the capability of polling status feedback from controlled devices or systems.
Relay
Four (4) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 2A/30VDC (external power supply required).
Infrared
One (1) control port for 2-wire connection to infrared emitters, blasters and repeaters.
Sense Input
Six (6) inputs that sense contact closure from switches, windows or doors or voltage state from a voltage sensor to trigger a programmed control command or macro.
Ethernet
Standard 10/100 BaseT wired network connection for bidirectional control communication with RTI remotes, control accessories and devices that are controlled over IP network.
PoE
Power your touchpanel through a PoE network switch or PoE injector. No extra power supply required.
Zigbee
Standard wireless Zigbee connection for bidirectional control communication with RTI remotes.
Astronomical Clock
Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.
Laser Shark
Customize the button labels with text or graphics.
- Vivid 4” WVGA (480x800) capacitive touch screen, and five hard buttons provide an incredibly simple and intuitive control experience.
- Built-in control processor features advanced capabilities including support for two-way drivers, RTiPanel App and expansion capabilities.
- Control processor also enables direct control of devices via IR, IP and two RS-232, six voltage sense ports with sense-event capabilities, four relays for control via contact closure and an astronomical clock for time-based events.
- Built-in 2.4GHz ZigBee® RF transceiver module and antenna enables wireless remote control support.
- Integrated 10/100 Base-T Ethernet (with PoE) for access to network security cameras, programming updates and more.
- Proximity sensor wakes up the unit as a user approaches and an ambient light sensor adjusts the touchpanel’s backlighting.
- Powered using power supply, CB8 connecting block or PoE (Power over Ethernet).

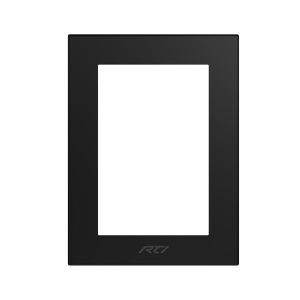

- Stylish low-profile faceplate available in white or black (ships with white).
* All Specifications subject to change without notice.
Weight8.9oz (252g)
Power | +12VDC to +16VDC, 1A max |
Power Management | Adjustable backlight brightness, Ambient light sensor, Proximity sensor |
Touchscreen Display | High-brightness color TFT LCD WVGA (480x800 pixels) with 16.7M colors Integrated high-resolution capacitive touch screen |
Display Size | 4.0 in (97.2mm) diagonal |
Display Backlight | LED Backlit, 200nit |
Infrared Output | One, through control port, 200mA output Drives up to 1000 ft (300 m) of wire |
Serial Port | Two RJ-45, RS-232 communication |
Ethernet Port | 10/100 Base-T with Power-over-Ethernet |
Relays | Four, 2 Amps @ 30 VDC |
Sense Inputs | Six, 2-24VDC |
Radio Frequency Control Range | Up to 100 feet (30.5 meters) Communication with optional wireless Interfaces |
Radio Frequency Carrier | 802.15.4 @ 2.4GHz (Zigbee® Wireless Networking) |
Microphone | Silicon MEMS |
Speaker | One (1) 2 Watt, 8 Ohm |
Flash Memory | 128MB Bytes Flash (non-volatile) memory |
RAM Memory | 256MB |
Device Capability | Total number of devices is limited only by memory |
Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
Communications | USB programming port |
Enclosure | High-impact molded ABS plastic |
Mounting | Integrated mounting wings, or screws through front plate |
Bezel Dimensions (W x H) | 4.352in (110.5mm) x 5.876in (149.25mm) |
Installation Cut-Out (W x H) | 2.942in (74.7mm) x 5.192in (131.8mm) |
Total Depth in Wall | 1.265in (32.1mm), with mounting wings 1.624in(41.2mm) NOTE: Additional room may be required depending on connections |
Weight | 8.9 oz (252 g) |
Operating Temperature | +32°F to +122°F (0°C to +50°C) |
Operating Humidity | 5% to 95% Non-condensing |
Warranty | Three Years (Parts & Labor) |
Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
* All Specifications subject to change without notice.
Solution Guides
RTI-Solution-Guide-Huddle-Space-with-KX4 (PDF)
RTI-Solution-Guide-Classroom-with-KX4-and-VSS-51 (PDF)
Application Guides

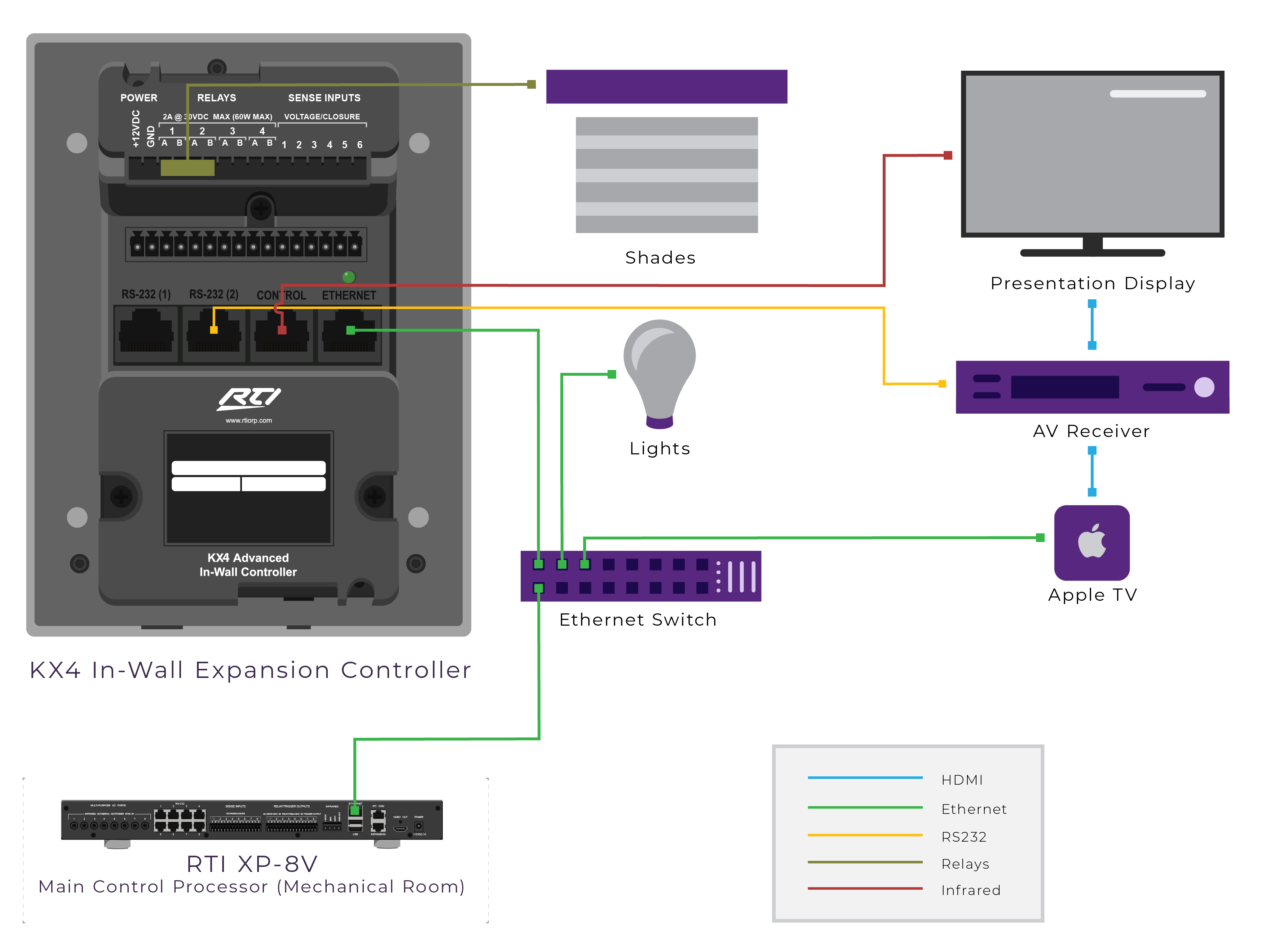

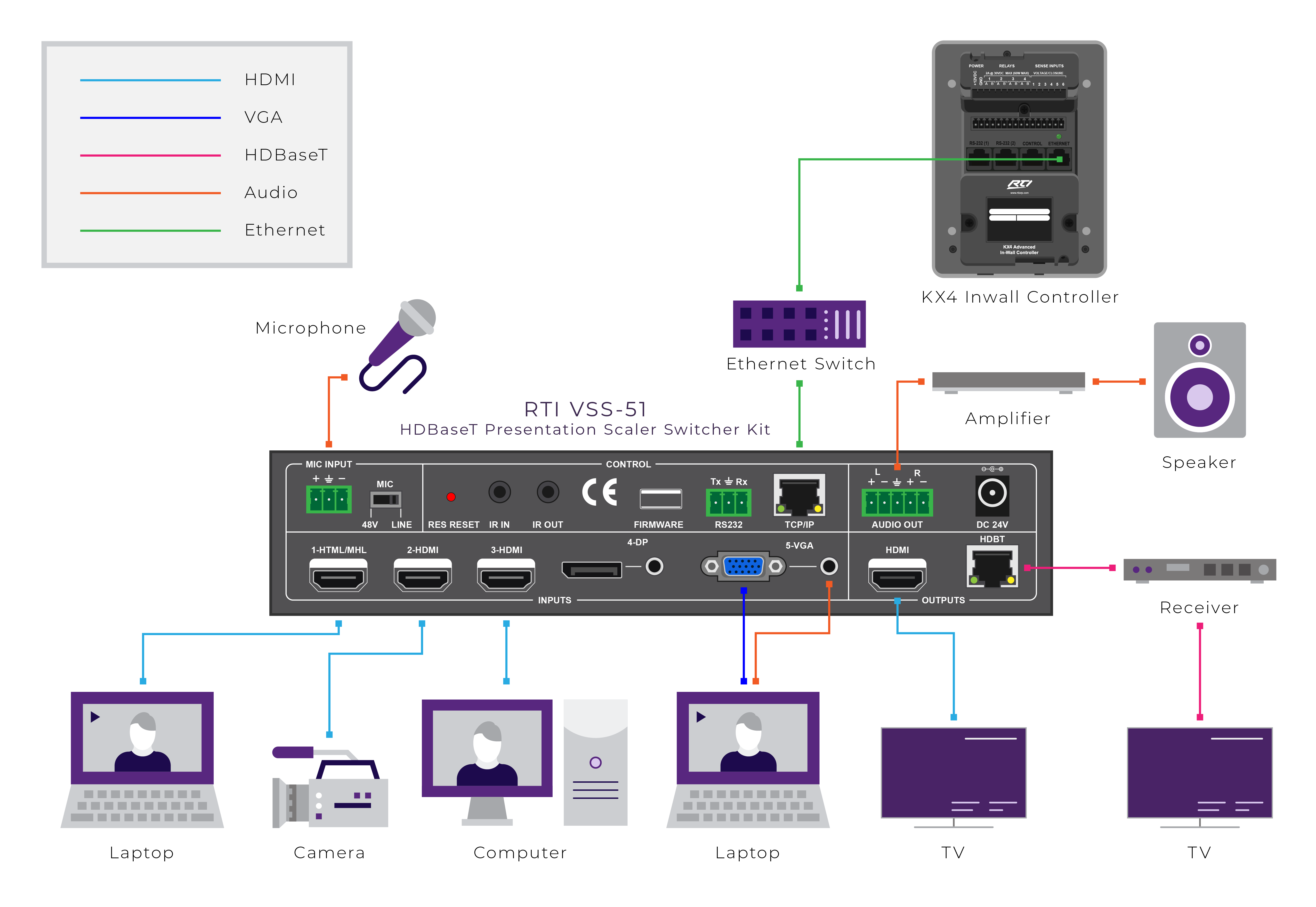

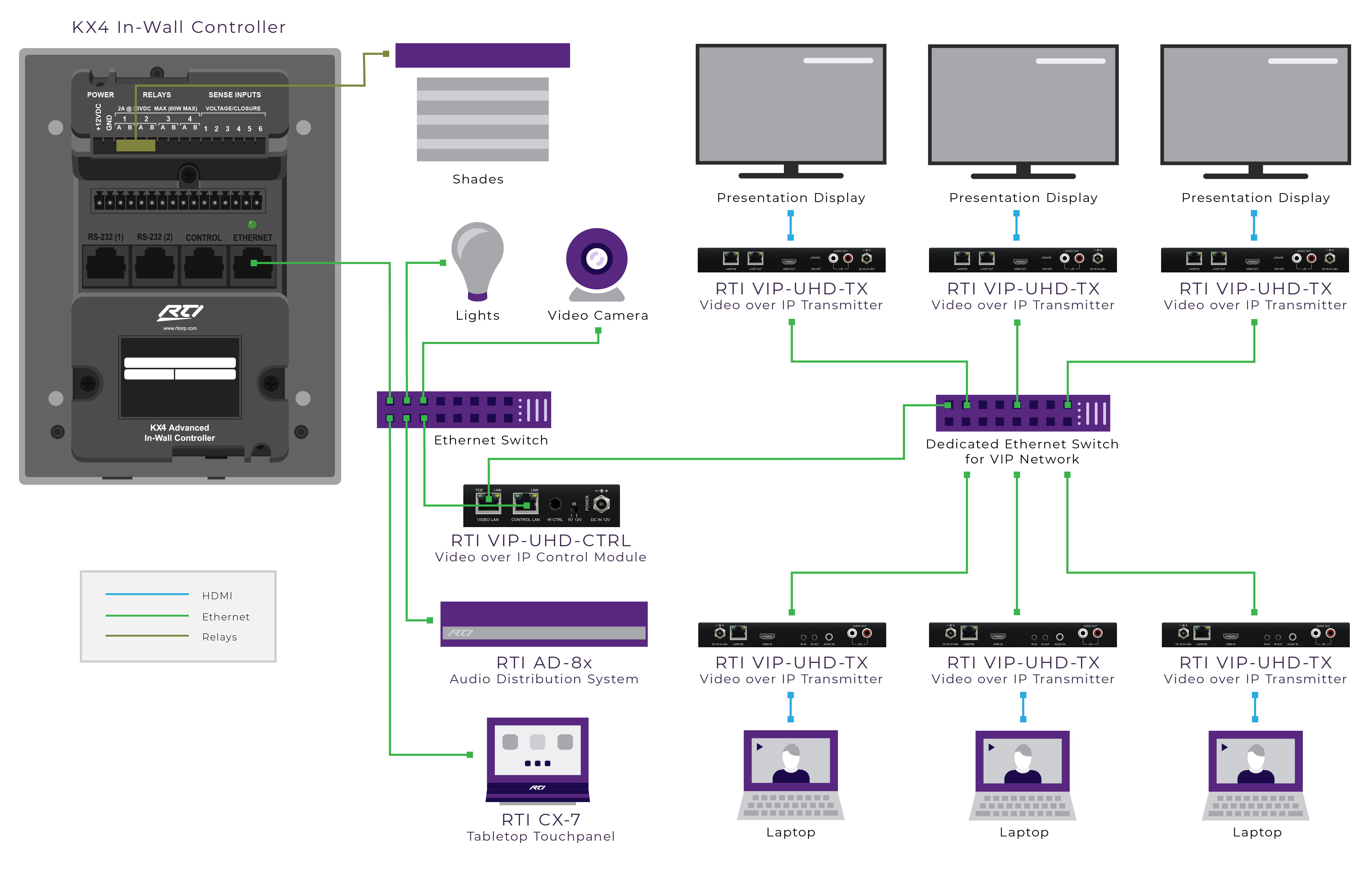

KX4 Conference Room Diagram (PNG)

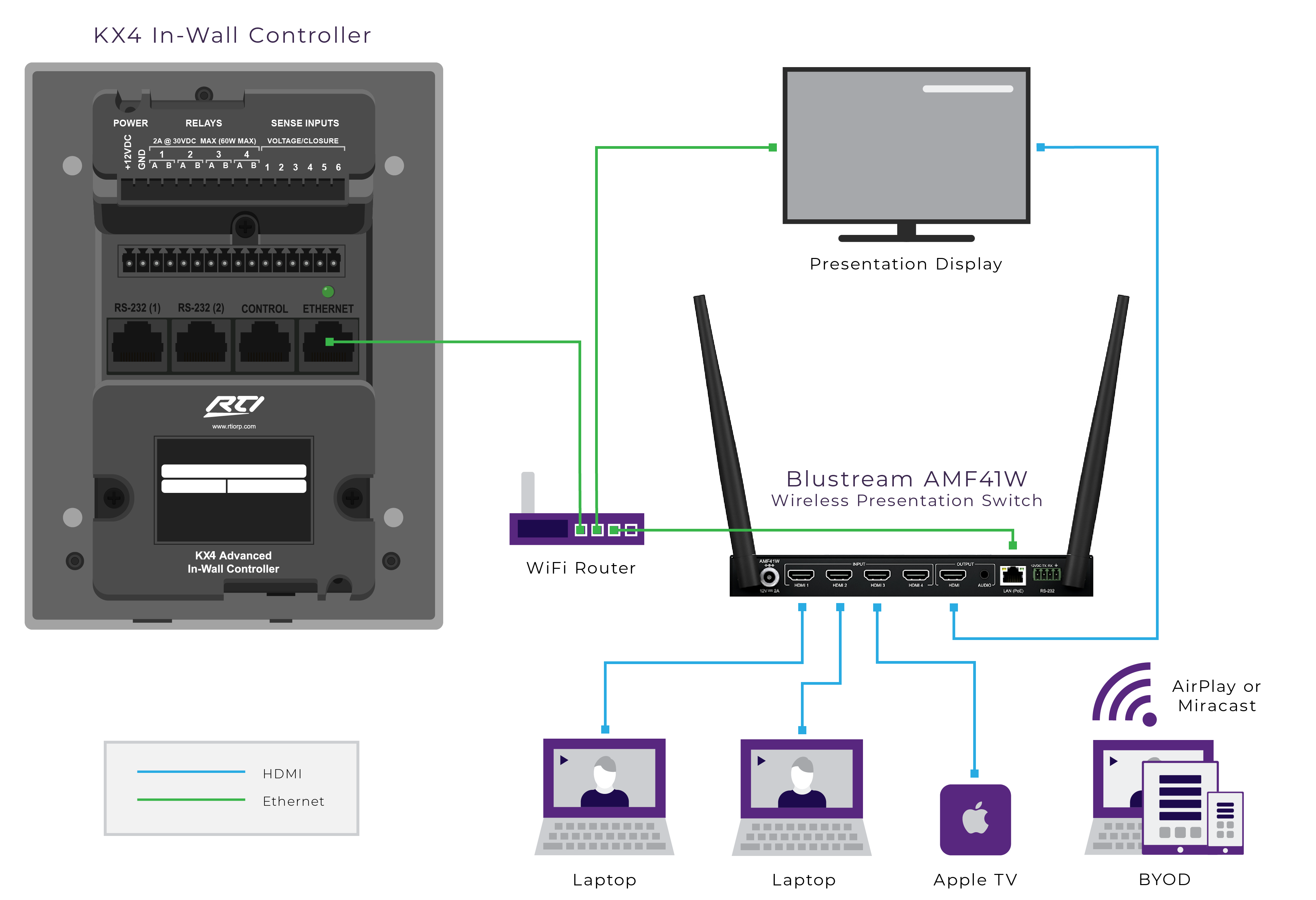

KX4 Huddle Space Diagram (PNG)

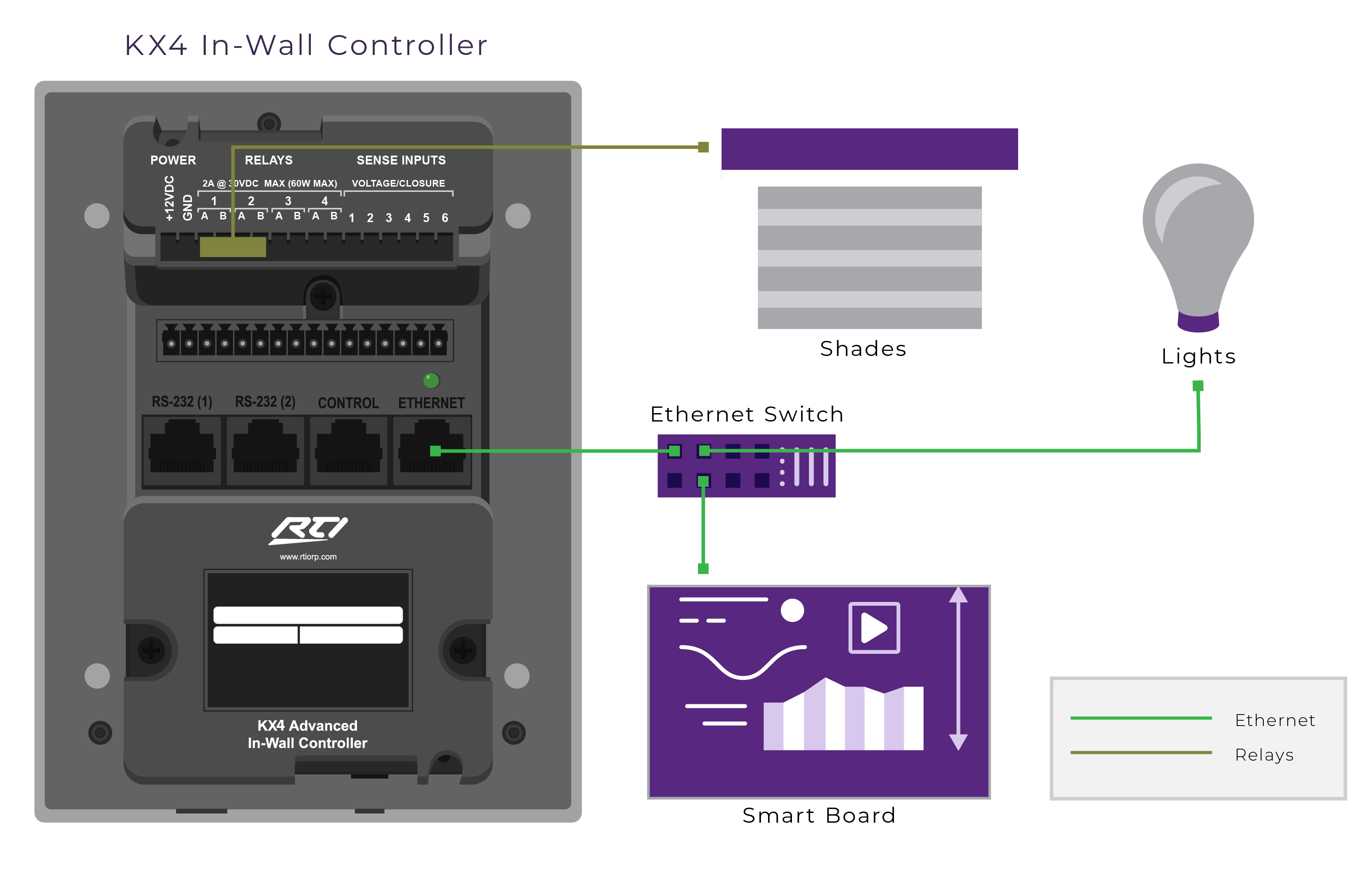

KX4 Simple Classroom Diagram (PNG)
