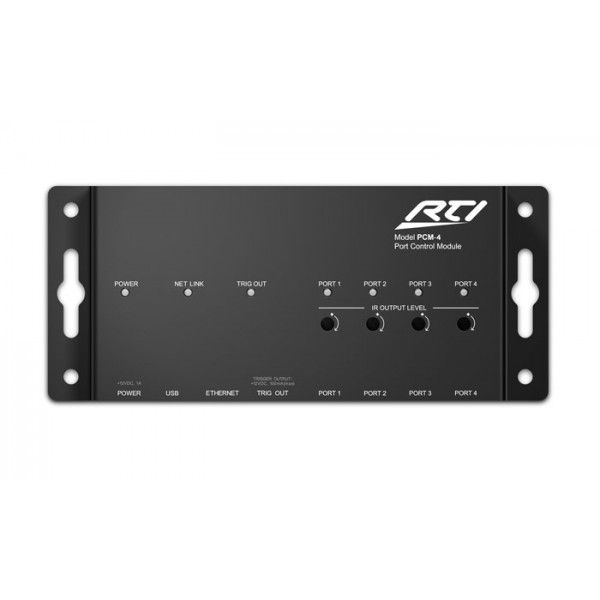

PCM-4 Port Control Module

The PCM-4 expands the output capabilities of an XP series control processor to accommodate larger projects. Four multi-purpose I/O ports and a voltage trigger output (12VDC) provide convenient control anywhere a local area network (LAN) connection exists. Each MPIO port provides IR routing capabilities, one-way RS-232 communication(using CM232) and power sensing (using VPS1/SPS1).

  • Adds four multi-purpose I/O ports to an RTI XP series control processor.
  • Use multiple PCM-4 modules for virtually unlimited control of devices.
  • Communication with XP processor over Ethernet for easy expansion to anywhere a LAN connection exists.
  • Variable IR output power.
  • One 12VDC voltage trigger output.
  • Powered via 12VDC power supply (included) or PoE (using class 3 PoE Ethernet router/injector)
  • Sturdy steel construction.
Power +12VDC, 1A or PoE (Using Class 3 PoE router/injector)
Multi-Purpose Output Ports Four, custom 3.5mm 4-conductor jacks
  Designed for RTI modules as well as industry-standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
Infrared Frequency Transmission Range 15kHz - 460 kHz
Infrared Input Compatible with industry-standard repeaters and receivers
Ethernet Port One, RJ-45, 10/100Base-T
Trigger Output One, 12VDC, 100mA max
Enclosure Formed steel, black powder coating
Mounting Wall-mount or free standing
Dimensions (W x H x D) 6.8”(173mm) x 2.9”(74mm) x 1.2”(31mm)
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 14.3oz (406g)
Warranty Three Years(Parts & Labor)
