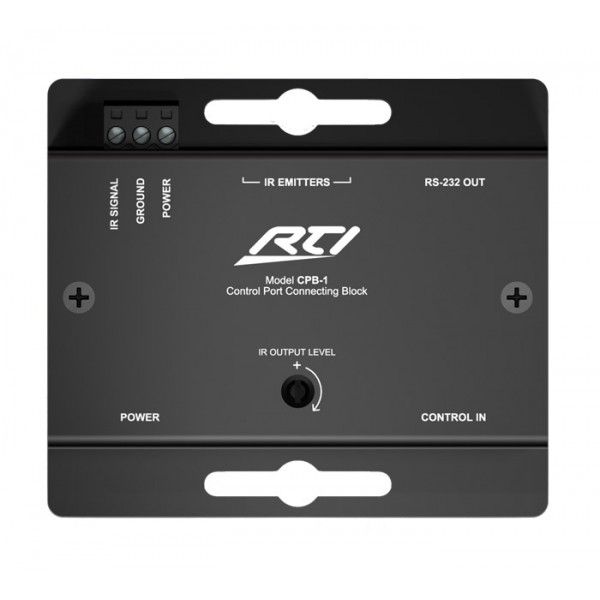

CPB-1 Control Port Connecting Block
The CPB-1 Control Port Connecting Block provides a cost effective solution for one-room installations such as classrooms, that require an in-wall controller and both infrared and RS-232 control of local devices. The CPB-1 provides power to one RTI user interface and has two output ports that allow the connection of up to two single or dual infrared emitters. It also incorporates an RS-232 port for control of devices without the need of an RTI processor.
- Provides power for one in-wall controller
- Two infrared emitter outputs
- Variable IR output power
- Allows RTI in-wall controllers to communicate via one-way RS232 to devices without a processor
- Steel construction
- 12VDC power supply included
| Power | +12-16VDC |
| Number of IR Output Ports | Two |
| Output Ports | 3.5mm jacks |
| Works with industry-standard IR emitters | |
| IR Output Drive | 100mA maximum (per port, adjustable) |
| Infrared Input | Compatible with industry-standard repeaters and receivers |
| RS-232 | RJ45 Connection |
| Includes RJ45 to Db9 adapter | |
| Enclosure | Formed steel, black powder coating |
| Mounting | Wall-mount or free standing |
| Dimensions (W x H x D) | 4.0” (102mm) x 3.5” (89mm) x 1.1” (28mm) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Weight | 8.4oz (238g) |
| Warranty | Three Years (Parts & Labor) |
