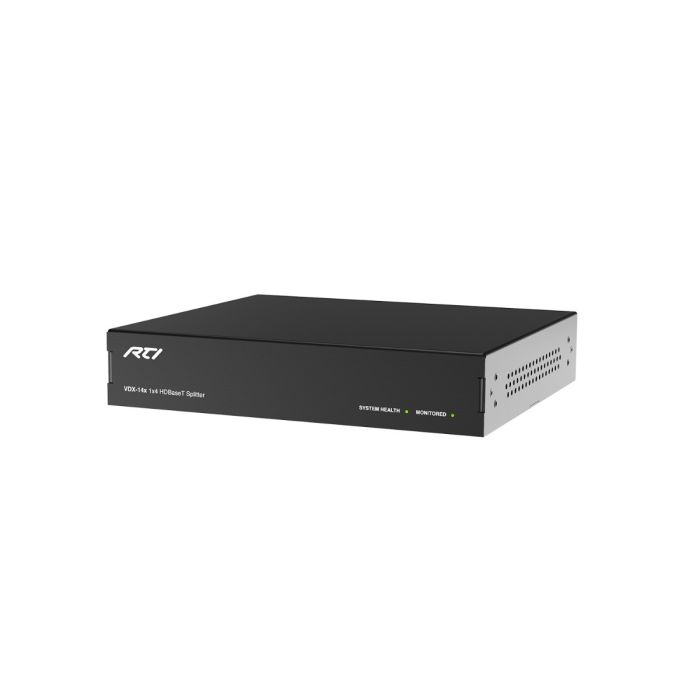

VDX-14x X-Series 1x4 HDBaseT™ Class-B Video Splitter
This product is discontinued.
Perfect for sports bars, lobbies and retail spaces, the VDX-14x HDBaseT Splitter allows a single video source to be simultaneously distributed to four displays. Utilizing the HDBaseT technology, 1080p video content can be delivered up to 230 feet (70m) and 4K video up to 131 feet (40m), to a VHR-1x receiver.
The VDX-14x has web-based configuration, diagnostics and monitoring to ensure reliable installations and quick troubleshooting. The splitter also enables convenient CEC control and IR control of remote displays.
Included in the box:
VDX-14x, Power Supply 48VDC, Rack Mounting Kit
4K UHD
Enjoy stunning picture quality with 4K UHD resolution.
2160p/60Hz/4:2:0
Don't bother with blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.
Long Distance
Don’t worry about limitations HDMI cables have in distance. 4K video can be transmitted over HDBaseT cable up to 131ft/40m and 1080p even farther up to 230ft/70m.
HDCP 2.2
Avoid black screens when connecting an HDMI source using full HDCP 2.2 compliance with the latest anti-piracy algorithms.
PoH
Get rid of extra power supplies for HDBaseT receivers. Remote devices can be powered over the HDBaseT cable.
Diagnostics
Install complex technology as hassle-free as possible. The built-in diagnostics let you check the quality of the cable connection, HDBaseT connectivity and even cable lengths.
- Extends HDMI up to distance of 230ft (70m) for 1080p or 131ft (40 m) for 4K, over single CAT5e cable or greater
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports PoH (Power over HDBaseT) to power compatible receivers
- Compact design and rack mountable
- 1x HDMI input that is distributed to 4x HDBaseT outputs
- Supports 1080p and 4K video and HDCP 2.2 compliant
- Automatic EDID support
- Web based management and remote monitoring support
- One way IR support
- Compatible with VHR-1x HDBaseT Class B Receivers (Sold separately)
| Power Supply | 48V @ 1.3Amps |
| Power Consumption | 60W |
| Mounting | Free standing |
| Dimensions HxWxD | 1.77in(45mm) x 8.66in(220mm) x 7.48in(190mm) |
| Weight | 2.91lbs (1.32kg) |
| Operating Temperature | 0 to +35°C / +32 to +95°F |
| Operating Humidity | 5% to 90% Non-condensing |
| Video Input | One HDMI |
| Video Outputs | Four HDBaseT Class B (RJ45), (PoH), to power VHR-1x - HDBaseT Class B Receivers (sold separately) |
| HDBaseT Transmission Distance | 1080P@60Hz ≤ 230ft (70m) 4K@60Hz 4:2:0 ≤ 131ft (40m) |
| Color Supported | 4K: 8bit, 1080p: 12bit |
| Color Depth |
Up to 36bit (3x 12bit) |
| TMDS Clock Speed | 340Mhz |
| Max. Bandwidth | 10.2Gbps |
| Compliance | HDCP 1.4, HDCP 2.2 |
| IR Control | One IR Out, Return IR, 3.5mm jack |
| CEC Control | Full |
| Monitoring | Real Time Remote Monitoring Portal |
| Warranty | Three Years (Parts & Labor) |
