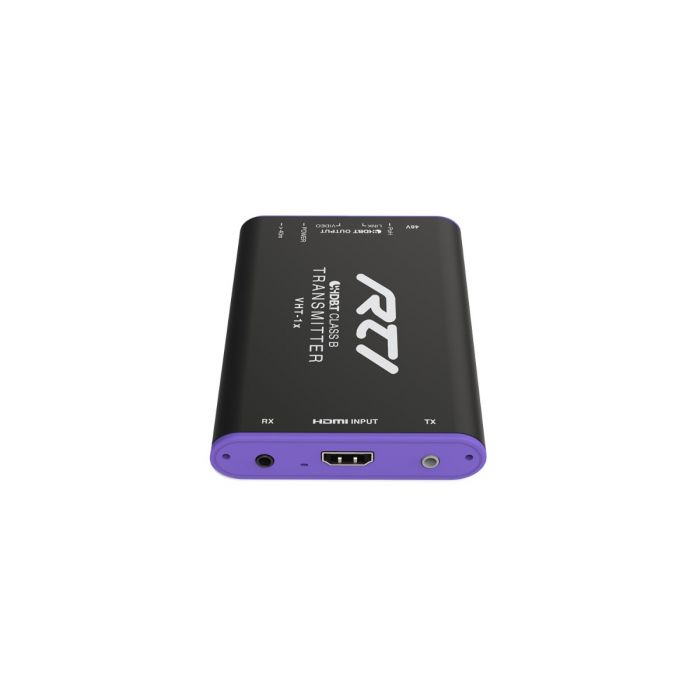

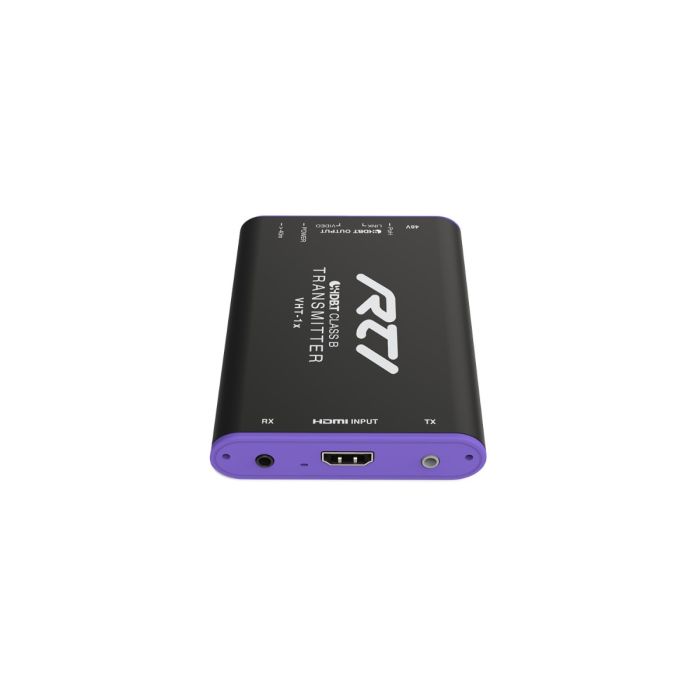

VHT-1x X-Series HDBaseT Class-B Video Transmitter
The VHT-1x HDBaseT Transmitter delivers an HDMI 1080p video signal over a single Cat5e cable or greater, up to 230ft (70m) and a 4K signal up to 131ft (40m) to the VHR-1x HDBaseT Receiver. VHT-1x powers the VHR-1x through the Category cable using PoH (Power over HDbaseT). It also transmits an IR signal through the same Cat cable to control the remote display or projector that's connected to the VHR-1x receiver.
VHT-1x is also available as set with the VHR-1x receiver.
Included in the box:
VHT-1x, Power Supply 48V/0.5A
Enjoy stunning picture quality with 4K UHD resolution.
Don't bother with blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.
Don’t worry about limitations HDMI cables have in distance. 4K video can be transmitted over HDBaseT cable up to 131ft/40m and 1080p even farther up to 230ft/70m.
Avoid black screens when connecting an HDMI source using full HDCP 2.2 compliance with the latest anti-piracy algorithms.
Get rid of extra power supplies for HDBaseT receivers. Remote devices can be powered over the HDBaseT cable.
- Extends HDMI video 1080p up to 230ft (70m) and 4K up to 131ft (40m) over a single Cat5e cable or greater
- HDMI-CEC Bi-Directional Control
- Bi-Directional IR Control
- Power supply included (transmitter)
- PoH Power over HDBaseT (receiver)
- Wall mountable (brackets sold seperately)
- HDCP 2.2 compliant
- Automatic EDID support
- Low Profile
- Full HDMI Audio support
|Power Supply||1 x 48V @ 0.5A|
|Wall Mountable||Yes - brackets sold separately|
|Dimensions HxWxD||0.7in(18mm) x 3.22in(82mm) x 4.52in(115mm)|
|Weight||0.31 lbs (140g)|
|Operating Temperature||0 to +40°C / +32 to +104°F|
|Operating Humidity||5% to 90% Non-condensing|
|Video Input||One HDMI|
|Video Output||One HDBAseT Class B (PoH) (RJ45)|
|HDBaseT Transmission Distance||1080P@60Hz ≤ 230ft (70m)
4K@30Hz ≤ 131ft (40m)
|HDBaseT Recommended Cable||Cat5e or greater|
|Color Supported||4K: 8bit, 1080p: 12bit|
|Color Depth||Up to 36bit (3x 12bit)|
|TMDS Clock Speed||340MHz|
|Compliance||HDCP 1.4 and HDCP 2.2|
|PoH||PoH (Power over HDBaseT) to Receiver|
|IR Control||One IR In, One IR Out, 3.5mm jacks, compatible with industry standard IR repeaters and receivers|
|Warranty||Three Years (Parts & Labor)|
All features and specifications subject to change without notice.
