VSS-51 (VSW-51 & VSW-51R) 5x1 HDBaseT™ Presentation Scaler Switcher Kit

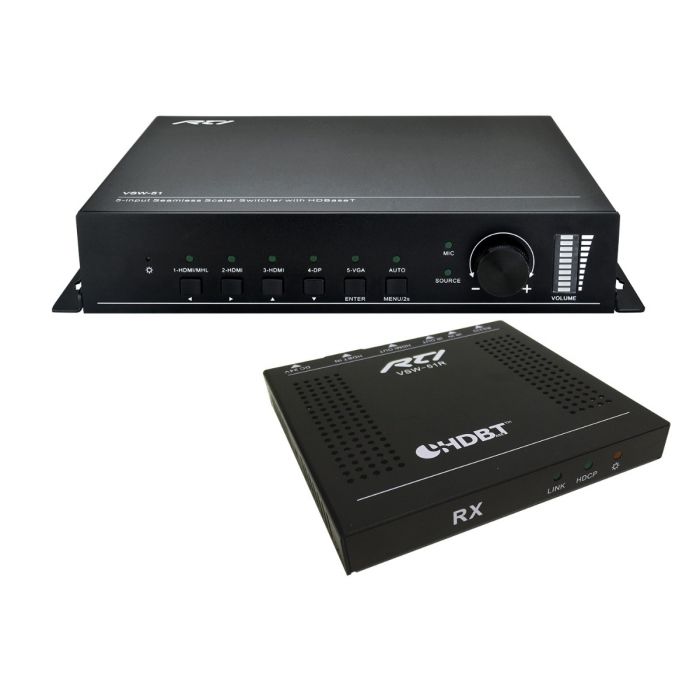

Made up of the VSW-51 5x1 presentation scaler switcher and the VSW-51R HDBaseT receiver, the VSS-51 Presentation Scaler Switcher Kit is the perfect AV solution in conference rooms, classrooms and lecture halls. The VSW-51 combines seamless switching with advanced scaling to provide excellent picture quality regardless of the source. The compact switcher comes with five video inputs, including three HDMI, one display port and one VGA port. Video is output through an HDMI port and a mirrored HDBaseT port for delivery of HD video to an additional display via the included VSW-51R HDBaseT receiver. A Mic input is also available with support for condensor and dynamic microphones, and line level audio.

Included in the box:
VSW-51 Video Switcher, mounting ears (2) with screws for switcher, plastic cushions (4) for switcher, VGA to YPbPr converting cable (1), 3-pole terminal blocks (2), 5-pole terminal block (1), power adaptor 24V DC 2.71A (1), power cord (1)

VSW-51R HDBaseT Receiver, mounting ears (2) with screws for receiver, plastic cushions (4) for receiver
RS-232 cable (1)

Reference Guide

  • Includes VWS-51 High-definition, multi-format 5x1 presentation scaler switcher.
  • Includes VWS-51R HDBaseT Receiver.
  • Built-in scaler upscales input resolution to up to 1920 x 1200 output resolution.
  • Auto-switching, Quick Switch technology.
  • HDMI output.
  • Mirrored HDBaseT output enables long-distance wiring over CAT cable
  • Supports HDBaseT 4-Play with transmission of video, audio, power (PoH), and control signals (IR / RS-232) over a single Cat-5/6 cable.
  • Provides signal switching of up to 5 video sources.
  • Mirrored HDMI and HDBaseT output 230ft (70m) for Full HD video.
  • Supports HDMI, Display Port and VGA sources.
  • Balanced/unbalanced adjustable microphone input with 48V phantom power for condenser, dynamic or wireless microphones.
  • Controllable via front control panel, RS-232 or web interface.

VSW-51 Presentation Scaler Switcher

Power Supply +24 VDC, 2.71A
Mounting Surface / wall mount or free standing
Digital Video Input One HDMI/MHL, Two HDMI, One Display Port
Analog Video Input One VGA, female 15-pin (Supports YPbPr and
Composite Video using supplied adapter cable)
Video Output (mirrored) One HDMI
One HDBaseT with PoH (RJ45), 1920x1200≤229ft (70m)
Output resolution range 1920x1200, 1920x1080, 1600x1200, 1600x900,
1360x768, 1280x800, 1280x720, 1024x768
Compliance HDMI 1.4, HDCP 2.2
Audio Line Input Two Analog Stereo for VGA and Display Port (3.5mm jack)
Microphone Input One balanced/unbalanced (3-pin Phoenix Connector),
switchable Line / 48V Phantom Power
Audio Input Impedance 10kOhms
Audio Output One Dual-Mono Analog Audio(5-pin Phoenix Connector)
Audio Output Impedance 70 Ohms
Frequency Response 20Hz to 20KHz
Stereo Channel Separation >80dB @ 1kHz
Front Panel Control 6 Buttons, 1 Volume Knob, Bargraph and Status LED
RS232 One, Bi-directional (3-pin Phoenix) for VSS-51
or remote device through HDBaseT
IR Control of local or remote device One, 3.5mm jack (IR IN) to IR OUT or
HDBaseT to IR OUT on HDBaseT Receiver
USB Type-A for Firmware Update
Ethernet Port One, 10/100Base-T (RJ45)
Operating Temperature C -10 to +40 degrees F +14 to +104 degrees
Operating Humidity 5% to 95% Non-condensing
Dimensions WxHxD 8.66” (220mm) x 1.73” (44mm) x 2.85” (172.5mm)
Weight 1.76lb (800g)
Warranty Three Years (Parts & Labor)

VSW-51R HDBaseT Receiver (included)

Power Supply via PoH (Power over HDBaseT)
Mounting Surface / wall mount or free standing
Input One HDBaseT with PoH (RJ45)
Output One HDMI
Compliance HDMI 1.4, HDCP 2.2
Control Ports One RS-232 Bi-driectional (3-pin Phoenix)
One IR in (3.5 mm jack), one IR out (3.5 mm jack)

All features and specifications subject to change without notice.
