RKM-1+ In-Wall Audio Distribution Keypad

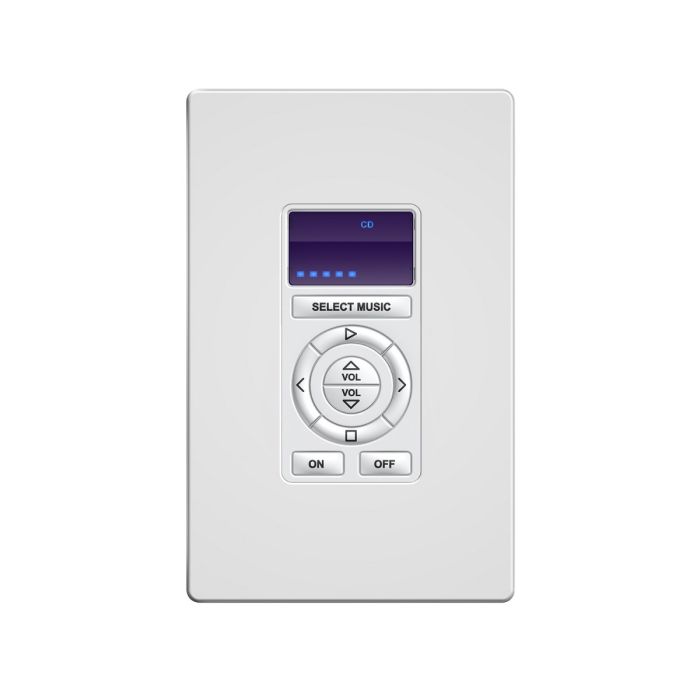

The RKM-1+ is a simple, intuitive keypad designed for multi-room audio control. Eight fully-programmable hard buttons and an open architecture provide the flexibility to control almost any multi-zone receiver or distributed audio system. The RKM-1+ incorporates a customizable LED backlit film which provides two-way feedback of power status, selected source, and volume level when used along with RTI XP processors and supported distributed audio systems. Sized for a single gang electrical box, the RKM-1+ is perfect for flush-mount installations in walls or cabinets and ships with white, black and light almond faceplate and buttons.

*Decora wallplates sold separately
*Feedback requires a compatible two-way RTI control processor.
*Integration Designer software only available to authorized RTI dealers.

Included in the box:
RKM-1+ (white), additional keypad cover, keycap set, mute & power buttons (1 each - black & light almond), window film (1 clear, 1 transparent purple), label sheet, screws (2)

RKM-1+ Features

Blend your flush-mount keypad into the wall and use it for simple control of your home or business.

Nine buttons provide quick access to control functions such as lights, music, audio/video source selection.

2-Way / Status Display
Control intuitively with the buttons of your keypad and get status feedback from controlled devices on the status display such as on/off or arm/disarm status, dimming value of lights, selected audio/video source.

Control devices directly without a control processor by connecting a CPB-1 Control Block.

Control infrared devices directly without a control processor by connecting IR emitters blasters or repeaters.

RTI Control Port
Power your keypad by connecting the control port to a CB-8 Connecting Block and establish two-way control communication with RTI processors and accessories.

Laser Shark
Customize the button labels with text or graphics.

Mount your keypad conveniently in a standard US single gang wall box.

  • Provides feedback from distributed audio systems (ex. AD-4x/AD-8x)and multi-zone receivers via compatible RTI XP series control processor (XP-6/XP-8s).
  • Includes white, black, and light almond faceplate and interchangeable buttons.
  • Use any standard Decora® type faceplate (sold separately).
  • Fits in a single gang outlet box.
  • Eight selectable sources.
  • Backlit volume level indicator.
  • Customizable LED backlit film source indicator.
  • Custom laser-etched LED films may be ordered using LaserShark.
  • Open architecture allows control of virtually anything.
  • IR output port drives up to 1000 feet of wire.
  • Completely customizable and programmable.
  • Optional modules/processors for voltage sensing (to monitor power status of equipment) and two-way control.
  • USB Programming.
Power +9VDC to +16VDC, 350mA max
Backlights Blue LED - Eight sources
Blue LED - Nine volume level indicators
Infrared Output Port

200 mA output
Drives up to 1000ft (300 m) of wire

Total System Memory 64k Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB programming port
Enclosure Formed steel, black powder coat
Front Plate High-impact molded ABS plastic, white
Mounting Mounts into single gang box
Bezel Dimensions Purchased separately (Decora Type)
Dimensions (H x W x D) 4.1 in (104mm) x 1.8in (46mm) x 1.0 in (25mm)
Installation Cut-Out (H x W) 2.8 in (71mm) x 1.8in (46mm)
Total Depth in Wall .75 in (19mm) Plus Cables
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 4 oz (113 g)
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
