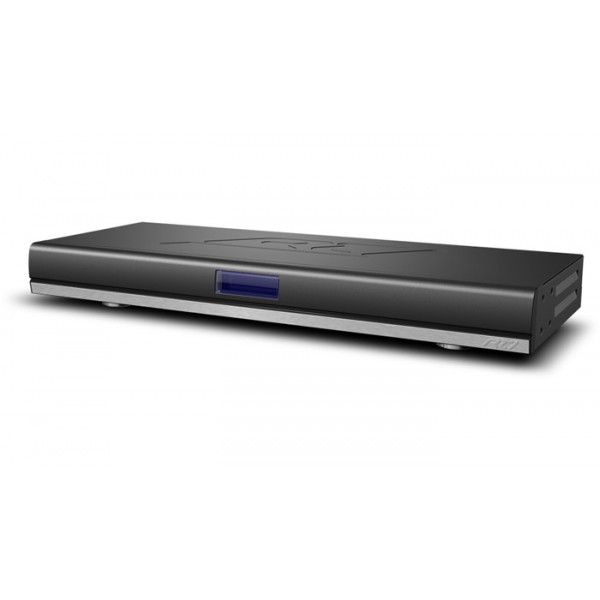

XP-8s Control Processor

This model has been discontinued

The XP-8s is a high-end remote control processor for automating the operation of electronic systems such as A/V, lighting, security and HVAC in homes and office buildings. The second generation of the popular XP-8 advanced control processor, the accelerated XP-8s kicks control into high-gear with even more processing power and additional memory. Increased performance combined with a real time/multitasking operating system, tremendous expandability and compatibility with any RTI controller or app, make it the perfect solution for large-scale and complex projects.

The XP-8s offers an abundance of control interface options such as two-way RS-232, routable IR, Ethernet and relay control. For expanded integration capabilities eight multi-purpose I/O ports support optional modules for voltage sensing and RS-232 control. The XP-8s also features eight programmable relay input/outputs and eight sense inputs (voltage or contact closure). Eight two-way RS-232 ports and an Ethernet port provides even more advanced control with feedback. Additionally, the XP-8s incorporates an astronomical clock, allowing for time based events and timers to trigger commands and macros. With all these interface and control options, the XP-8s provides a nearly unlimited arsenal of control capabilities.

Integration Designer software only available to authorized RTI dealers.

  • Powerful 532MHz i.MX CPU.
  • 128MB of non-volatile Flash memory.
  • Includes 4GB SD Flash memory card.
  • Front panel controls/display (11 Buttons for front panel control).
  • Eight programmable relays can be contact closure or voltage triggers.
  • Eight two-way RS-232 ports.
  • Eight sense inputs can trigger events based on contact closure or voltage.
  • Eight multi-purpose I/O ports.
  • Multi-purpose I/O ports are compatible with industry standard IR emitters, blasters, and repeater systems.
  • Multi-purpose I/O ports support all optional RTI power sensing and communications modules.
  • All output ports incorporate both short-circuit and overload protection.
  • Variable IR output on all ports.
  • Programmed using the Integration Designer® Software.
  • Non-volatile Flash memory stores your system configuration even when power is not present.
  • Field upgradable firmware.
  • USB and Ethernet programming.
  • Input for connection of both 433MHz and 2.4GHz Zigbee® RF modules.
  • Astronomical clock built in.
  • Rack mountable or free standing.

* Integration Designer software only available to authorized RTI dealers

Power +12VDC, 1.0A
Multi-Purpose Output Ports Eight custom 3.5mm 4-conductor jacks
Designed for RTI modules as well as industry-standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
200mA maximum (high IR output port)
Infrared Frequency Range 15 KHz - 460 KHz
Infrared Input Compatible with industry-standard repeaters and receivers
Relays Eight, 3 amps @ 30VDC or 12V/100mA Trigger
Sense Inputs Eight, Digital/Closure
RS232 Ports Eight RJ45 Connections
Ethernet Port 10/100Base-T
USB Ports Two Host, One Programming
Expansion Port RS-485/IR/PWR
RAM Memory 128MB
Flash Memory 128MB
Memory Expansion SD/MM Card Slot, 4GB SD Card included
Display High-contrast STS LCD
Display Size(HxD) .7 in x 2.8 in (18mm x 60mm)
32h x 122w pixels
Backlights Blue LED (Display/Keypad)
Mounting Rack-mount or free standing
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (W x H x D) 17 in (432mm) x 1.7 in (43mm) x 6.4 in (162mm)
Weight 4 lbs (1814g)
Warranty Three Years (Parts & Labor)
