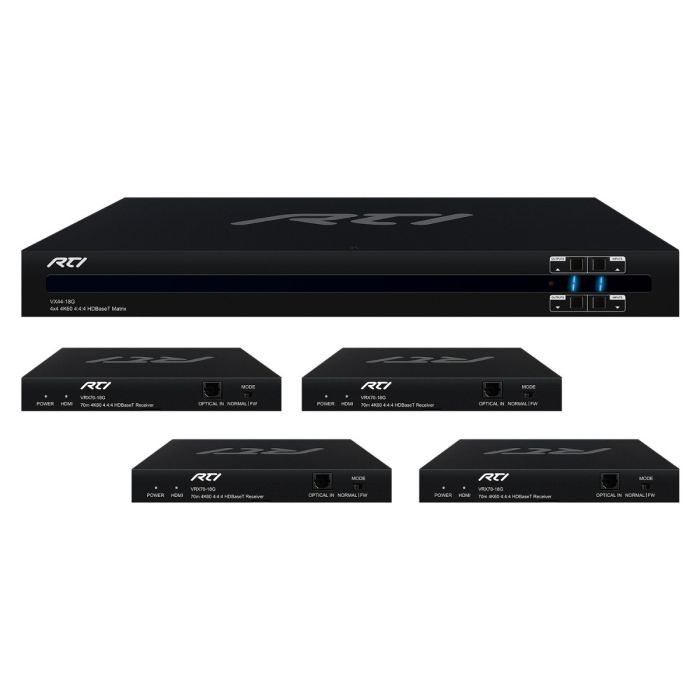

NEW: VX44-18G-Kit 4 x 4 4K HDBaseT™ Matrix Switcher

The RTI 4x4 HDBaseT™ Matrix combines exceptional performance with outstanding value for custom integrators world-wide. The VX44-18G-KIT is an HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 matrix using Color Space Conversion (CSC) technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The Matrix delivers advanced features including simultaneous HDBaseT™/HDMI on output 1, video down-conversion on HDBaseT™ outputs and a web browser interface module for simple configuration of the Matrix. Four (4) receivers are included in this kit.

Included in the box: VX44-18G (1), VRX70-18G (4), Rack Mounting Kit (1), Remote Control (1), IR Emitters (4), IR Receivers (5), RS-232 Control Cable (1), IR Control Cable - 3.5mm-3.5mm Cable (1), Power Cable (1)


VX44-18G-Kit Features



HDBaseT™
No bottleneck with the latest HDBaseT ™ 18Gbps standard that provides the highest possible bandwidth that currently exists.

4K UHD
Enjoy stunning picture quality with 4K UHD resolution.

2160p/60Hz/4:4:4
Eliminate blurred fast motions in action movies. 4K resolution paired with 60Hz refresh rate provides a crystal clear and crisp picture quality.

Long Distance
Go beyond the distance limitations of HDMI cables. Video can be transmitted over a Cat cable up to 229ft/70m.

HDCP 2.2
Be fully compliant with the latest copy protection algorithms to avoid black screens when connecting an HDMI source

Power over HDBaseT™
Get rid of extra power supplies for HDBaseT™ receivers. Remote devices can be powered over the HDBaseT cable.

  • Advanced HDBaseT™ technology enables distribution of video and audio over a single CAT cable
  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • The four (4) HDMI inputs can be independantly routed to four (4) HDBaseT™ outputs with output 1 featuring simultaneous HDMI and HDBaseT™ output
  • Video down-conversion on HDBaseT™ outputs allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 131ft (40m) and 1080p video up to 131ft (70m)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K and all known HDMI audio formats including Dolby TrueHD®, Dolby Atmos®, Dolby Digital Plus® and DTS-HD Master Audio® transmission
  • Control via front panel , IR, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
  • Advanced EDID management and HDCP 2.2 compliant

VX44-18G HDBaseTTM Matrix Switcher

Video Inputs 4 x HDMI Type A, 19-pin, female
Video Outputs 1 x HDMI Type A, 19-pin, female
4 x HDBaseT™ RJ45 connector
HDBaseT™ Transmission Distance 1080p@50/60Hz ≤ 229ft (70m)
3840 x 2160 @50/60Hz 4:4:4 ≤ 131ft (40m)
Max. Bandwidth 18Gbps
TCP/IP Control 1 x RJ45, female
RS-232 Serial Port 1 x 3 Pin Phoenix Connector
IR Input 5 x 3.5mm Stereo Jack
IR Output 4 x 3.5mm Mono Jack
Mounting Rack-Mountable, 1 U rack height, Rack Ears included or free standing
Dimensions WxDxH 17.2in(437mm) x 15.1in(384mm) x 2.1in(53mm)
Dimensions WxDxH
(without feet)
17.2in(437mm) x 14.8in(377mm) x 1.7in(44mm)
Shipping Weight 11lbs (5.0kg)
Operating Temperature +32 to +104°F / 0 to +40°C
Storage Temperature -4 to +140°F / -20 to +60°C
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



VRX70-18G HDBaseTTM Receiver

Video Input 1 x HDBaseT™ RJ45 Connector
Video Output 1 x HDMI Type A, 19-pin, female
Audio Input 1 x Toslink (S/PDIF)
AudioOutput 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analog Audio
HDBaseT™ Transmission Distance 1080p@50/60Hz ≤ 229ft (70m)
3840 x 2160 @50/60Hz 4:4:4 ≤ 131ft (40m)
Max. Bandwidth 18Gbps
TCP/IP Control xxx
RS-232 Serial Port 1 x 3 Pin Phoenix Connector
IR Input 1 x 3.5mm Stereo Jack
IR Output 1 x 3.5mm Mono Jack
Mounting Kit Included
Dimensions WxDxH 5.5in(140mm) x 3.3in(84mm) x 0.7in(18mm)
Dimensions WxDxH
(including connectors)
5.5in(140mm) x 3.5in(88mm) x 0.7in(18mm)
Shipping Weight 1.3lbs (0.6kg)
Operating Temperature +32 to +104°F / 0 to +40°C
Storage Temperature -4 to +140°F / -20 to +60°C
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
