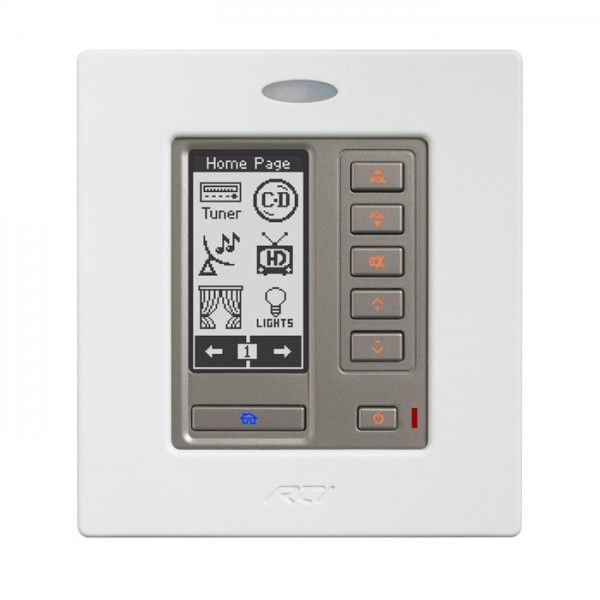

RK2 In-Wall Universal Controller

This model is discontinued

The RK2 is a cost effective touchpanel designed for flush-mount installations in walls or cabinets. It provides a self-contained control system for controlling audio/video components, lights, or other electronic systems in the home. In addition to the seven programmable keypad buttons, the 2.4” high-contrast LCD displays custom text and graphics, providing the flexibility to customize it for each installation. In any economical situation, from simple to complex, the RK2 provides the perfect level of control.

With a 2.4” touchscreen and the perfect selection of keypad buttons, the
RK2 provides elegant and intuitive control of a home’s entertainment,
environment, security, and information systems. When used with the
available RTI accessory devices, the RK2 is capable of infrared routing,
relay control, power sensing, and RS-232 communications for advanced control.

  • Stylish low-profile faceplate with snap-on attachment.
  • Integrated mounting wings for easy installation.
  • Available with gray or black front plate and buttons.
  • Seven assignable/programmable pre-labeled keypad buttons.
  • Easy-to-read LCD to display custom buttons, text, and graphics.
  • Plasma friendly infrared receiver for command pass-through.
  • IR output port drives up to 1000 feet of wire.
  • Completely customizable, programmable and upgradeable.
  • Optional modules for voltage and video sensing (to monitor power status
    of equipment) and RS-232 control.
  • USB Programming.
Power +9VDC to +16VDC, .5A max
Power Management Adjustable backlight brightness/power down time
Touch Panel Display

High-contrast STN LCD Digital matrix
128h x 64w pixels (Touchscreen never need calibrating)

Display Size (H x W) 2.4in x 1.3in (61mm x 33mm)
Backlights White LED (Display), Blue/Amber LED (Keypad)
Infrared Output Port 200 mA output
Drives up to 1000ft (300m) of wire
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Total System Memory 256K Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB programming port
Enclosure High-impact molded ABS plastic, gray/black
Front Plate High-impact molded ABS plastic, white
Mounting Integrated mounting wings, or screws through front bezel
Front Plate Dimensions (HxWxD) 5.1 in (129 mm) x 4.3 in (118 mm) x .6 in (15 mm)
Installation Cut-Out (HxW) 4.5 in (117 mm) x 4.0 in (102 mm)
In-wall Dimensions (H x W x D) 4.5 in (117 mm) x 4.0 in (102 mm) x 1.4 in (35 mm)
Total Depth in Wall 1.4 in (33 mm) plus cables
Weight 10 oz (284g)
Warranty Three Year (Parts & Labor)

All specifications subject to change without notice.
