VXT-LR HDBaseT™ Long Range Extender Set

This product is discontinued.

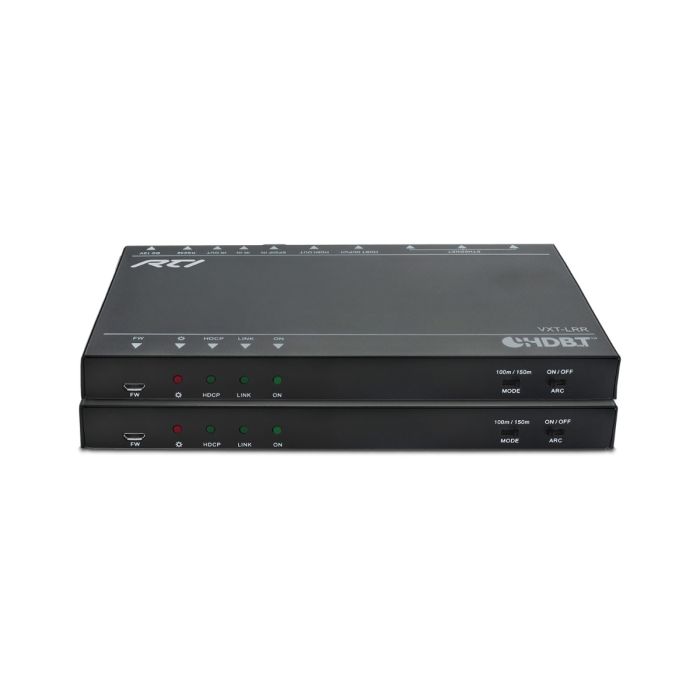

The VXT-LR is a long reach HDBT video extender set which contains a VXT-LRT transmitter and a VXT-LRR receiver. Compliant with HDMI1.4 and HDCP2.2, it is capable of transmitting high-definition video signals up to 4K@60Hz.

Designed with support for HDBT2.0 enables 100m (max) 4K transmission and 150m 1080p transmission as well as RS-232 and IR control signals via single Cat5e/Cat6 cable. The VXT-LR set also boasts 4 Ethernet ports to enable convenient network switch capability. Furthermore, the pair also support CEC and ARC, making the solution even more flexible.

Included in the box:
VXT-LR Transmitter, Transmitter Mounting Ears (2) with Screws, Transmitter Plastic Cushions (4), 3-pole Terminal Block (1), Power Adapter 12V DC 2A (1)

VXT-LR Receiver, Receiver Mounting Ears (2) with Screws, Receiver Plastic Cushions (4), 3-pole Terminal Block (1)

Reference Guide

  • HDBaseT 4K extender set with ARC (Audio Return Channel) support and optical audio return.
  • Extends HDMI video at 1080p resolution up to 492ft (150m) and 4Kx2K up to 328ft (100m).
  • HDCP 2.2 Compliant, supporting HDMI 1.4.
  • Support for high resolution video at 4K, and 1080p 3D.
  • Support of HDBaseT 5-play with transmission of video, audio, Ethernet, control signals, and PoH (Power over HDBaseT).
  • Supports CEC and ARC
  • TOSLINK input on receiver for TV models without ARC-over-HDMI support.
  • Switchable audio de-embed or ARC breakout on Transmitter.
  • Multichannel audio supports PCM, Dolby Digital, DTS, DTS HD.
  • Transmits RS-232 control commands.
  • Ethernet Passthrough from transmitter to receiver, providing a 3-port Ethernet Switch on the receiver
  • Two-way PoH enables either end to be powered for flexible installation options.
  • Ultra thin form factor allows for flexible mounting options e.g., behind a wall-mount TV.


Dimensions WxHxD 7.71in(196mm) x 0.75in(19mm) x 3.93in(100mm)
Weight 0.65 lbs (294g)
Video Input One HDMI
Control Signal Ports One, IR in, 3.5mm jack, One IR out 3.5 mm jack
One, RS-232 bidirectional, 3-pin Phoenix Connector
Ethernet Input One, RJ45
Output (HDBaseT Transmission) One, HDBaseT (PoH) (RJ45)
Audio Output One, Stereo Audio (2 x RCA)
One, Digital Audio (S/PIF)


Dimensions WxHxD 7.71in(196mm) x 0.75in(19mm) x 3.93in(100mm)
Weight 0.74 lbs (335g)
Input (HDBaseT Transmission) One, HDBaseT (PoH) (RJ45)
Audio Input One, Digital Audio (S/PDIF)
ARC Over HDBaseT
Video Output One HDMI
Control Signal Ports One, IR in, 3.5mm jack, One, IR in, 3.5mm jack
One, RS-232 bidirectional, 3-pin Phoenix Connector
Ethernet Output Three, RJ45


Power Supply (one included) 12VDC 2A or via Power over HDBaseT (PoH)
Mounting Surface / Wall mount
Operating Temperature 0 to +40°C / +32 to +104°F
Operating Humidity 5% to 95% Non-condensing
HDBaseT Transmission Distance 1080P ≤ 492ft (150m)
4K ≤ 328ft (100m)
Bandwidth 10.2Gbit/s
EDID Management Built-in EDID data and manual EDID management
Compliance HDMI 1,4, 3D @1080p, HDCP 2.2, HDBaseT 2.0
Supported Video Resolutions 4K: 4096x2160@30Hz, 3840x2160 (30Hz/24Hz/25Hz/50Hz/60Hz)
16:9: 1080P 3D, 1920x1080@60Hz, 1600x900@60Hz, 1366x768@60Hz, 1280x720@60Hz, 1024x576@60Hz
16:10: 1920x1200@60Hz, 1680x1050@60Hz, 1440x900@60Hz, 1360x768@60Hz, 1280x800@60Hz
4:3: 1600x1200@60Hz, 1400x1050@60Hz, 1280x1204@60Hz, 1024x768@60Hz, 800x600@60Hz, 640x480@60Hz
Audio Formats PCM, Dolby Digital, DTS, DTS HD
Warranty Three Years (Parts & Labor)

All features and specifications subject to change without notice.
