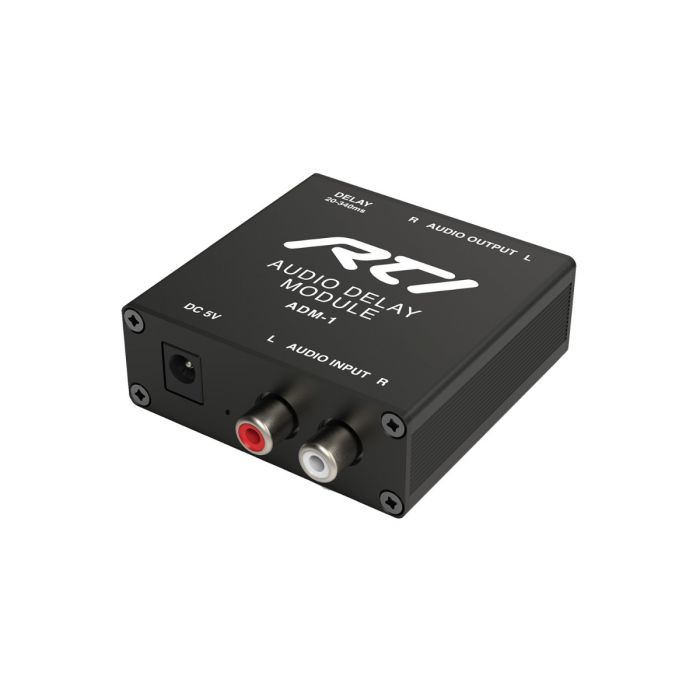

ADM-1 Audio Delay Module

This product has been discontinued.

The ADM-1 Audio Delay Module is the ideal problem solver to lip-sync issues between audio output devices. For instance, when a television’s internal speakers and ceiling speakers wired to an external audio system are used at the same time, there may be a noticeable delay due to differences in audio processing speed. The ADM-1 makes it easy to compensate for this delay and get the sound back in sync.

Included in the box:
ADM-1, power supply 5VDC/2Amp

  • The perfect solution to lip-sync problems.
  • Easily adjust delay increments using 16-way selector dial.
  • Delay the audio from 20-340 ms.
  • Compact design.
  • Simple L/R RCA input and output connections.
Power Supply 5v DC / 10W power supply (CE/FCC certified)
Power Consumption Max 5 Watts
Audio Input Zones 1
Stereo L/R Inputs 1
Audio Output Zones 1
Stereo L/R Outputs 1
Dimensions WxHxD 0.9 in (2.4 cm) x 3.2 in (8 cm) x 2.5 in (6.4 cm)
Weight  0.1 lb (0.10 kg)
Operating Temperature 0 to +35°C (32 to +95°F)
Operating Humidity 5% to 90% Non-condensing
Lip Sync Delay Up to 340ms
Supported Audio Formats Input: 2ch Stereo / Analog line level
Warranty Three Years (Parts & Labor)


All features and specifications are subject to change without notice.
