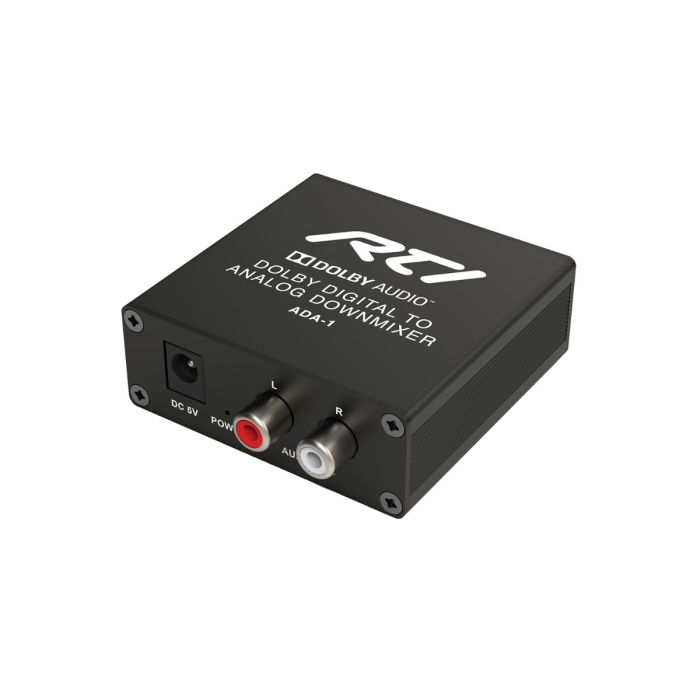

ADA-1 Dolby Digital to Analog Downmixer
The ADA-1 makes it simple to deliver audio from devices such as Blu-ray players, media streamers or TV’s to an analog sound system. Capable of decoding audio sources with S/PDIF coaxial or TOSLINK optical outputs, the ADA-1 downmixes the digital signals to standard stereo audio. Stereo output signals (L/R) can be wired to an external device such as an amplifier, audio distribution system, or powered speakers via standard RCA jacks.
Included in the box:
ADA-1, power supply 5VDC/2Amp
- Downmixes connected digital sources to standard analog stereo (L/R) audio.
- Includes S/PDIF coaxial and TOSLINK optical inputs.
- Audio outputs utilize standard RCA jacks.
- Selectable input between coaxial and optical connections.
|Power Supply||5v DC / 10W power supply (CE/FCC certified)|
|Power Consumption||Max 5 Watts|
|Audio Input||One Optical Input (TOSLINK)
One Coaxial Input (S/PDIF)
|Audio Output||One Stereo Output (RCA Left/Right)|
|Supported Audio||Input: 5.1 Dolby Digital / 2ch Stereo PCM|
|Operating Temperature||0 to +35°C (32 to +95°F)|
|Operating Humidity||5% to 90% Non-condensing|
|Dimensions WxHxD||0.9 in (2.4 cm) x 3.2 in (8 cm) x 2.5 in (6.4 cm)|
|Warranty||Three Years (Parts & Labor)|
All features and specifications are subject to change without notice.
