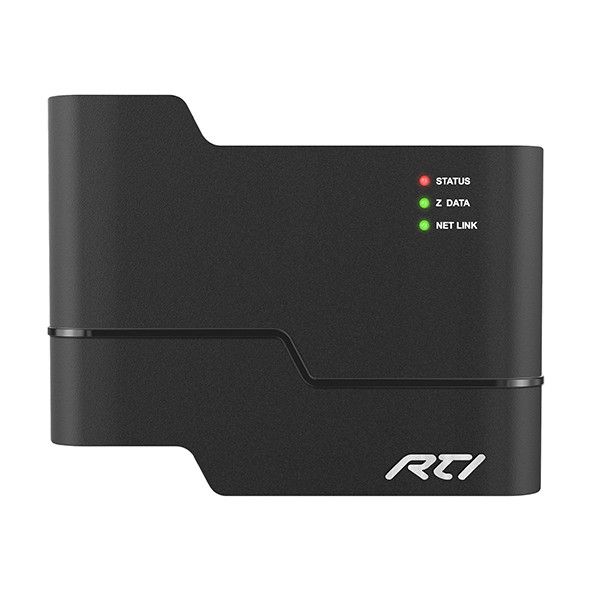

ZW-9 Z-Wave® Interface Module

The US version of the ZW-9 has been discontinued and we are no longer accepting orders. Your RTI distributor may have inventory. We also recommend the Ezlo Plus Smart Home Hub for Z-Wave connectivity. See the Ezlo Plus brochure for details)

The ZW-9 Z-Wave interface uses the Z-Wave wireless protocol to provide the communication link between RTI systems and lighting, door locks, thermostats, and other Z-Wave-enabled devices. Eliminating the need for a different app for each device, the ZW-9 combined with an RTI XP central processor provides users with unified control and monitoring over all devices directly on their RTI user interface.

* RTI Z-Wave devices are not available in all areas.

Covered by one or more claims of patents at

The ZW-9 Z-Wave interface enables simple and cost-effective monitoring and control of Z-Wave-enabled systems and devices via an RTI control system.

RTI Z-Wave Lighting Solutions

RTI Z-Wave® lighting control solutions provide easy management of the lighting in and around a home. Enjoy the convenience of intuitive control from an in-wall smart switch, RTI user interface, smart phone, tablet or PC. Experience the added security and energy savings of automated lighting and event-based control that requires no interaction at all.


  • Many models available to meet installation and load requirements.
  • Wireless control requires a compatible two-way RTI control processor and Z-Wave interface module.
  • RTI Z-Wave devices are not available in all areas
  • Integration Designer software only available to authorized RTI dealers.
  • Wireless control and monitoring of Z-Wave lighting devices via the RTI control system.
  • Certified as a Z-Wave Plus product, ensuring seamless interoperability with Z-Wave devices.
  • Compatible with a broad range of Z-Wave certified electronics including door locks, security, devices, window shades, thermostats and more.
    Expandable and scalable system allows control of more than 200 devices.
  • Programmed using RTI Integration Designer software.
  • Powered via PoE (Power over Ethernet) or included power supply.
Power 5VDC/2A power supply,
PoE (Power Over Ethernet) Using Class 3 PoE Ethernet router/injector
RTI Communication RJ45 Port, Via Ethernet Network
RF Communication Z-Wave Plus Wireless RF
908.4MHz (North American Region)
RF Frequency Range Up to 100ft (30m)
Enclosure High-impact molded ABS plastic, black
Operating Humidity 5% to 95% Non-condensing
Operating Temperature +32°F to +122°F (0°C to +50°C)
Dimensions (W x H x D) 5.167" (131mm) x 4.0" (102mm) x 1.12" (28mm)
Weight 4.1oz (116 g)
Warranty Three Years (Parts & Labor)
