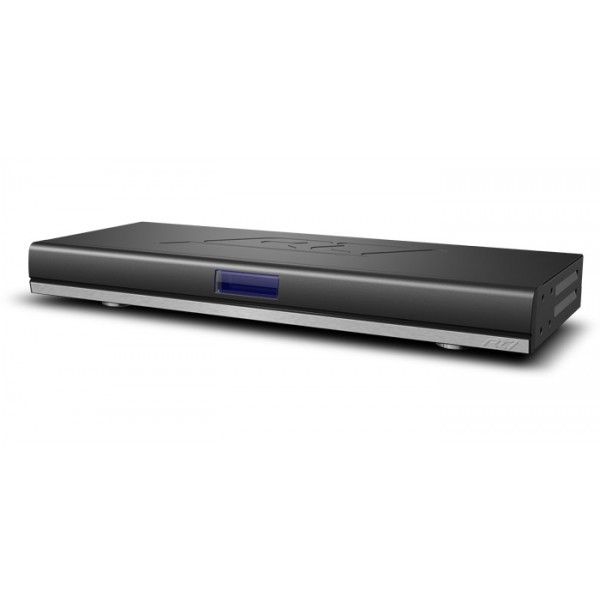

XP-8 Control Processor

This model has been discontinued

The XP-8 is a high-end remote control processor for automating the operation of
electronic systems in homes and office buildings. The combination of a blazing
fast MPU, real-time/multitasking operating system, and tremendous expandability
make the XP-8 the perfect solution for large-scale and complex projects.

Like other RTI processors, the XP-8 has been designed to interface seamlessly
with all RTI remote controls and touchpanels. In addition to an abundance of basic control ports such as infrared, contact closures, and power sensors - the XP-8 provides advanced control interface options such as two-way RS-232, USB, and Ethernet. An internet connection to the XP-8 allows convenient services such as off-site control (Utilizing Virtual Panel technology).

  • Powerful 32-bit, 200MHz XScale® processor.
  • 32MByte of non-volatile Flash memory.
  • Front panel controls/display (11 Buttons for Front panel Control).
  • Two USB ports.
  • Eight multi-purpose I/O ports.
  • Eight programmable relay outputs.
  • Eight two-way RS-232 ports.
  • Eight sense inputs.
  • I/O ports are compatible with industry-standard IR emitters, blasters and
    repeater systems.
  • All output ports incorporate both short-circuit and overload protection.
  • Variable IR output on all ports.
  • I/O ports support all optional RTI power sensing and communications
    modules.
  • Programmed using the Integration Designer® Software*.
  • Non-volatile Flash memory stores your system configuration even when
    power is not present.
  • Field upgradeable firmware.
  • USB and Ethernet programming.
  • Input for connection of multiple RF receiver modules.
  • RS-485 communications port for future expansion.
  • System clock built in.
  • Rack mountable or free standing.

* Integration Designer software only available to authorized RTI dealers.

Power +12VDC, 1.25A
Multi-Purpose Output Ports Eight custom 3.5mm 4-conductor jacks
Designed for RTI modules as well as industry-standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
200mA maximum (high IR output port)
Infrared Frequency Range 15 KHz - 460 KHz
Infrared Input Compatible with industry-standard repeaters and receivers
Relays Eight, 3 amps @ 30VDC or 12V/100mA Trigger
Sense Inputs Eight, Analog/Digital/Closure
RS232 Ports Eight RJ45 Connections
Ethernet Port 10/100Base-T
USB Ports Two Host, One Programming
Expansion Port RS-485/IR/PWR
Memory Expansion SD/MM Card Slot
Display High-contrast STS LCD
Display Size(HxD) .7 in x 2.8 in (18mm x 60mm)
32h x 122w pixels
Backlights Blue LED (Display/Keypad)
Mounting Rack-mount or free standing
Dimensions (W x H x D) 17 in (432mm) x 1.7 in (43mm) x 6.4 in (162mm)
Weight 4 lbs (1814g)
Warranty Three Year (Parts & Labor)
