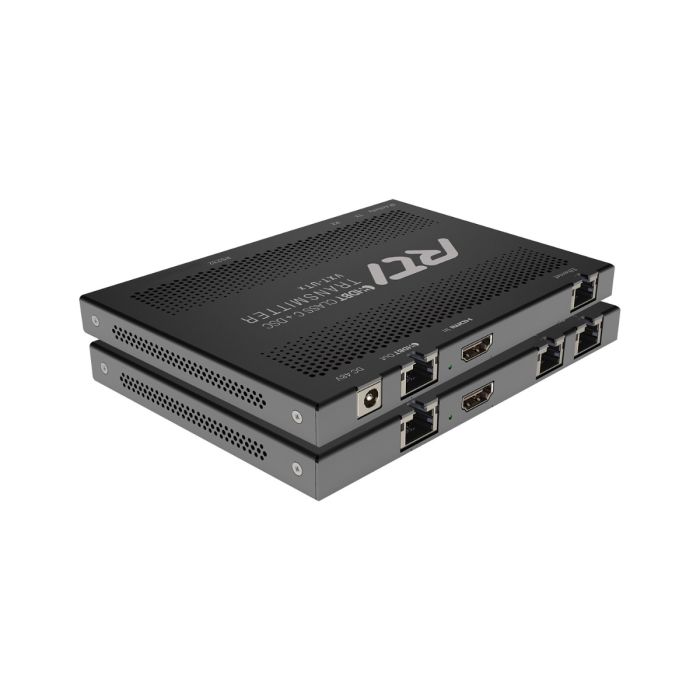

VXT-Ux X-Series HDBaseT™ Class-C Video Extender Set

VXT-UTx Transmitter
The VXT-UTx HDBaseT Transmitter delivers visually lossless HDMI 1080p video signal over a single Cat5e/6/7 cable up to 492ft (150m) and a 4K signal up to 328ft (100m) to the VXT-URx HDBaseT Receiver using Display Stream Compression. The VXT-UTx powers the VXT-URx through the Category cable using PoH (Power over HDbaseT). It also transmits an IR or RS232 signal through the same cable to control the remote display or projector.

VXR-UTx Receiver
The VXT-URx HDBaseT Receiver receives visually lossless HDMI video signal over a single Cat5e/6/7 cable from a VXT-UTx HDBaseT Transmitter or from a VHU-8x HDBaseT Matrix Switcher using Display Stream Compression. The VXT-URx is powered through the connected Category cable using PoH (Power over HDbaseT). It also receives an IR or RS232 control signal through the same cable and delivers it to the connected display or projector.

Included in the box:
VXT-URx HDBaseT Receiver, VXT-UTx HDBaseT Transmitter, Infrared Blaster Cable Pack (TX/RX Pack), Power Supply 48V/0.5A

VXT-Ux Features

Enjoy pristine, high-contrast pictures with 4K UHD resolution and High Dynamic Range.

The pinnacle of video distribution quality ensures natural colors with no color subsampling and 60Hz refresh rate for blur-free fast motions.

Long Distance
Don’t worry about strict limitations in distance. 4K video can be transmitted over HDBaseT cable up to 328ft/100m and 1080p even farther up to 492ft/150m.

18 Gbps
No bottleneck for the latest 60Hz HDR-10 and Dolby Vision content that requires the highest possible bandwidth that currently exists.

HDCP 2.2
Avoid black screens when connecting an HDMI source using full HDCP 2.2 compliance with the latest anti-piracy algorithms.

Display Stream Compression
Don’t make compromises in picture quality. The DSC compression algorithm doesn’t strip out any color information or pixels and brings your video visually lossless to the display.

Get rid of extra power supplies for HDBaseT receivers. Remote devices can be powered over the HDBaseT cable.

Watch TV or movies in 5.1 Dolby or DTS audio by sending the TV audio an AVR located up to 328ft/100m away.

  • Extends HDMI video 1080p up to 492ft (150m) and 4K up to 328ft (100m) over a single Cat5e cable or greater
  • Supports HDR and 4K@60Hz 4:4:4 and 1080p@60Hz, 3D
  • HDMI-CEC Bi-Directional Control
  • Bi-Directional IR Control
  • Serial RS232 via 3.5mm
  • Power supply included (transmitter)
  • PoH Power over HDBaseT (receiver)
  • HDCP 2.2 compliant
  • Automatic EDID support
  • Low Profile
  • Full HDMI Audio support
  • ARC (Audio Return Channel), enabling audio from the TV to be returned to the remote location with just the HDMI cable
  • Ethernet 10/100 Connection
  • Audio return via Analogue or Toslink (Mini-toslink adapter not included)
  • DSC support - for HDR and 4K/60 4:4:4 over HDBaseT link
  • Set Includes: VXT-UTx Transmitter | VXT-URx PoH Receiver | Power Supply | Infrared Blaster Cable Pack | Installation Guide
Power Supply 1 x 48V @ 0.5A (Transmitter only), Receiver is powered via Power over HDBaseT (PoH) from Transmitter
Power Consumption Transmitter: 7.3W / Receiver: 8W
Dimensions HxWxD 0.51in(13mm) x 5.82in(148mm) x 4.13in(105mm)
Weight 0.35 lbs (160g) each
Operating Temperature 0 to +35°C / +32 to +95°F
Operating Humidity 5% to 90% Non-condensing
Transmitter Video Input One HDMI
Transmitter Input One HDBAseT Class C + DSC (PoH) (RJ45)
Receiver Input One HDBAseT Class C + DSC (PoH) (RJ45)
Receiver Video Output One HDMI
HDBaseT Transmission Distance 1080P@60Hz ≤ 492ft (150m)
4K@60Hz ≤ 328ft (100m)
ARC (Audio Return Channel) Yes
DSC (Display Stream Compression) Yes
Ethernet Pass-through Yes
HDBaseT Recommended Cable Cat5e or greater
Color Supported 4K: 12bit, 1080p: 12bit
Color Depth Up to 36bit (3x 12bit)
TMDS Clock Speed 600MHz
Max. Bandwidth 18Gbps
Compliance HDCP 1.4 and HDCP 2.2
PoH PoH (Power over HDBaseT) Transmitter to Receiver
IR Control One IR In, One IR Out, 3.5mm jacks
RS-232 Control One Bi-Directional, 3.5mm jack
CEC Control Full
Warranty Three Years (Parts & Labor)
