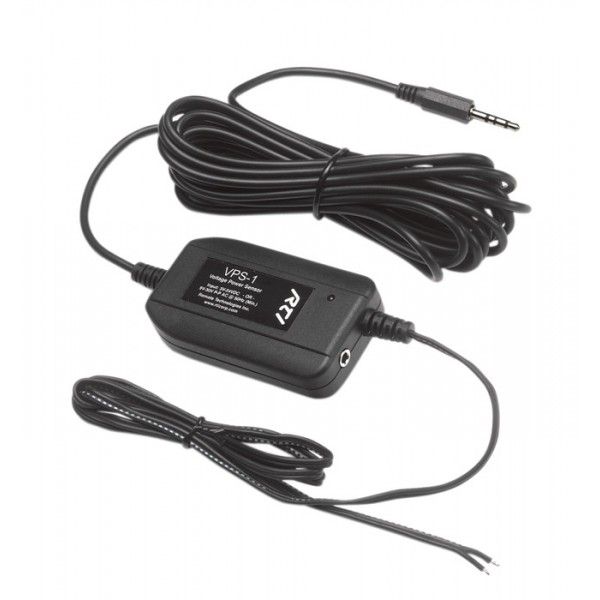

VPS-1 Voltage Power Sensor

The VPS-1 Voltage Power Sensor monitors the on and off status of almost any electronic component. It is used to provide power status information to RTI control system such as the XP-6s control processor. When the attached component is powered on, the VPS-1 detects the voltage supplied from the component, an attached power supply, or a third-party power sensor, and sends a signal to the System Interface Module.

  • Connects to the MPIO (Multi-Purpose I/O) ports of an RTI control processor or expansion modules (ie. PCM-4 Port Control Module)
  • Detects the on/off status of almost any component
  • No power supply required - Power is supplied by the output ports
  • Power sensing circuit is housed in a compact, rugged ABS enclosure
  • LED light indicates the current power status
  • Control cable can be extended up to 500 feet
Output Compatible with industry standard IR emitters (Xantech®or compatible)
IR Output Drive 100mA maximum
Input Requirements 3V to 24V DC -or-
9V to 30V P-P AC (50Hz min)
Maximum Current Consumption 0.5mA
Control Cable Length 12 feet (3.7 m)
Voltage Sensor Cable Length 3 feet (.9 m)
Dimensions (W x H x D) 1.75" (44mm) x 3.0" (76mm) x 0.7" (18mm)
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Warranty Three Years (Parts & Labor)
