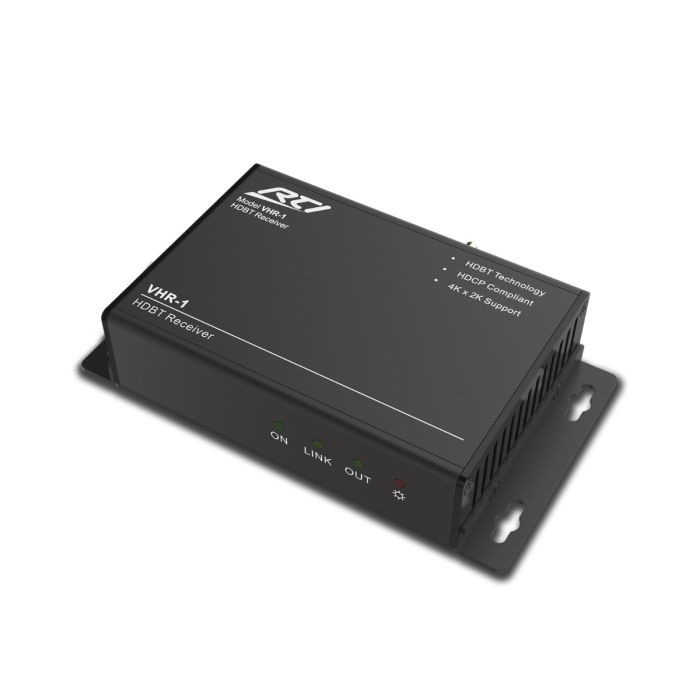

VHR-1 HDBaseT™ Video Receiver

The VHR-1 HDBaseT Video Receiver receives an HDMI video signal over Cat5e/6 from a VHT-1 HDBaseT Video Transmitter or from a VHD-4/8 HDBaseT Video Matrix Switch. VHR-1 can be powered through the connected Cat cable using PoH (Power over HDbaseT). It also receives an IR or RS-232 control signal through the same Cat cable and delivers it to the connected display or projector.

Included in the box:
VHR-1, Mounting Wings (2) with screws, Plastic Feet (4)

  • HDBaseT receiver for VHD-4, VHD-8 and VHT-1.
  • Support for high resolution video at 4K, 3D and 1080p.
  • HDCP 2.2 Compliant and DVI compatible, supporting HDMI 1.4a & DVI1.0.
  • Utilizes HDBaseT technology for HDMI video, IR & RS-232 control and power over Cat5e/6 cable.
  • Transmits HDMI video at 1080p resolution up to 230ft (70m) and 4Kx2K up to 115ft (35m).
  • Powered via PoH (Power over HDBaseT).
  • One infrared emitter output for control of remote devices.
  • One RS232 output for serial control of remote devices.
Power Supply Powered via PoH (Power over HDBaseT)
Dimensions HxWxD 1.18in(30mm) x 4.92in(125mm) x 3.03in(77mm)
Weight 0.54 lbs (0.244kg)
Operating Temperature 0 to +40°C / +32 to +104°6F
Operating Humidity 5% to 95% Non-condensing
Video Input One HDBaseT (PoH) (RJ45)
Video Output One HDMI
Output Level T.M.D.S. 2.9V~3.3V
Output Impedance 100Ω (Differential)
Gain 0dB
Bandwidth 10.2Gbit/s
Video Signal HDMI (or DVI-D)
Resolution Range Up to 4K@30Hz
HDBaseT Transmission Distance 1080P@60Hz ≤ 230ft (70m)
4K@30Hz ≤ 115ft (35m)
EDID Management Built-in EDID data and manual EDID management
HDCP Supports up to HDCP 2.2
IR Out One, 3.5mm jack, compatible with
industry standard IR repeaters and receivers
Serial (RS-232) Port One, Bi-directional RJ45
Warranty Three Years (Parts & Labor)

All features and specifications subject to change without notice.
