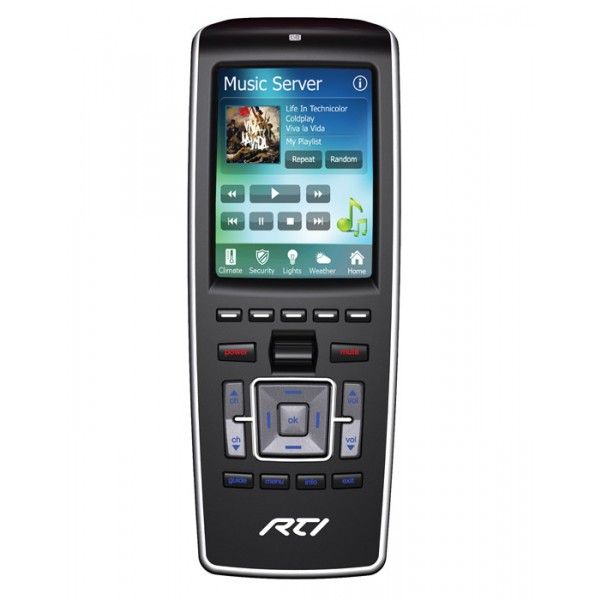

T3-V+ Remote Control

This model has been discontinued.

The T3-V+ is a powerhouse controller wrapped in a stylish, ergonomic design that redefines the role of the remote. Building on the original award-winning T3 concept, updated features such as revolutionary dual RF transmission plus wireless Ethernet provide the user with amazing control options.

Designed to satisfy the most discriminating user, the T3-V+ delights the eye with custom graphics and web pages that come to life in sizzling color and clarity with a full VGA resolution, high contrast LCD display. Even with all this, “easy to use” is still the goal, and an assortment of hard buttons provides tactile feel and control of commonly used functions, including a three-way rocker switch for scrolling list navigation.

Extending control capabilities to new heights, the T3-V+ uses a cutting-edge dual RF platform, insuring installation flexibility and reliability. When used with compatible RTI control devices, the T3-V+ can utilize both 433MHz RF for one-way control and 2.4GHz Zigbee® for bi-directional communication from electronics such as music servers, lighting and even web-based RSS feeds for convenient weather updates, etc. Other key features include the integrated 802.11b/g wireless Ethernet and a built-in web browser allow the user to access web pages and IP video from security cameras, etc. All of these features can be enjoyed over longer periods of time thanks to the the large capacity rechargable battery supplied with the T3-V+.

*Integration Designer software only available to authorized RTI dealers.

  • Dual RF transmission capability uses 433MHz and 2.4GHz (utilizing Zigbee® technology).
  • Integrated 802.11b/g wireless Ethernet with improved performance.
  • Two-way feedback from compatible devices using 2.4GHz (Zigbee®) and RTI control accessories.
  • Blazing fast 533MHz CPU.
  • Full VGA resolution (480x640) color TFT LCD to display custom buttons, text, graphics and animations.
  • Integrated high-resolution touchscreen.
  • Tilt switch can automatically turn on the backlight when picked up.
  • Twenty-four programmable hard buttons, including five buttons with replaceable keycaps that can be custom engraved.
  • Three-way rocker switch for scrolling list navigation.
  • Ergonomic design permits effortless, one-handed operation.
  • Tilt switch can automatically turn on the backlight when picked up.
  • Extremely bright, backlit display and keypad.
  • Transmits IR and RF (or both - on a single button press!).
  • System includes a Lithium-Ion battery and docking station.
  • Completely customizable and programmable.
  • Extremely wide IR transmitting frequency range.
  • Optional ‘Voltage’ and ‘Video’ sensing modules to monitor power status of equipment when used with RTI processors.
  • Capable of two-way RS-232 control when used with certain RTI processors.
  • Non-volatile Flash memory stores your system configuration even when
    power is not present.
  • Field upgradable firmware.
  • Fast USB 2.0 Programming.
Power 3.6 VDC, 1700 mAh Lithium-Polymer Battery Pack
Power Management Automatic On/Off (tilt switch)
Infrared Control Range 30 feet (9.1 meters) @ 60 degrees
Infrared Frequency Range 15 KHz - 460 KHz
Radio Frequency Control Range

Up to 100 feet (30.5 meters)
(with optional System Interfaces/Processors)

Radio Frequency 802.15.4 @ 2.4 GHz (ZigBee® Wireless Networking) & 433 MHz
Wireless Ethernet 802.11 @ 2.4Ghz
Display High-brightness color TFT LCD
Full VGA (480x640 pixels) with 65k colors
Integrated high-resolution touchscreen
Display Size (H x W) 3.5 in (89mm) diagonal
Backlight White LED (Display), Blue/Red/White LED (Keypad)
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Total System Memory 128M Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB 2.0 programming port
Enclosure High-impact molded ABS plastic
Dimensions (H x W x D) 7.6 in (193mm) x 3.1 in (79mm) x 1.1 in (28mm)
Weight 7.4 oz (200g)
Warranty One Year (Parts & Labor)
