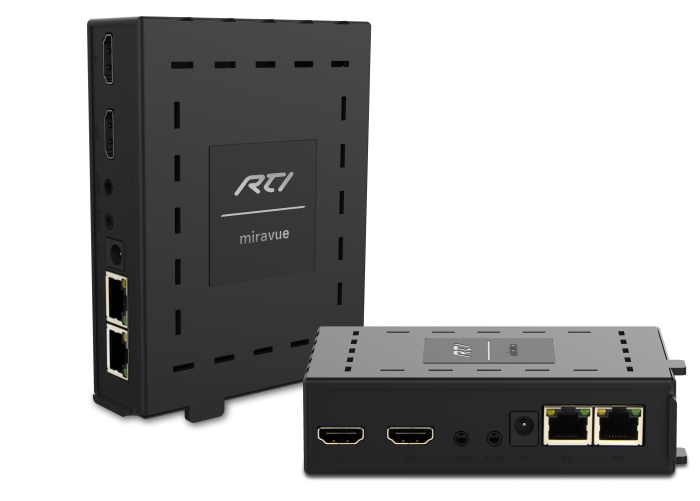

main product photo

RTI Miravue VIP-1

Find a Dealer

This product is discontinued.

The Miravue VIP-1 provides AV distribution over wired and wireless Ethernet networking in the connected home or office. The VIP-1 encodes H.264 video up to its highest supported resolution (1080p) along with audio (Dolby 5.1). The result is a high quality video output signal with low network bandwidth requirements. For the ultimate in flexibility, the VIP-1 can be installed as a transmitter or receiver, and acts as an extension of the RTI control system, delivering IR and RS-232 control to devices.

* For the best performance:

  • The VIP-1 should be installed as a transmitter or a receiver. NOTE: While the VIP-1 may be installed as a transceiver (simultaneously transmitting and receiving video), this implementation should be tested with the devices and network equipment being used.
  • Wireless implementations should utilize a separate wireless network, and be limited to one or two Miravue VIP-1’s set to Unicast mode.
  • Systems requiring more than 6 VIP-1’s should use a managed network switch.
Key Features
  • Miravue VIP-1 can be installed as a transmitter or a receiver.*
  • Supports video distribution via wired and wireless Ethernet.*
  • Supports HDMI/HDCP 1.x and 2.x video sources and displays (H.264).
  • Integrates network video streams (e.g., IP Cameras).
  • Built-in scaler matches the display’s maximum resolution.
  • Forwards IR and RS-232 commands from an RTI control system.
  • Automatically provides stereo downmix with lipsync adjust for distributed audio systems.
Power Supply 5V, 2.4A or via PoE 802.3af
Mountable Surface / Wall mount / Rack mount (w/ RMK-3 or RMK-12)
Dimensions HxWxD 5in(127mm) x 1.27in(32mm) x 3.8in(97mm)
Weight 6.03oz (180g)
Operating Temperature 0 to +40°C / +32 to +104°F
Operating Humidity 5% to 90% Non-condensing
Video Input One HDMI
Video Output One HDMI
Ethernet Ports Two, 10/100Base-T, RJ45 (1 PoE, 1 Ethernet)
Wireless Ethernet 2.4GHz and 5Ghz a/g/b/n
Audio Output One, Stereo Audio, 3.5mm
Control Signal Output One, IR, 3.5mm jack, One, RS-232, 3.5mm 3pos, TCP/IP, RJ45
Compliance HDMI / HDCP 1.x and 2.x
Max. Bandwidth 10.2Gbps
Compliance HDCP 1.4 and HDCP 2.2
Supported Video Resolutions 480i, 480p, 576i, 576p, 720p@50/60Hz, 1080i@25/30Hz, 1080p@24/25/30/50/60Hz Video Codecs DivX, XviD, H.264 BP/MP/HP, VC-1 SP/MP/AP, MPEG-1/2, MPEG-4 SP/ASP, H.263P3, VP8, MVC, Theora, AVS, RV-8/9/10
Audio Formats Stereo, Dolby Digital 5.1
Control Options (VIP-1) IR, RS232, TCP/IP, CEC with OSD
Warranty Three Years (Parts & Labor)



All features and specifications subject to change without notice.
