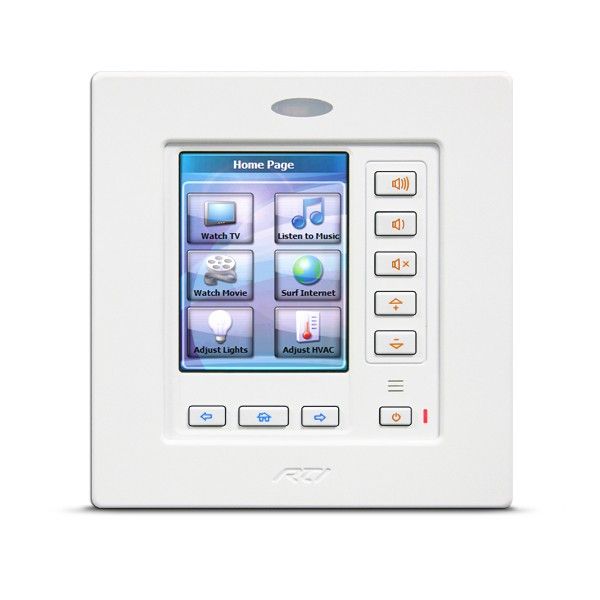

RK3-V 3.5 inch In-Wall Touchpanel Keypad

This model has been discontinued

The RK3-V provides elegant and intuitive control of today’s entertainment, environment and security systems. Representing the second generation of the award-winning RK-3 In-Wall Touchpanel Keypad, the RK3-V is capable of displaying text and graphics with incredibly rich and vivid detail with a new full VGA display - 4 times the resolution of it’s renowned predecessor. Designed for flush-mount installations in walls or cabinets the RK3-V is the only compact in-wall touchpanel that provides both direct infrared control and 10/100Base-T Ethernet for displaying digital video (motion JPEG) and web pages – either full screen or in an adjustable window. In addition, the RK3-V is unique because its graphical user interface (GUI) and programming are completely customizable. In any situation, from simple to complex, the RK3-V provides the perfect level of control.

The design of the RK3-V In-wall Controller allows it to blend into any room. The perfect balance between display size and resolution, a 3.5 inch LCD is small enough to fit in any decor, yet it provides the necessary resolution for displaying custom graphics, web pages and CD cover artwork. A fully programmable interface using RTI’s Integration Designer software makes it easy to provide simple and intuitive control for the end-user.

The RK3-V can be used as a stand-alone device or as a part of an expandable central control system. It can directly control almost any audio/video component or lighting system up to 1000 feet away using its infrared output port. When used with the available RTI accessory devices, the RK3-V
is capable of infrared routing, relay control, power sensing, and RS-232 communications for advanced control.

In addition, the built-in Ethernet port allows the RK3-V to display video from network security cameras, access the internet, view and play songs stored on hard drive music servers, and control other devices on the network.

*Integration Designer software only available to authorized RTI dealers.

  • Stylish low-profile faceplate bezel available in 5 colors (white, almond, ivory, silver, black)
  • Available with gray or black faceplate and buttons.
  • Integrated mounting wings for easy installation.
  • Full VGA resolution LCD to display custom buttons, text and graphics.
  • Customizable sounds.
  • Integrated 10/100Base-T Ethernet port with Power-over-Ethernet.
  • Plasma friendly infrared receiver for command pass-through.
  • IR output port drives up to 1000 feet of wire.
  • Two power status input ports.
  • Integrated high-resolution touchscreen.
  • Powerful 32-bit, 200MHz XScale® processor
  • 32MByte of Flash Memory.
  • Extremely bright, backlit display and keys with adjustable brightness.
  • Nine assignable/programmable keys.
  • Completely customizable and programmable.
  • Non-volatile Flash memory stores your system configuration even when power is lost.
  • Easy-to-use Windows® based software for programming and customization*
  • Field upgradeable firmware.
  • USB and Ethernet Programming.
Power +9VDC to +16VDC, .5A max or 802.3af Power-over-Ethernet
Power Management Adjustable backlight brightness/power down time
Touchscreen Display High-brightness color TFT LCD
Full VGA (480w x 640h pixels) with 65K colors
Integrated high-resolution resistive touchscreen
Display Size (H x W) 3.5 in (89mm) diagonal
Backlights White LED (Display), Blue/Amber LED (Keypad)
Infrared Output Port 200mA output
Drives up to 1000 ft (300 m) of wire
Ethernet Port 10/100Base-T with Power-over-Ethernet
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Total System Memory 32M Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB programming port
Enclosure High-impact molded ABS plastic, black
Front Plate High-impact molded ABS plastic, gray or black
Mounting Integrated mounting wings, or screws through front bezel
Front Plate Dimensions (H x W) 5 3/4 in (146mm) x 5 1/2 in (140mm)
Installation Cut-Out (H x W) 5 1/8 in (130mm) x 4 3/4 in (120mm)
Total Depth in Wall 1 1/8 in (29mm) plus cables
Weight 10 oz (284 g)
Warranty Three Year (Parts & Labor)
