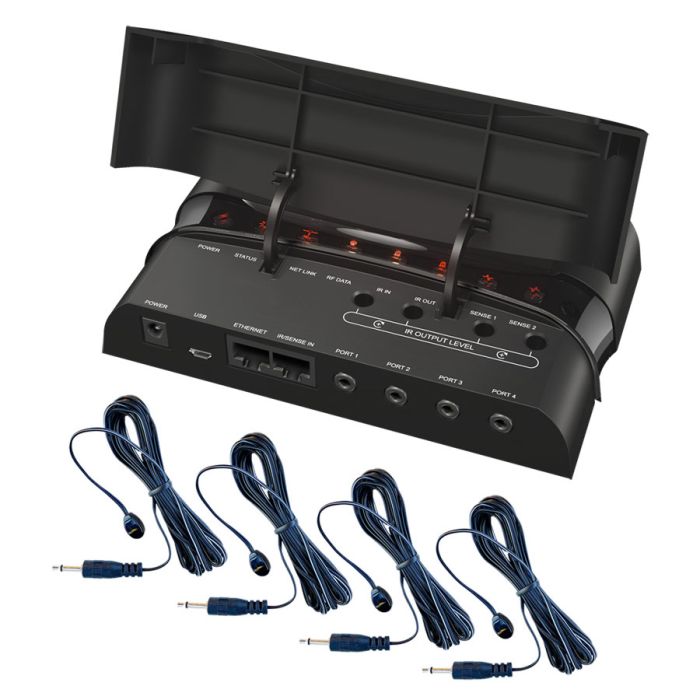

ProLink.r Plus Processor with IR Emitters

Combining precision control with ample power, this professional grade processor stores macros and commands to deliver complete control over your connected smart home.

The ProLink.r processor is PC programmable with the wizard-based Pro Control Studio software, and communicates with the Pro24.r and iPro.8 remotes via one-way 433 MHz RF signal.

Four integrated IR routing ports offer adjustable output strength and four IR Emitters are included in the ProLink.r Plus. Its two voltage-sensing inputs enable improved management of connected devices.

For additional control flexibility, the ProLink.r provides one-way LAN control via iPad ® and iPhone® with an activated ProPanel app from the App Store.

Included in the box:
ProLink.r, power supply, four (4) infrared emitters

Supported Remote Control Pro24.r and iPro.8
ProPanel App Support for iPad and iPhone Yes, 1-way control (Single license included in the ProLink.r Plus kit)
Ethernet Control Yes (for ProPanel use only)
Ethernet Port for Programming Yes
Adjustable IR Output Strength Yes
Integrated IR Routing Ports 4
IR Frequency Range 0-460KHz
IR Emitters Four (4) included in the ProLink.r Plus
Voltage Sense Inputs 2
Integrated RF Control 1-way (433 MHz)
System commands and macro storage Unlimited (Determined by available memory)
Integrated Antenna Yes
USB Programming Yes
Support for 2-way feedback from compatible devices No
Dimensions (HxWxD) 4.1" x 6.62" x 1.28"
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to

All specifications subject to change without notice
