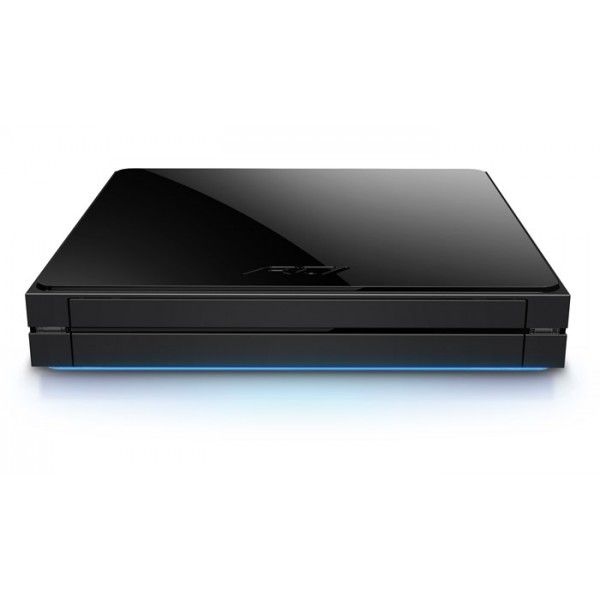

RTiDock iPod Docking Station

This model has been discontinued

The RTiDock is the essential accessory for any professionally installed distributed audio system. With the popularity of the iPod® and increasing demand from consumers to enjoy the device through the music systems in their home or business, convenient and reliable integration is a must. Designed from the ground up with the professional integrator in mind, the RTiDock provides the perfect solution, allowing consumers to connect their iPod® to their local or distributed audio system and control it through an RTI in-wall or handheld controller.

  • On-screen interface (GUI) for navigation of music on a TV display.
  • Sliding tray provides a clean look and improved reliability.
  • VirtualSync technology allows synching with iTunes over the network.
  • Compatible with iPod Classic®, iPod Nano®, iPod Touch®.
  • Analog and digital audio output connectors.
  • Built-in IR receiver and 3.5mm mini-jack for IR control.
  • Supports, IR/RS-232/Ethernet control.
  • Blue LED base emits a cool glow.
  • Slim design allows rack mounting, or may be used free standing.
  • Charges ipod battery.
  • Screen saver mode shows album art on television display
  • Field-upgradable firmware.

Dock DC Voltage 12VDC, 2A
Charge Power Supplied 5VDC, 1A
Connection for iPod Cable with connector overmold
USB Type A, Future use
Ethernet 10Base-T/100Base TX, RJ45
RS-232 Control RJ45
Analog Audio Output (Stereo) Two (2), RCA
SPDIF Digital Audio Output One (1), RCA
Component Video Output (Y/Pr/Pb) Three (3), RCA (480p)
IR Inputs

One (1), IR Sensor
One (1), 3.5mm mini-jack

Disconnected Indicator Solid Red LED
RTiSync In-Progress Indicator Flashing Red LED
Network Indicator Two(2), LED (Orange/Green)
Decorative Base Lighting Blue LEDs
Reset switch One(1), Rear push button
Operating Temperature +41F to +104F (+5C to +40C)
Operating Humidity 20% to 80% RH
Dimensions HxWxD 1.25in(25mm) x 7.5in(150mm) x 7.5in(150mm)
Weight >25 Watts @ 1KHz (RMS, 2 chan driven 8ohms)
Warranty One Year (parts & labor)
