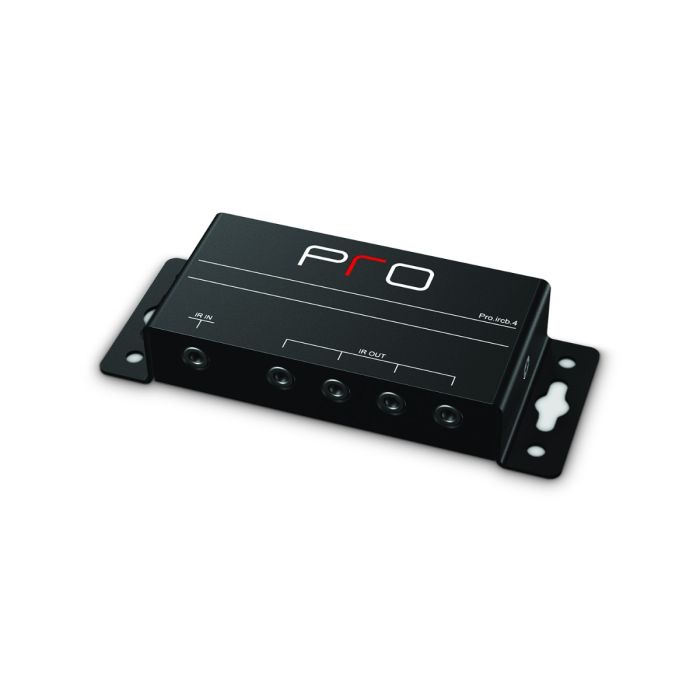

main product photo

Pro.ircb.4 Infrared Emitter Connecting Block

Find a Dealer

The Pro.ircb.4 IR Emitter Connecting Block provides infrared expansion when used with Pro Control Processors.  It has one infrared signal input and four output ports that allow the connection of up to four single infrared emitters.

Key Features

  • Compatible with most industry standard single IR emitters.
  • Four IR emitter output ports.
  • Sturdy steel construction.
  • A power supply is NOT required for the Pro.ircb.4 to function.
  • A 3’ mono cable with 3.5 mm plugs is provided for connection to ProLink processors.
  • Surface mount or free standing.
  • Dimensions: 5.25" x 1" x 2".

Included the box:
Pro.ircb.4 , 3’ mono cable with 3.5 plugs, quick reference guide

Key Features
Power No additional power option
IR Outputs Four 3.5mm jacks for industry-standard IR emitters
Infrared Input Compatible w/ industry-standard repeaters/receivers
IR Frequency Range 15kHz - 460KHz
Mounting Surface-mount or free standing
Enclosure Formed steel, black powder coating
Dimensions (HxWxD) 5.25" x 1.0" x 2.0"
Warranty One Year (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All specifications subject to change without notice
