PCM-8 Port Control Module

This model has been discontinued

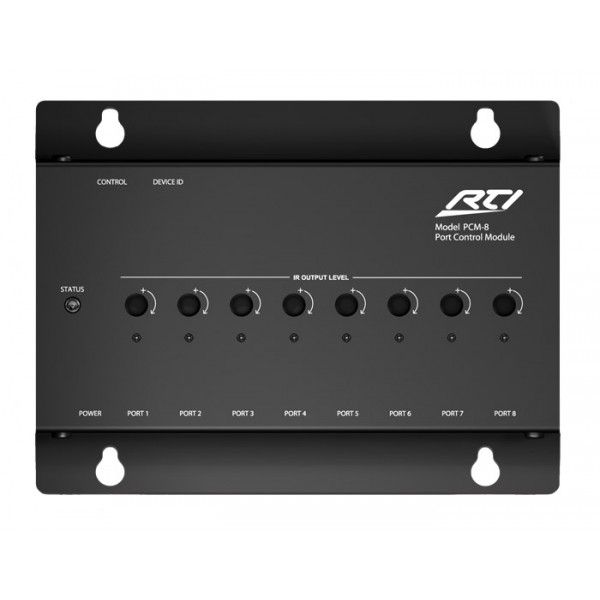

With eight multi-purpose output ports and an adjustable device ID, the PCM-8 increases the output capabilities of RTI
XP-6/XP-8 Control Processors to accommodate larger projects. Each port provides IR routing capabilities, one-way RS232 communication and power sensing (with RTI accessory devices). Control is communicated from an RTI processor using standard cat-5 cable. This allows the MPIO ports of the PCM-8 to become a seamless extension of the control processors.

  • Eight MPIO ports made available to an RTI XP-8 Control Processor
  • Separate addresses allow up to ten PCM-8 units in one system
  • MPIO ports may be used for IR routing, one-way RS232 or power sensing (with accessory modules)
  • Variable IR output power
  • Sturdy steel construction
  • 12VDC power supply included
Power +12VDC, 1A
Multi-Purpose Output Ports Eight custom 3.5mm 4-conductor jacks
Designed for RTI modules as well as industry-standard
IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
Infrared Frequency Transmission Range 15kHz - 460 kHz
Infrared Input Compatible with industry-standard repeaters and receivers
Control Port RS-485/IR
Device IDs Ten, Rotary Switch
Enclosure Formed steel, black powder coating
Mounting Wall-mount or free standing
Dimensions (W x H x D) 7.0”(179mm) x 5.25 ”(133mm) x 1.5 ”(38mm)
Weight 1lb 9oz (728g)
Warranty Three Year (Parts & Labor)

* All specifications subject to change without notice.
