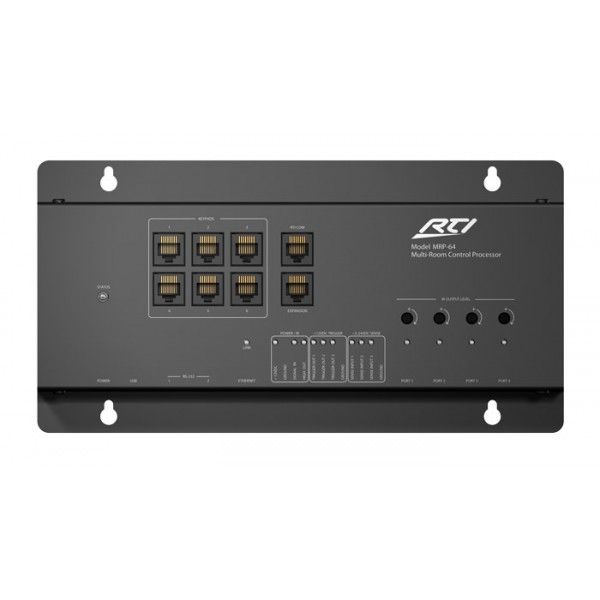

MRP-64 Multi-Room Control Processor

This model has been discontinued

The MRP-64 embraces a new concept in distributed audio by acting as the interface between today’s multi-zone audio/video receiver and an assortment of RTI in-wall and handheld controllers. Never before has such a robust distributed audio system been possible at such an affordable price. The MRP-64 allows the homeowner to take full advantage of the multi-zone features built into their surround receiver – expanding the entertainment beyond the media room. With the MRP-64 all of the audio/video sources from the media room can now be accessed anywhere in the home with the simple touch of a button.

The MRP-64 is a powerhouse of control in a small package. Loaded with features, the MRP-64 has six keypad ports for RTI In-wall controllers, four independent IR output ports, three voltage trigger outputs, three voltage sense inputs and an IR signal input. The MRP-64 also comes equipped with advanced features such as an Ethernet port for control and programming, two-way RS-232 communication, support for Zigbee® wireless communication, and other expansion capabilities. An IR input insures compatibility with all RTI in-wall and handheld controllers as well as industry standard IR repeater systems. No special programming is necessary since the bi-directional RS-232 drivers are preprogrammed and developed as part of RTI’s Integration Partner Program.

  • Expands virtually any home theater/multi-zone receiver into a distributed audio system.
  • Six keypad inputs to provide power and communication.
  • Two RS-232 ports for bi-directional communication.
  • Compatible with RTI Zigbee® Transceiver Module for two-way communication.
  • Preprogrammed RS-232 drivers for popular multi-zone receivers.
  • Three programmable 12VDC trigger outputs.
  • Three assignable voltage sense inputs.
  • IR input for IR pass-through or control.
  • Four addressable IR emitter ports are compatible with industry standard IR emitters and repeater systems.
  • One addressable high IR output for connecting additional IR connecting block/emitters.
  • All output ports incorporate both short-circuit and overload protection.
  • Variable power on all IR output ports.
  • Programmed using Integration Designer software.
  • Non-volatile Flash memory stores your system configuration even when power is not present.
  • USB and Ethernet programming.

*Integration Designer software only available to authorized RTI dealers.

Power Supply +12V DC, 4A
IR Output Ports Four 3.5mm jacks
Compatible with industry standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
200mA maximum (high IR output port)
Infrared Frequency Transmission Range 15kHz - 460kHz
Infrared Input Compatible with industry-standard repeaters and receivers
Trigger Outputs Three, 12 VDC, 100mA max each
Sense Inputs Three, 3-24VDC
RS-232 Ports Two, Bi-directional RJ45 Connections
Ethernet Port 10/100Base-T, RJ45 Connection
USB Ports 1 Programming
Control Port RS-485 / IR / Pwr, RJ45 Connection
RTI Com Port Two-way Zigbee® Communication Port, RJ45 Connection
Keypad Ports Six, RS-485 / IR/ Pwr
Mounting Wall-mount or free standing
Dimensions (W x H x D) 8.2" (208mm) x 1.3" (33mm) x 5.2" (132mm)
Weight 2 lb. (907g)
Warranty Three Year (Parts & Labor)

* All specifications subject to change without notice.
