Pre-Order Now: ISR-AB Advanced Base Controller for Intelligent Surface Remotes

Find a Dealer

Shipping in Q3.

Dedicated Wi-Fi- Access Point. Three fully programmable buttons—plus the first-ever "Find My Remote" button.

What if your remote’s base did more than just charge?

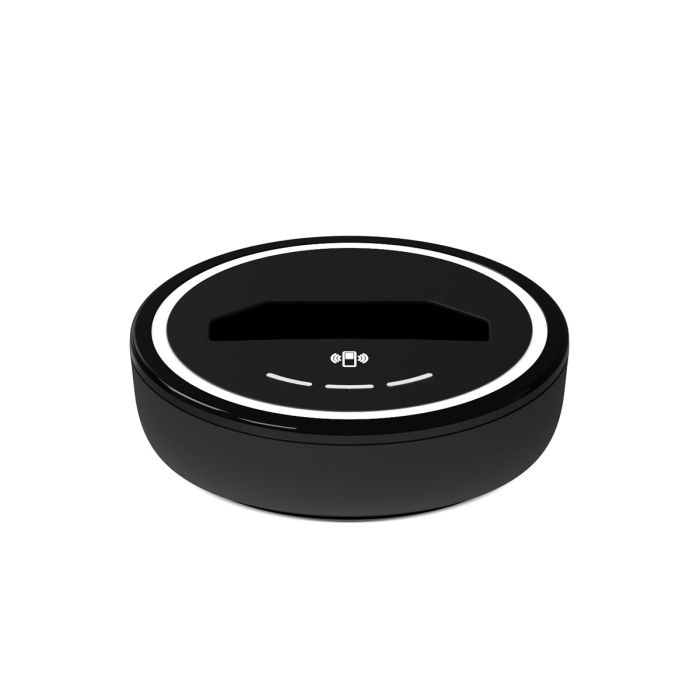

Introducing the ISR-AB Advanced Base—the first-ever charging base to offer programmable control buttons and a “Find My Remote” button, adding unmatched convenience and elevating the control experience. The ISR-AR Advanced Base is the perfect companion to your Intelligent Surface remote, providing an instant and dedicated Wi-Fi connection for seamless control.

Equipped with three programmable soft-touch buttons, it’s ideal for easy control of custom scenes or frequently used room functions—without even lifting the remote off the base.

Plus, the ISR-AR’s “Find My Remote” button triggers an audible beep on your remote to help you locate it when misplaced. The ISR-AB Advanced Base is an essential upgrade for any smart home or office.

Programs only with Integration Designer 11.

Included in the box:
ISR-AB, international power supply (5V, 2A)

  • Instant-Connect Wi-Fi Access
    The ISR-AB creates a 2.4GHz Wi-Fi access point ensuring a fast, robust connection for the ISR-4 or ISR-2 remotes.
  • Three Programmable Soft-Touch Buttons
    The ISR-AB is more than a charging station and even more than a Wi-Fi acess point. Its three fully-programmable soft-touch buttons enable easy control for scenes and common events.
  • Find-My-Remote Button
    We’ve all been there—where is my remote? Now finding it is easy. Tap the Find-my-Remote button and the ISR-2 or ISR-4 will beep an alert.
  • Easy Charging
    The ISR-AB ensures your Intelligent Surfaces Remote is always fully charged. Works with both the ISR-4 and the ISR-2.
  • Stylish Design
    With its elegantly modern design, the ISR-AB makes a statement in any room.
  • LED Light Ring
    Illuminates in set colors to correspond to different modes of operation.
Key Features
  • Wi-Fi access point for solid, dedicated, instant-on Wi-Fi connection for the ISR-4 or ISR-2
  • Wired or wireless connection to the system
  • Three programmable soft-touch buttons for scenes and commands
  • "Find My Remote" button
  • Modern design with programmable LED light ring
  • Easy charging for the ISR-4 or ISR-2
Power Supply +5VDC, 2.0A
Ethernet 10/100/1000BaseT, RJ-45 Connector
PoE 802.3af
Wi-Fi Frequeny 2.4GHz
Wi-Fi Modes 802.11ac, n, g, b, and
Wi-Fi Range Minimum of 100ft (30m) indoors
Modes of Operation Hard Wired Ethernet and Wi-Fi Bridge Mode
Security WPA or WPA 2 password protection
Buttons Four capacitive touch, all programmable through ID11.
One “Find my Remote” and three programmable scenes.
Button LEDs One programmable indicator of “Find my Remote” icon.
One programmable indicator of all three soft-touch buttons.
LED Light Ring Illuminates in set colors to correspond to different modes of operation: BLUE - No remote in the base station, RED - Remote is in base station and charging, GREEN - Remote is in base station and fully charged.
Power for ISR Remote Charging for ISR-4 or ISR-2
Battery Charge Time 3-4 Hours
Minimum ID Version 11.12 or later
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All specifications subject to change without notice.

ISR-AB Cutsheet (PDF)
