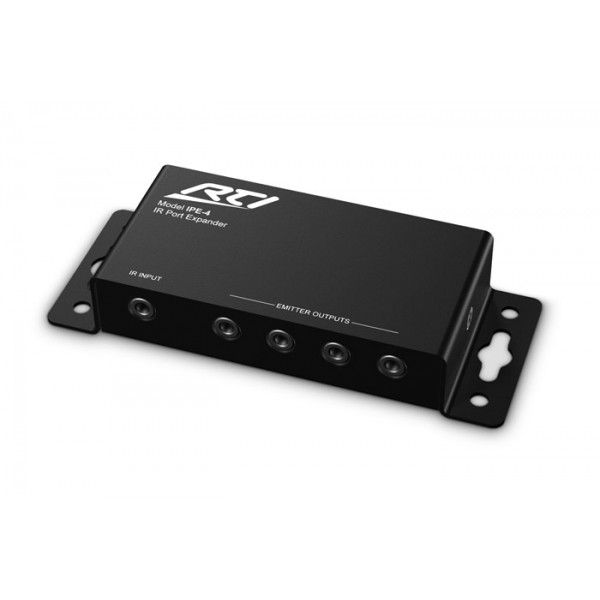

IPE-4 IR Port Expander

The IPE-4 IR Port Expander provides convenient expansion of infrared signal distribution when used with RTI control processors. It has one infrared signal input (3.5mm jack) and four emitter output ports that allow the connection of up to four single or dual infrared emitters.

  • Allows easy connection of up to four emitters to a single IR port.
  • Compatible with most industry standard single or dual IR emitters.
  • Sturdy steel construction.
  • A power supply is not required for the IPE-4 to function.
  • A 3' (1m) molded mono-cable with 3.5mm mini-plugs is included for easy connection to RTI processors.
Infrared Input Port 3.5 mm jack
Compatible with RTI control processors and industry standard repeaters/receivers
Number of Output Ports Four
IR Output Ports 3.5 mm jacks
Works with industry standard IR emitters
IR Output 100mA maximum (per port)
Mounting Wall-mount or free standing
Dimensions (WxHxD) 5.1” (130mm) x 1.9” (48mm) x .9” (23mm)
Operating Temperature +32°F to +122°F
(0°C to +50°C)
Operating Humidity 5% to 95% non-condensing
Weight 6.8oz (192g)
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
