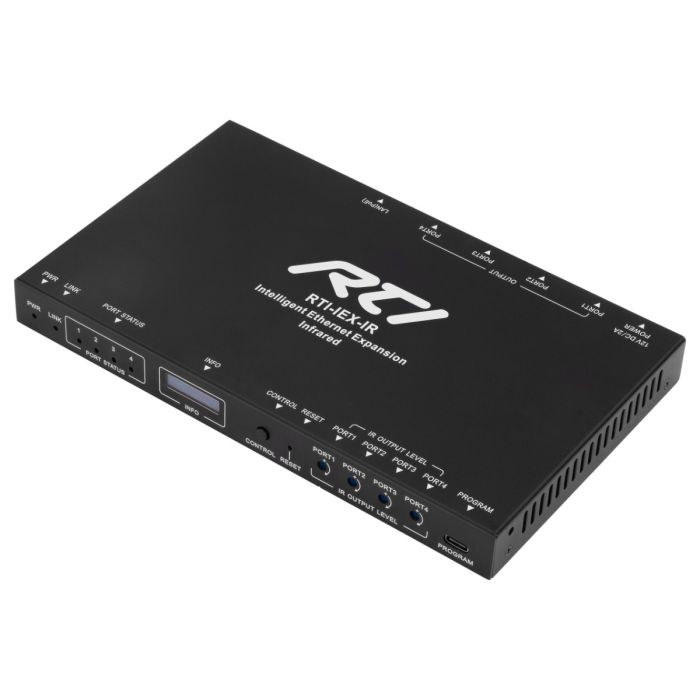

IEX-IR Intelligent Ethernet Expansion
Coming Soon.
Intelligent Ethernet Expansion with four infrared ports for control, the IEX-IR extends control as an expansion from the processor. Flexible, adaptable, compact, and versatile, the IEX-IR solves the solution of control exactly where you need it.
Local control where you need it
IR control in the most difficult to reach areas delivering remotely from the processor
Easy configuration and setup
All settings are available to preplan through Integration Designer or live through the web page
Compact design
Small enough to fit behind the TV, beside AV equipment, or in any location needed
One cable connection for power and communication
Just one ethernet cable takes care of power, communication, and control making installation really simple
Built in diagnostics
A digital display for all the important details local to the device instead of tracing back to the main control
| Processor Engine | |
| Processor IC | Rockchip RK3506G2 |
| Flash Memory | 256Mb |
| Communication | |
| Ethernet | RJ45: 1Gb PoE |
| USB-C | Programming port |
| Display | 0.91" OLED |
| Inputs/Outputs | |
| Infrared | 4 ports (3.5mm mono connectors) |
| Frequency Range | 15kHz - 460 kHz |
| IR Output Drive | 100mA maximum (per port, adjustable) |
| Mechanical | |
| Enclosure | Formed steel, black powder coating |
| Environmental | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 5-90% RH (No Condensation) |
| Cooling | Air vents |
| Power | |
| Max Power Consumption | 24W (12V 2A) |
| Power Supply Unit | Input: AC 100-240V~ 50/60HZ Output: DC 12V 2A |
| Dimensions | |
| Mounting | Vesa, rack |
| Dimensions (Unit only Width/Depth/Height) | mm: 200.00 x 104.00 x 20.00 in: 4.05 x 7.88 x 0.79 |
| Dimensions (Packaged Width/Depth/Height) |
mm: 267.00 x 150.00 x 70.00 in: 10.51 x 5.91 x 2.76 |
| Weight (Unit) | 0.45kg / 1lb |
| Weight (Packaged) | 0.90kg / 2lb |
| Regulatory | FCC, CE, RCM |
| Product Warranty | 3 years |
| Specifications subject to change without notice. Mass & dimensions are approximate | |
