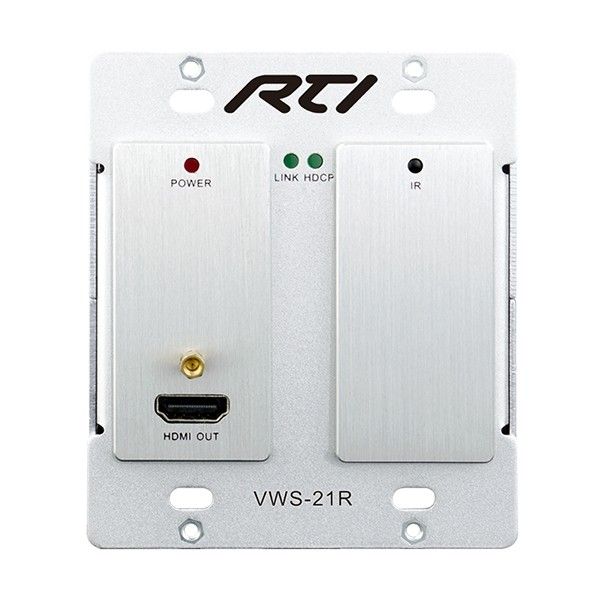

main product photo

VWS-21R Wallplate HDBaseT™ Video Receiver

Find a Dealer

This product is discontinued.

The VWS-21R is a Decora style HDBaseT receiver that receives an HDMI video signal over Cat5e/6 from a VWS-21T transmitter or any HDBaseT compatible transmitter. The VWS-21R can be powered through the Cat5e/6 cable using PoH (Power over HDBaseT). It also receives an IR or RS-232 control signal through the same Cat cable and delivers it to the connected display or projector.

Included in the box:
VWS-21R, Mounting Screws (4), 2-pole Terminal Block (2), 3-pole Terminal Block (2), Top Cover (1)

Key Features
  • Support for high resolution video at 4K, and 1080p 3D.
  • HDCP 1.4 Compliant, supporting HDMI 1.4.
  • Utilizes HDBaseT technology for HDMI video, IR, RS-232 control and power over Cat5e/6 cable.
  • Extends HDMI video at 1080p resolution up to 229ft (70m) and 4Kx2K up to 131ft (40m).
  • One RS232 port for bidiretional control of remote devices.
  • One infrared input and output for 2-way IR transmission over HDBaseT
Power Supply (not included) 12VDC 2A or via Power over HDBaseT (PoH)
Mounting 2-Gang Wall Box
Video/Audio/Control Input One HDBAseT (PoH) (RJ45)
Video Output One HDMI
Resolution Range HDMI 4K, 1080p 3D, 1080P, 1080i,
720P, 576P, 576i, 480P, 480i
Resolution Range DVI 1920x1200@60Hz, 1920x1080@60Hz,
1600x1200@60Hz, 1280x1024@75/60Hz,
1024x768@75/70/60Hz, 800x600@75/72/60Hz,
640x480@75/72/60Hz
Control Signal Input One, RS-232, 3-pin Phoenix Connector
One, IR, 3-pin Phoenix Connector
One, IR Sensor
Control Signal Output One, RS-232, 3-pin Phoenix Connector
One, IR, 2-pin Phoenix Connector
Bandwith 10.2Gbit/s
HDBaseT Transmission Distance 1080P ≤ 229ft (70m)
4K ≤ 131ft (40m)
EDID Management Built-in EDID data and manual EDID management
Compliance HDMI 1.4, HDCP 1.4
Operating Temperature 0 to +40°C / +32 to +104°F
Operating Humidity 5% to 95% Non-condensing
Dimensions WxHxD 4.09in(104mm) x 3.50in(89mm) x 1.73in(44mm)
Weight 0.52 lbs (240g)
Warranty Three Years (Parts & Labor)

All features and specifications subject to change without notice.
