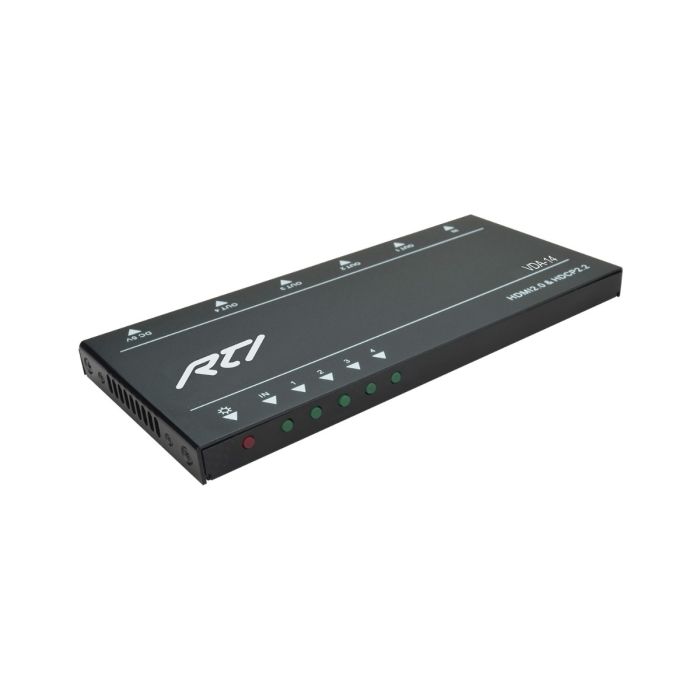

VDA-14 HDMI® 2.0 Splitter
The VDA-14 is an HDMI® splitter that delivers 4K video signal from one source to up to four displays simultaneously. Compliant with HDMI2.0 and HDCP2.2, VDA-14 supports resolutions up to 4K and supports 3D at 1080.
By auto-detecting the input resolution and with the built-in EDID management, the VDA-14 automatically adjusts the output resolution to fit the connected displays.
Included in the box:
VDA-14, Mounting Ears (2) with Screws, Plastic Cushions (4), Power Adapter 5 VDC (1)
- Provides distribution of one video source to up to four displays / projectors simultaneously.
- HDCP 2.2 compliant, supporting HDMI 2.0, backwards compatible with all previous HDMI standards.
- Supports HDMI / DVI resolutions up to 4Kx2K@60Hz 4:4:4.
- Up to 10m cable length for 4K resolution when using 24 AWG HDMI cables.
- Auto-detect of input resolution.
- Built-in EDID management adjusts output resolution to fit all connected displays.
- LEDs indicate connection and HDCP compliance status.
| Power Supply | +5 VDC, 2A |
| Mounting | Wall / Surface mount or Free standing |
| Dimensions WxHxD | 5.98" (152mm) x 0.43" (11mm) x 2.75" (70mm) |
| Weight | 0.3 lbs (140g) |
| Operating Temperature | -10 to +40°C / +14 to +104°F |
| Operating Humidity | 5% to 95% Non-condensing |
| Digital Video Input | One HDMI |
| Digital Video Output | Four HDMI |
| Compliance | HDMI 2.0, HDCP 2.2 |
| Resolution Range | 720x480@60Hz to 4Kx2K@60Hz 4:4:4, 1080p 3D |
| Supported Audio Formats | Dolby Digital, DTS, DTS-HD, PCM |
| EDID Management | Built-in EDID management |
| Front Panel LEDs | Connection Status, HDCP Compliance Status |
| USB | Micro USB for Firmware Update |
| Warranty | Three Years (Parts and Labor) |
All features and specifications subject to change without notice.
