AXP-1 Digital Audio Extender Kit
This product has been discontinued.
Distributing digital audio over long distances can be problematic. The AXP-1 Digital Audio Extender Kit uses a standard Cat5e/6 cable to seamlessly transmit S/PDIF (Toslink) audio over 650 ft (200m).
Included in the box:

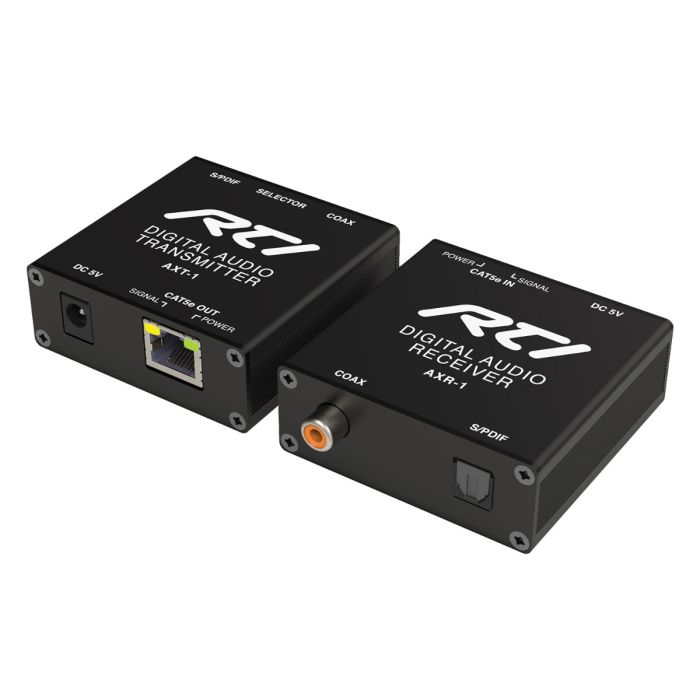

AXR-1 receiver, AXT-1 transmitter,power supply 5VDC/2Amp, USB to 5VDC power adapter
- Supports coaxial and S/PDIF digital audio signals.
- Supports Stereo and Multi-channel digital audio.
- Supports 2ch PCM audio sources.
- Supports 5.1 compressed audio.
- Extends audio signals over a single CAT5e/CAT6 cable.
- Extension length up to 650 ft (200m).
- Compact design.
| Power Supply | 5v DC / 10W power supply (CE/FCC certified) |
| Power Consumption | Max 5 Watts |
| Audio Input Zones | 1 |
| Optical Audio Inputs | 1 |
| Audio Output Zones | 1 |
| Optical Audio Outputs | 1 |
| Digital Coax Audio Outputs | 1 |
| Dimensions WxHxD | 0.9 in (2.4 cm) x 3.0 in (7.5 cm) x 2.5 in (6.4 cm) |
| Weight | 0.1 lb (0.10 kg) |
| Operating Temperature | 0 to +35°C (32 to +95°F) |
| Operating Humidity | 5% to 90% Non-condensing |
| Lip Sync Delay | No |
| Supported Audio Formats | Input: 5.1 Dolby Digital / 2ch Stereo PCM |
| Warranty | Three Years (Parts & Labor) |
All features and specifications are subject to change without notice.
