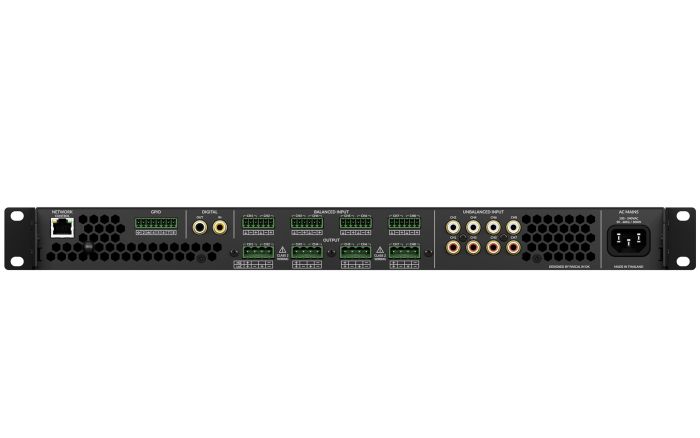

Pre-Order Now: AMP-8-125 - 8 Channel 125W 8Ω, 4 Channel 70/100V 250W DSP Matrix Amplifier
The AMP-8-125 power amplifier delivers configurable and reliable high-performance audio power amplification for commercial and hospitality applications that demand a mix of low impedance and high impedance outputs. With a compact 1U design, this DSP-enabled Class-D amplifier can drive low impedance 4Ω to 16Ω loudspeakers as well as high impedance 70V/100V transformer-coupled loudspeakers. The AMP-8-125 can accept eight balanced or unbalanced analog inputs and one stereo S/PDIF digital input and delivers either four low impedance stereo outputs at 125W per channel, or four 70V/100V mono outputs at 250W per channel.
For set-up, the RTI web GUI enables effortless browser-based configuration of the installed system. Its DSP configuration options include multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, sine wave generator, and more.
Included in the box:
AMP-8-125, power cord, 6-pin Phoenix input connectors (4), 4-pin Phoenix output connectors (4), 8-pin Phoenix GPIO socket connector (1), rack-mount kit (1), adhesive rubber feet (4)
4 Sources / 8 Channels
Four analog audio source inputs (balanced or unbalanced), 1 digital input.
4 Zones
Choose between standard stereo zones or a 70V/100V sound system.
Full Matrix
Distribute four audio source inputs to four zones, expandable to more zones by daisy-chaining multiple AMP-8-125 units.
Powerful Stereo Output
125W power output per channel for stereo zones.
Powerful 70V/100V Output
250W per channel for 70/100V zones.
Built-In DSP
Configure and optimize DSP and matrix settings with the in3tuitive web user interface.
Ultra-Efficient
Cool Power® Class D amplifier technology ensures efficient heat dissipation and low power consumption.
Audio Source Versatility
Use either analog or digital audio sources or a combination of both.
Control
Control the unit with an RTI or 3rd party control systems via IP or use the GPIO control for controller for volume, standby, mute or trigger functions
Mounting Options
Rack mount or free-standing installation with included rack ears and adhesive rubber feet.
- Eight analog audio source input channels (balanced or unbalanced) and one digital input (S/PDIF).
- Four Lo-Z stereo or eight Lo-Z mono output zones, four Hi-Z mono output zones, or a mix of both.
- Class D amplifier provides a robust and clear audio experience with 125 Watts @ 4Ω/8Ω per channel or 250W @ 70V/100V per channel.
- Daisy-chain multiple amplifiers to expand the number of zones by distributing up to two audio inputs or zones.
- Built-in DSP allows for fine-tuning acoustic characteristics for each zone.
- Easy configuration via LAN or Wi-Fi.
- IP and GPIO control options.
- Free-standing installation or rack-mount (rack-mount kit included).
Analog Sources | 8 RCA (Unbalanced Stereo) 8 Phoenix Connector (Balanced Stereo) |
Digital Sources | 1 Coax |
Amplified Zones | 4 (8 Channels) |
Audio Zone Expansion | Daisy-chain multiple AD-8-125 units via Digital In/Out |
Amplifier | Class D |
Output Power @ 4Ω/8Ω | 8 x 125W |
Output Power @ 70V/100V | 4 x 250W |
Output Voltage | 45 Vrms (S.E), 70/100V (Hi-Z) |
Power Share | Up to 2 x 250W (across each channel pair) |
Signal to Noise Ratio | > 106 dB (A-weighted, 20 Hz – 20 kHz, 8Ω load) |
THD-N (Typical) | < 0.05% (20 Hz – 20 kHz, 8Ω load, 3 dB below rated power) |
Frequency Response | 20 Hz – 20 kHz (+/- 0.5 dB, 8Ω load, 3 dB below rated power) |
Protection Circuits | Short circuit, DC, Undervoltage, Temperature, and Overload protection |
RTI or 3rd Party Control | IP (RJ45), GPIO (Phoenix Connector) |
Power Supply | UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter |
AC Input Voltage | 100-240V~, 50/60Hz, 150W |
Power Rating | 1% THD @ 120VAC and 230VAC |
Standby Consumption | < 0.5W |
Mounting | Rack mount or free-standing |
Dimensions (W x D x H) | 17.35” x 12.6” x 1.75” 440 mm x 320 mm x 44.5 mm |
Rack Units | 1U |
Weight | 8.4 lb (3.8 kg) |
Operating Temperature | +32°F to +104°F (0°C to +40°C) |
Warranty | Three Years (Parts & Labor) |
Prop 65 Declaration | This product contains Butadiene which is listed on California’s Safe Drinking Water & Toxic Enforcement Act of 1986. This Act, commonly known as Proposition 65 (Prop 65), establishes a list of chemicals which the state of California’s risk assessment process has determined to present a risk of cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov |
All features and specifications are subject to change without notice.
