The AD-810-100 is an 8x10 DSP Matrix Amplifier for distribution of eight stereo audio sources to ten zones, with eight zones amplified at 100 Watts. Two zones feature preamp outputs to integrate external power amplifiers or subwoofers. The AD-810-100 enables seamless routing of both digital and analog sources to any desired zone and features a comprehensive set of DSP controls. This includes a 5-band parametric EQ, allowing integrators to fine-tune acoustic characteristics and tailor sound to specific spaces, plus mixing and auto-ducking features facilitate seamless integration of microphones and doorbells, effortlessly prioritizing audio sources and ensuring smooth transitions. Configuration and DSP functions can be customized directly within Integration Designer or with the intuitive web GUI, enabling the AD-810-100 to work in standalone mode or within another control system environment.
Amplification is with an efficient Class D Cool Power® design that optimizes performance while minimizing heat generation. Up to 100W per channel power output provides for a robust and clear audio experience even in demanding environments. For projects that need more power, integrators can bridge outputs to enable a 200W per channel output.
For projects that need more zones, up to eight AD-810-100 chassis can be combined to deliver 64 amplified and 16 preamp zones.
Included in the box:
AD-810-100, power cord, rack ears (2) with screws, 4-pin Phoenix connectors (8), feet with screws (4)
8 Sources
Eight analog audio source inputs and four digital inputs (mirrored analog inputs).
10 Zones
Ten stereo audio output zones with 8 amplified stereo and 2 preamp stereo outputs to integrate external power amplifiers or subwoofers.
Ultra-Efficient
Cool Power® Class D amplifier technology ensures efficient heat dissipation and low power consumption.
Clearly Powerful
Experience the apex of audio power with 100 Watts @ 4Ω or 50 Watts @ 8Ω, delivering unparalleled sound quality and clarity. For more power, bridge outputs for 200 Watts per channel.
8x10 Audio Matrix
Distribute eight audio source inputs to ten zones, expandable to 80 zones by stacking up to eight AD-810-100 units.
Audio Source Versatility
Use either analog or digital audio sources or a combination of both.
Built-In DSP
Configure and optimize DSP and matrix settings directly within Integration Designer or with the intuitive web user interface.
5-Band Parametric Equalizer
Fine-tune acoustic characteristics, correcting imperfections and tailoring sound to specific spaces.
Control
Use RTI or 3rd party control system with multiple control options: Two-way control with feedback via RS-232 and IP, or One-way control with infrared.
Auto Configuration
Configure and deploy the AD-810-100 with ease within RTI’s Integration Designer platform.
Mounting Options
Rack mount or free-standing installation with included rack ears and removable feet.
- Eight analog audio source inputs and four mirrored digital inputs (mirrored analog inputs).
- Ten stereo audio output zones with eight amplified stereo and two preamp stereo outputs.
- Class D amplifier provides a robust and clear audio experience with 100 Watts @ 4Ω per channel per zone.
- Distribute eight audio source inputs to ten zones, expandable to 80 zones.
- Fine-tune acoustic characteristics for each zone with the 5-band parametric EQ, mixing and auto-ducking features.
- Configure and optimize DSP and matrix settings.
- Multiple control options with RS-232, IP and IR.
- Rack mount or free-standing installation.
Analog Sources | 8 RCA (Stereo) |
Digital Sources | 4 Coax and 4 Optical (Mirror Analog 1 - 4) |
Loop Out | 8 Analog + 2 Digital |
Amplified Zones | 8 Stereo (16 Channels) |
Preamp Zones | 2 Stereo or 4 Mono (4 Channels) |
Audio Zone Expansion | Up to 80 zones by combining up to 8 AD-810-100 units |
Input Impedance | 20kΩ |
Amplifier | Class D |
Power @ 8Ω | 50W/Ch (all channels driven) |
Power @ 4Ω | 100W/Ch (2 channels driven) 75W/Ch (all channels driven) |
Power @ 8Ω Bridged | 200W/Ch bridged (8Ω) (2 channels driven) 150W/Ch bridged (8Ω) (all channels driven) |
Analog Input | 2 Vrms Maximum |
Analog Output | 2 Vrms Maximum. Volume controlled |
Volume Range | 0-100 (-80dB - 0dB) |
Digital Optical Input | Up to 192kHz/24Bit sample rate. PCM only |
Digital Coaxial Input | Up to 192kHz/24Bit sample rate. PCM only |
THD-N | THD+N <0.01%, 1kHz @ 1/8 rated power THD+N <0.05%, 20Hz-20kHz @ 1/8 rated power |
SNR | >95 dB, A-weighted input to output @rated power @Amp >100 dB, A-weighted - input to output @ preamp out |
Frequency Response | 20Hz – 20kHz +/- 2 dB @ 4Ω and 8Ω |
Dynamic Range | >95dB A-weighted |
Sampling Frequency | 48kHz |
RTI or 3rd Party Control | IP (RJ45), RS-232 (RJ45) and IR (3.5mm mono) |
AC Input Voltage | 100-120V/ 220-240V~, 50/60Hz, 800W |
Power Switch | Front Panel On/Off with LED power indicator |
Mounting | Rack mount or free-standing |
Dimensions (WxHxD) | 17.2” x 16.4” x 3.5” 437 mm x 416.5 mm x 89mm |
Weight | 23.77 lb (10.78kg) |
Operating Temperature | 0 to +50°C / +32 to +122°F |
Operating Humidity | 5% to 95% Non-condensing |
Warranty | Three Years (Parts & Labor) |
Prop 65 Declaration | This product does not contain chemicals which are listed on California’s Safe Drinking Water & Toxic Enforcement Act of 1986. This Act, commonly known as Proposition 65 (Prop 65), establishes a list of chemicals which the state of California’s risk assessment process has determined to present a risk of cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All features and specifications subject to change without notice.

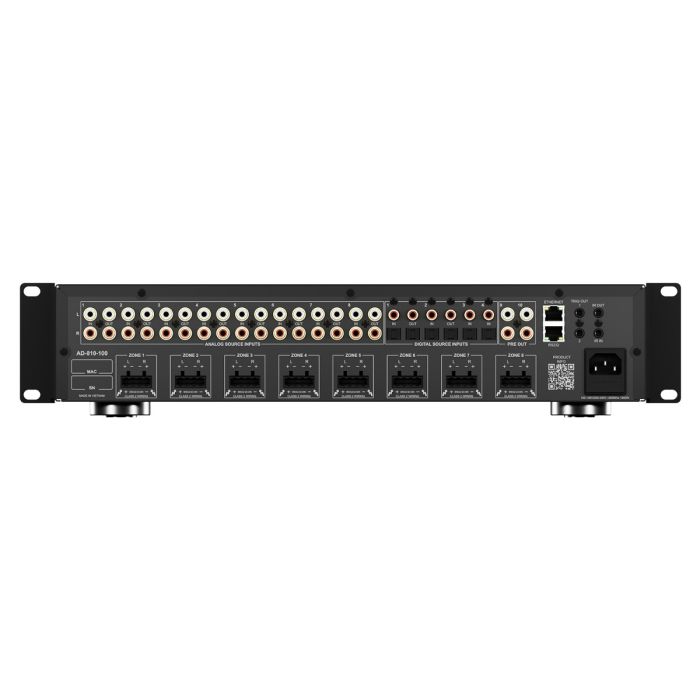

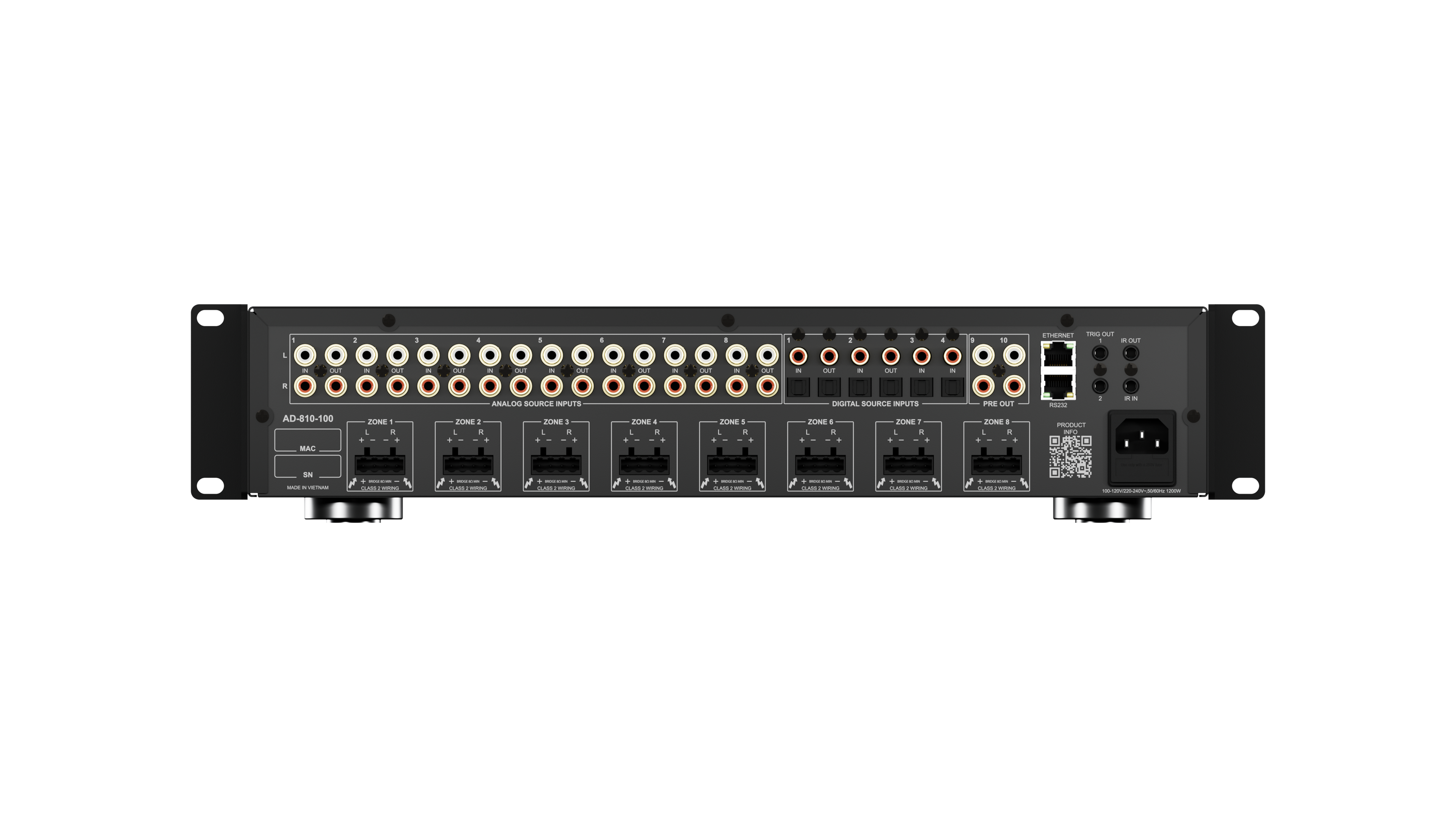

Hi-Res Back Panel Image
See the image links below for the AD-810-100 Web GUI screens:

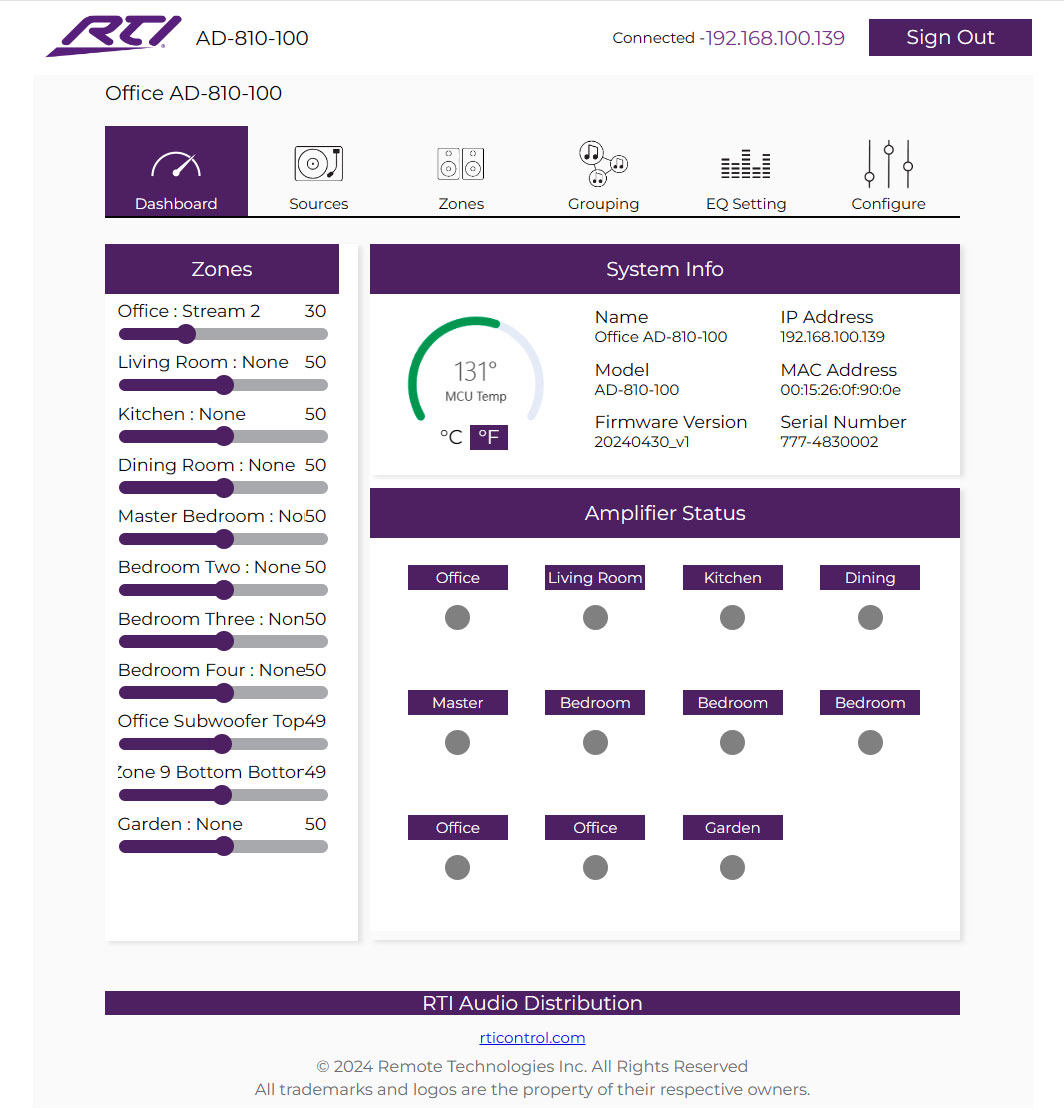

- Dashboard

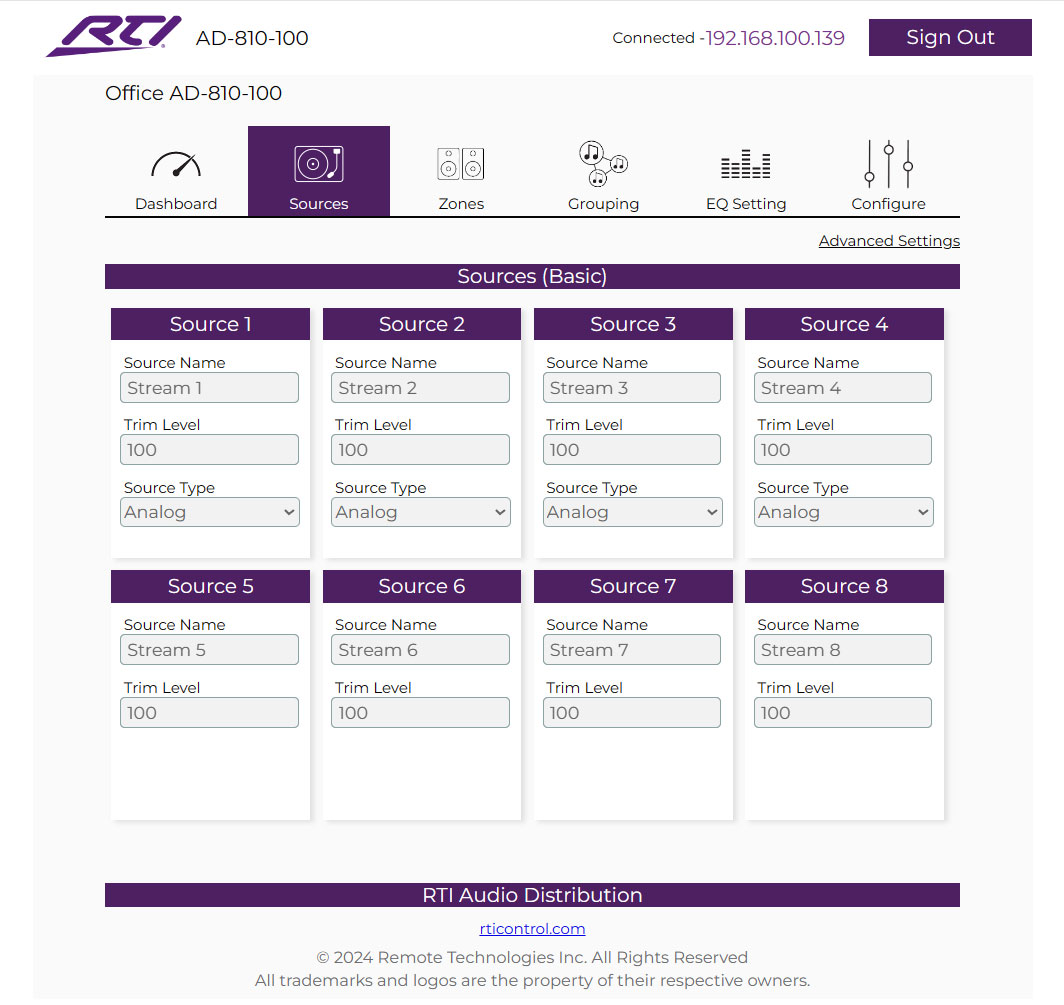

- Sources (Basic)

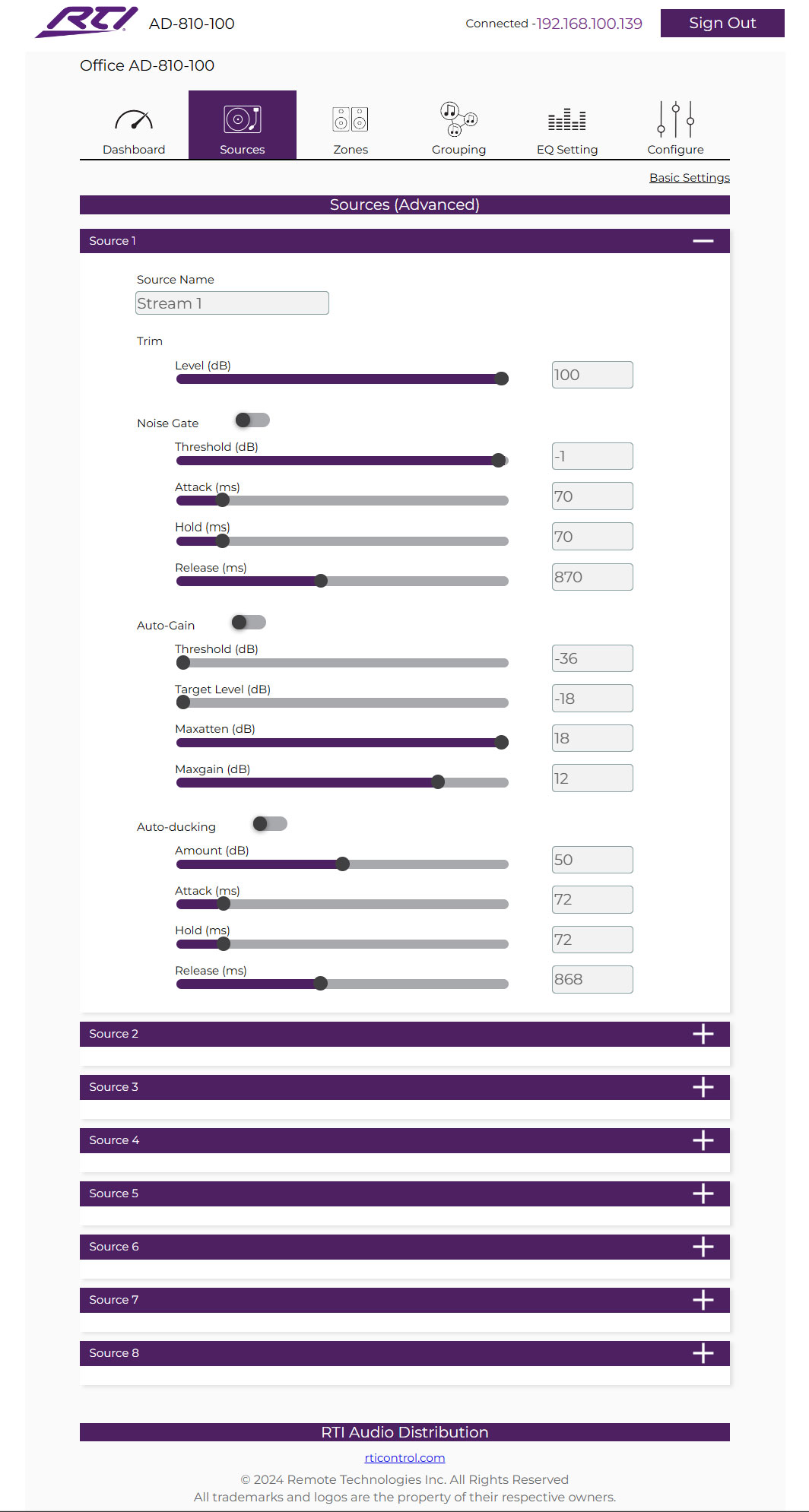

- Sources (Advanced)

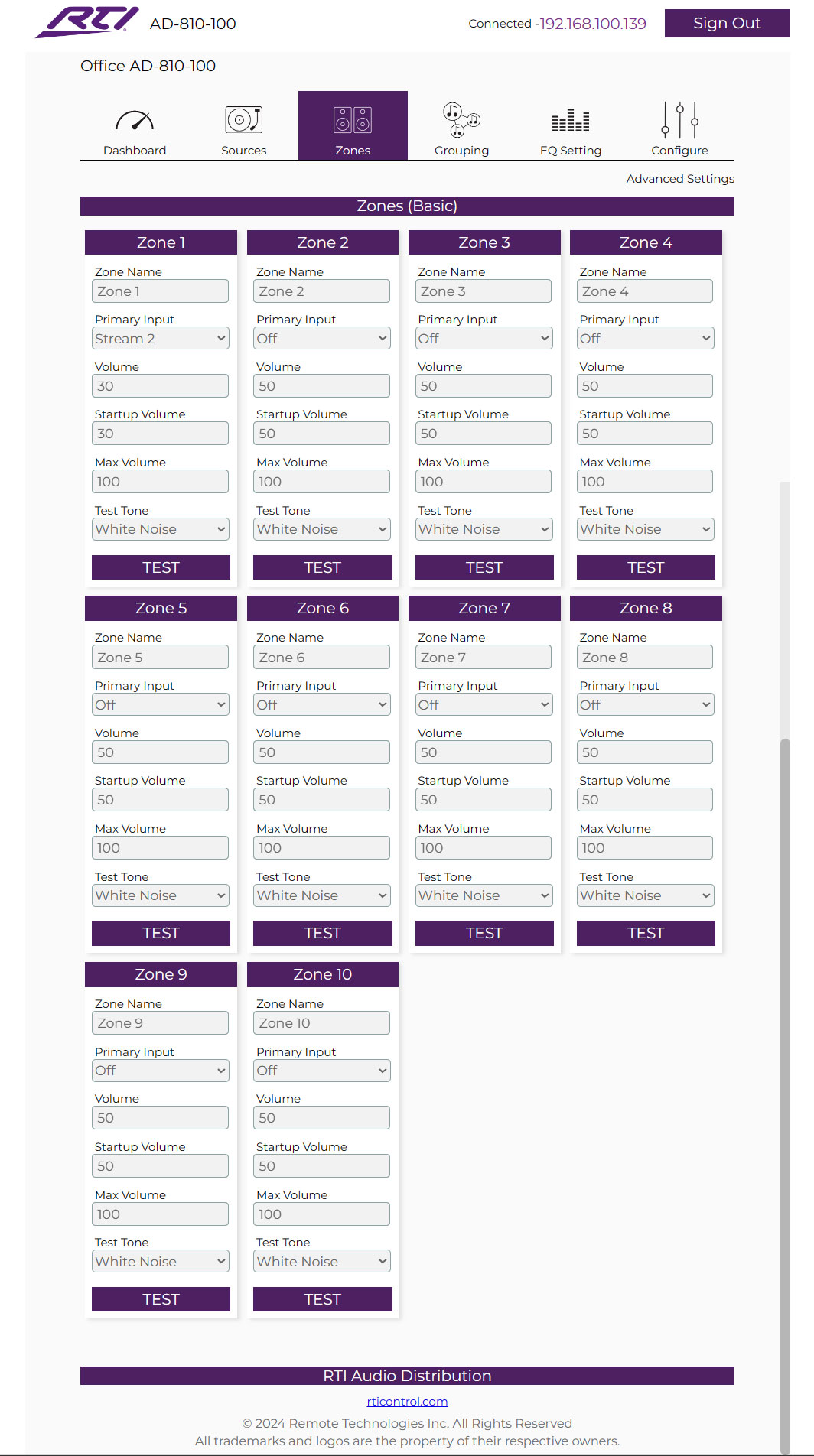

- Zones (Basic)

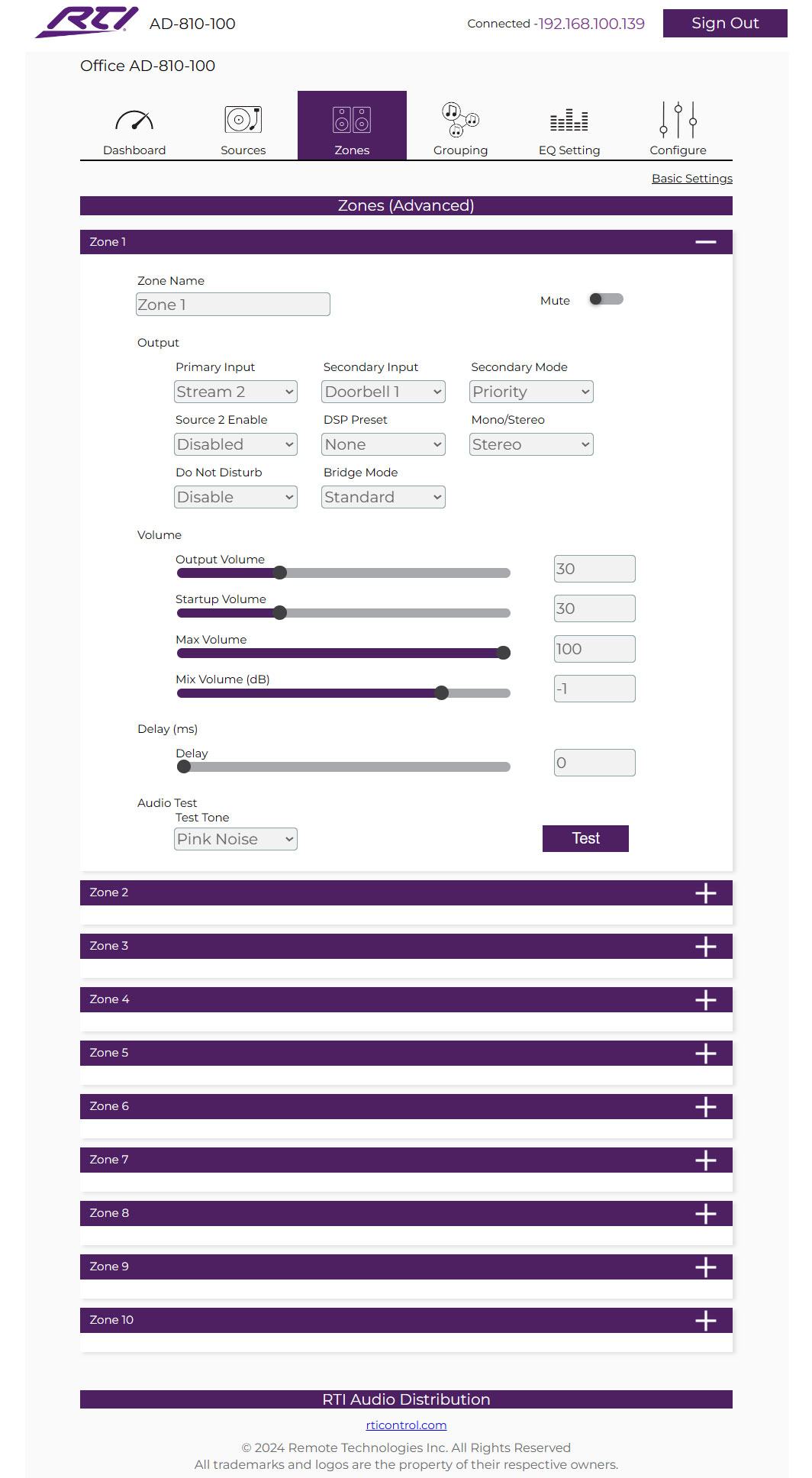

- Zones (Advanced)

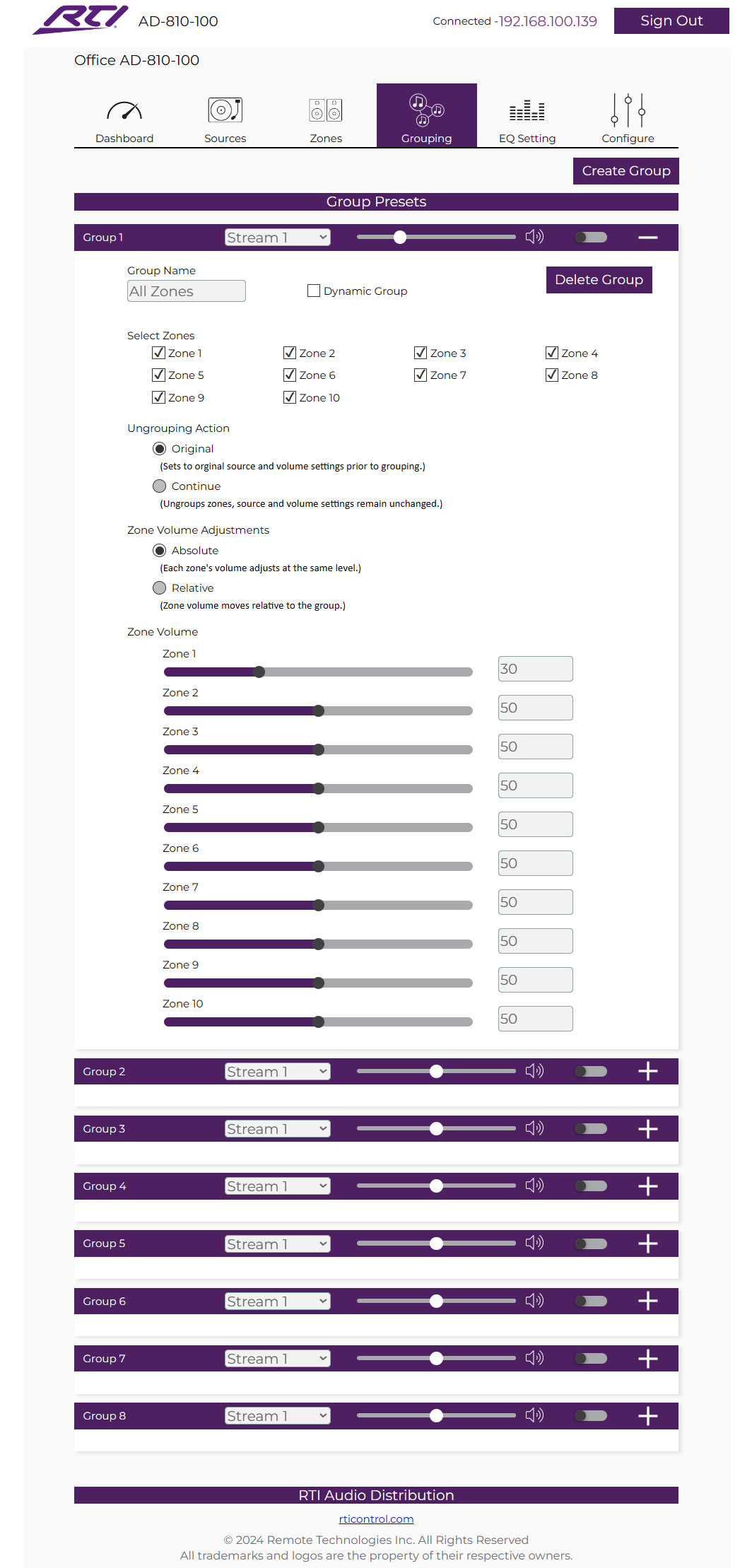

- Grouping

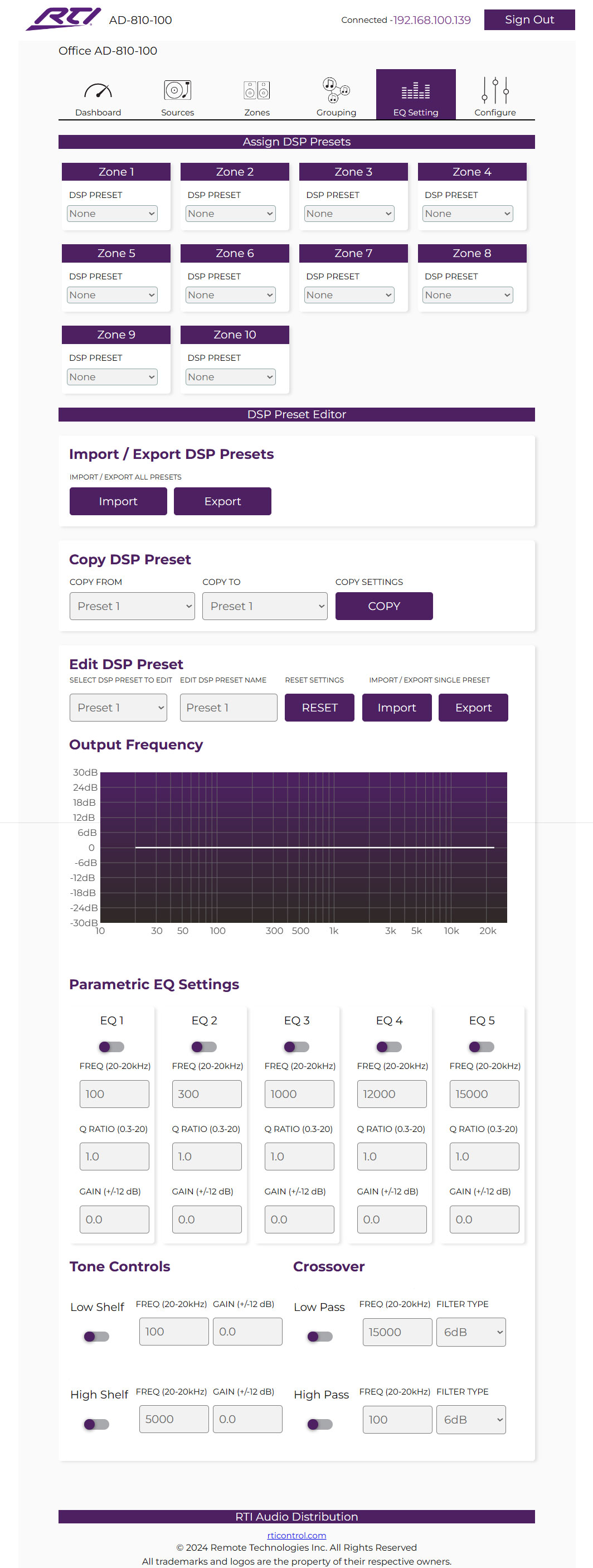

- EQ Settings

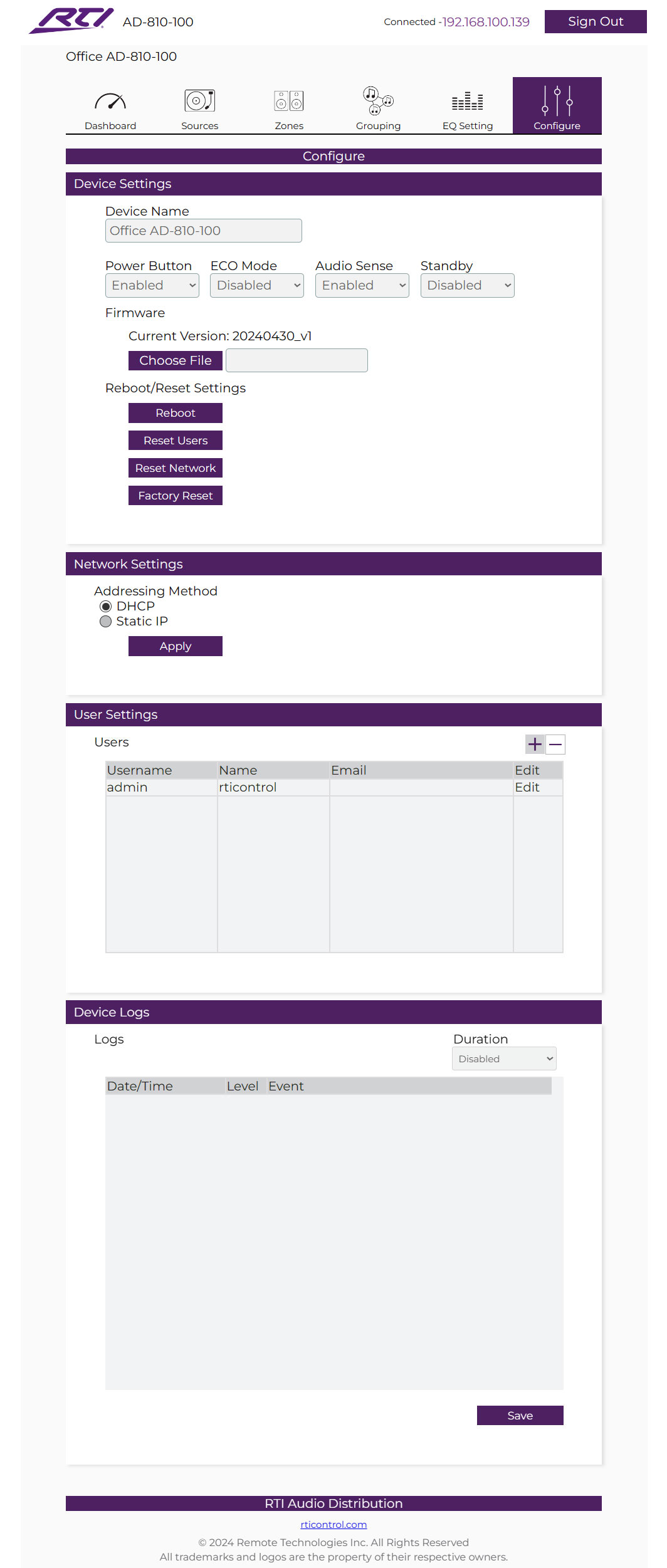

- Configure
