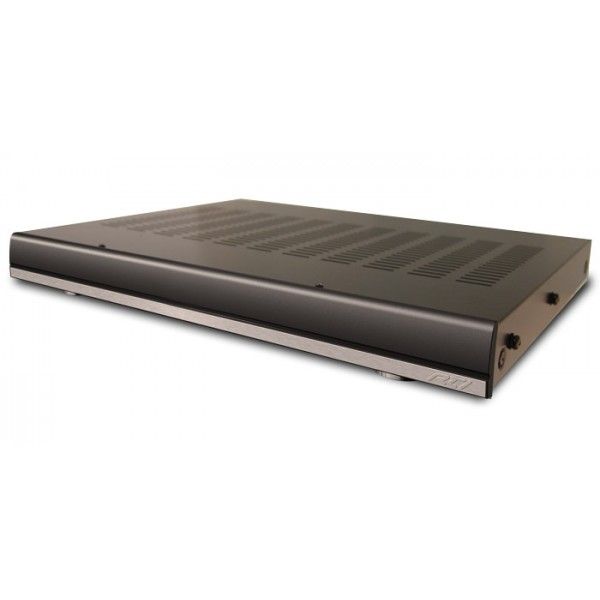

AD-4 Audio Distribution System

This model has been discontinued

Let the music move you with the AD-4 audio distribution system from RTI. Go to the exercise room to summon your iPod®, listen to broadcast radio in the kitchen, internet radio in the backyard, and a CD in the living room - all at the same time. With four analog audio source inputs and outputs, wherever you go - the music moves with you. An integrated 8-channel amplifier provides plenty of power, while zone independent volume and tone control brings the sound to life. When you combine the AD-4 with RTI central processors, remote controls, touchpanels, and keypads, this RTI distributed audio solution easily keeps pace with the rhythm of your life.

The AD-4 is perfect for residential or commercial installations that require
music everywhere - without breaking the budget. This compact audio
distribution system contains both a matrix switching pre-amp and a built-in
power amplifier. The four local source inputs can be augmented with four
remote source inputs, making it easy to listen to music from your bedroom CD
player, iPod® dock, or PC. A single Cat-5 cable connects the remote source’s
audio and infrared signals between the remote location and the AD-4.

The AD-4 audio distribution system is designed to be a seamless extension of
an RTI control system. The AD-4 provides the audio switching, amplification
and distribution functions, while RTI central processors and user interfaces
manage the audio source control, user input and status feedback. Information
such as the selected source, volume level, and tone control settings are
available for each zone. Depending on the source equipment used, more
advanced information such as song playlists, cover art, and tuner RDS data
may also be available.

Of course with RTI control systems, audio is just the beginning. Imagine every
aspect of your environment working in complete harmony – from audio and
video, to lighting, ambience, temperature and more. Such scenarios are only
made possible from an audio distribution system backed by a real, professional
grade control system. Thanks to the efficient engineering that defines the
AD-4, there is no reason to limit yourself to a system that was designed only
for music – with RTI so much more is possible.

*Integration Designer software only available to authorized RTI dealers.

  • Four analog stereo audio output zones with input switching.
  • Four local and four remote analog audio source inputs.
  • Accessory wall plate allows source equipment to be connected remotely with a Cat-5 cable.
  • Independent volume and tone control for all audio zones.
  • Controlled via Infrared and RS-232 including two-way feedback when installed with RTI control systems.
  • Twenty-five watts per channel in each zone.
  • Optional phone and doorbell mute function.
  • Zone power indicator LEDs.
  • Compact, low-profile design allows shelf or rack installation.
AC Input Voltage 115VAC, 120W
Power Switch Front Panel On/Off with LED
Mounting Rack mount or free standing
Dimensions (HxWxD 2.1in(53mm)x16.9in(430mm)x13.3in(340mm)
Weight 11lbs (5kg)
Operating Temperature C -10 to +40degrees, F +14 to +104 degrees
Local Input Source Four, RCA
Remote Input Mixed Source Four, RJ45
CTRL In One, 3.5mm, for IR control
Remote Source IR One, 3.5mm x 4 sources, IR input
RS232 Port One, Bidirectional
Trigger Output One, 12VDC @ 15mA
Voltage Output One, 12VDC @ 500mA
Mute One, 3.5mm
Output Zones Four, Two channels each
Rated Power/Channel >20 Watts, 20Hz to 20KHz (RMS, 2 chan driven 8ohms)
Power/Channel >25 Watts @ 1KHz (RMS, 2 chan driven 8ohms)
Total Harmonic Distortion @20W/8ohm, .5%
Total Harmonic Distortion @1W/8ohm <.05%
S/N @ Rated Power, IEC A-wtd, Source Input shorted 92dB (mute +1)
Frequency Response 20Hz to 20KHz @1W/8ohm 1.5+/-.5dB
Input Overload 2.5V
Input Impedance >22KOhms
Channel Separation 1KHz >60dB
Crosstalk Between Sources @ Rated Power/1KHz >75dB
Crosstalk Between Zones @ Rated Power/1KHz 80dB
Treble Control @10KHz 10dB +/-.5dB
Bass Control @100Hz 10dB +/-.5dB
Warranty Three Years (parts & labor)
