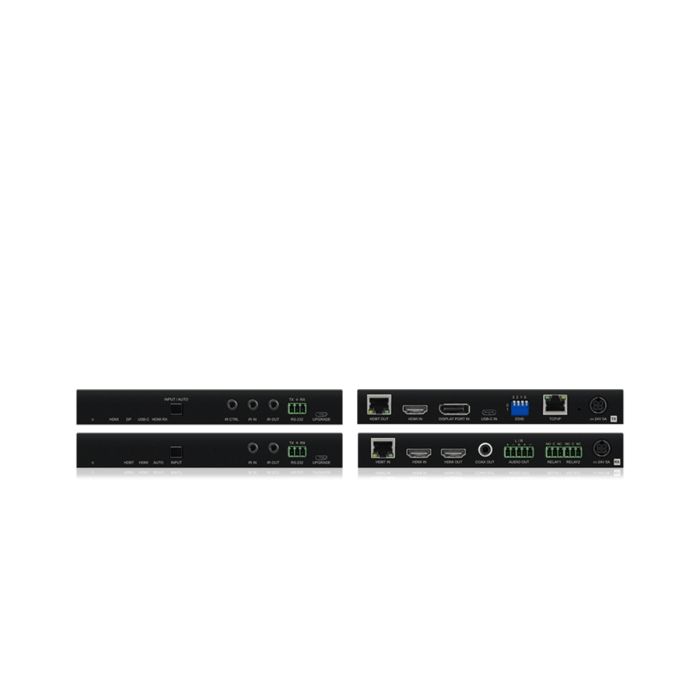

HEX70HDU-KIT - Multi Format HDBaseT™ CSC Extender Set

Find a Dealer

The HEX70HDU-KIT extender set is an industry-leading HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT multi-format solution utilizing CSC technology to deliver HDMI, USB-C, and DisplayPort at 4K to 40m (with 1080p up to 70m) over a single CAT cable.

The HEX70HDU-KIT provides enhanced features including local HDMI input on the HDBaseT receiver for additional source input, Web GUI for control and configuration, auto display control, audio breakout, and bi-directional IR / RS-232 pass-through.

The HEX70HDU-KIT features control via front panel, IR, RS-232, and TCP/IP, with advanced EDID and HDCP management.

Box Contents

1 x HEX70HDU-TX
1 x HEX70HDU-RX
1 x 24V/5A DC Power Supply
1 x IR Emitter
1 x IR Receiver
1 x RS-232 Control Cable
2 x Mounting Kits
1 x Quick Reference Guide

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable

  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

  • Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort input on the HDBaseT transmitter with manual or auto source selection

  • Features 1 x local HDMI input on the HDBaseT receiver for connection of a source local to the display

  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m

  • Extends HDMI 1080p up to a distance of 70m

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)

  • Supports DisplayPort up to 4K UHD @ 60Hz 4:4:4, 4K @ 30Hz 4:4:4 DP1.2

  • Audio breakout to analog L/R audio and Coaxial digital (S/PDIF) outputs concurrently

  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

  • Bi-directional IR pass-through

  • Auto display on / off feature allowing control of display at the HDBaseT receiver via CEC or RS-232

  • Web interface module for control and configuration of HEX70HDU-KIT

  • Control via front panel, IR, RS-232 or TCP/IP

  • Advanced EDID and HDCP management

    *USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device

Key Features

  • Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable

  • Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

  • Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort input on the HDBaseT transmitter with manual or auto source selection

  • Features 1 x local HDMI input on the HDBaseT receiver for connection of a source local to the display

  • Supports 4K @ 60Hz 4:4:4 UHD video up to 40m

  • Extends HDMI 1080p up to a distance of 70m

  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

  • Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)

  • Supports DisplayPort up to 4K UHD @ 60Hz 4:4:4, 4K @ 30Hz 4:4:4 DP1.2

  • Audio breakout to analog L/R audio and Coaxial digital (S/PDIF) outputs concurrently

  • Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end

  • Bi-directional IR pass-through

  • Auto display on / off feature allowing control of display at the HDBaseT receiver via CEC or RS-232

  • Web interface module for control and configuration of HEX70HDU-KIT

  • Control via front panel, IR, RS-232 or TCP/IP

  • Advanced EDID and HDCP management

    *USB-C video support is limited to 4K 60Hz 4:2:0 when charging feature is activated by the source device

HEX70HDU-TX:

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort

  • Video Output Connectors: 1 x HDBaseT RJ45 connector

  • RS-232 Serial Port: 1 x 3-pin Phoenix connector

  • TCP/IP Control: 1 x RJ45, female

  • IR Input Ports: 2 x 3.5mm stereo jack (1 x switching control, 1 x IR pass-through)

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID: 4-pin DIP switch

  • Product Upgrade: 1 x Micro USB, female

  • Casing Dimensions (W x H x D): 175mm x 24mm x 155mm



    HEX70HDU-RX:

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT RJ45 connector

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female

  • RS-232 Serial Port: 1 x 3-pin Phoenix connector

  • Relay Control: 2 x 3-pin Phoenix connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID: 4-pin DIP switch

  • Product Upgrade: 1 x Micro USB, female

  • Casing Dimensions (W x H x D): 175mm x 24mm x 155mm



  • Shipping Weight: 2.6kg

  • Power Supply: 24V/5A DC

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)
