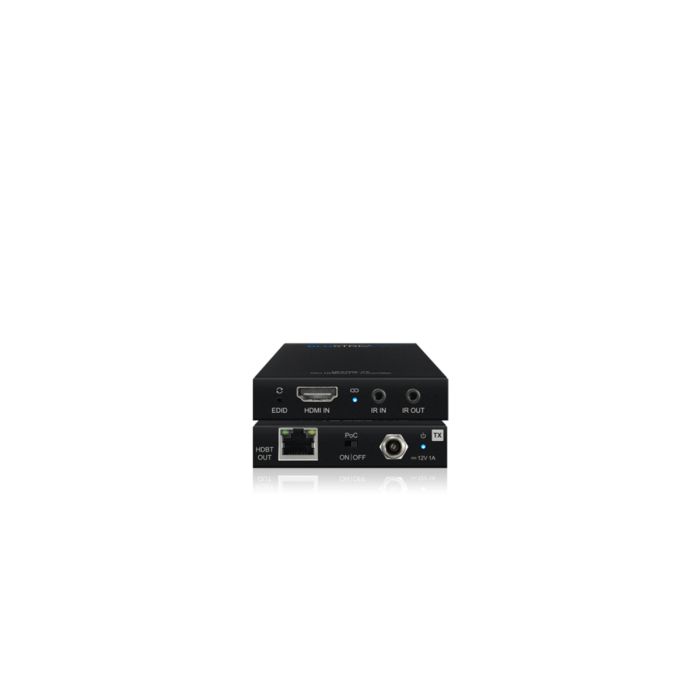

main product photo

HEX70SL-TX - Slimline HDBaseT™ Transmitter

Find a Dealer

The HEX70SL-TX 4K HDBaseT Transmitter offers market-leading features in a slimline chassis. The product delivers HDMI, Bi-directional IR, and Bi-directional PoC up to lengths of 70m.

Box Contents

1 x HEX70SL-TX
1 x Mounting Kit
1 x Quick Reference Guide

  • Advanced HDBaseT technology offering uncompressed video and audio with zero latency

  • Enhanced slimline chassis

  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @ 30Hz 4:4:4, 4096 x 2160 @ 24Hz 4:4:4, and 4K @ 60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Bi-directional IR pass-through

  • Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible receiver point (power supply not included)

  • Smart EDID function automatically limits EDID to within HDBaseT specification to improve compatibility

  • HDCP 2.2 compliant

Key Features

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDBaseT RJ45 connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID: Pin hole button

  • Power Supply: 12V/1A DC

  • Dimensions (L x W x H): 106mm x 73mm x 16mm

  • Shipping Weight: 0.8kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)"
