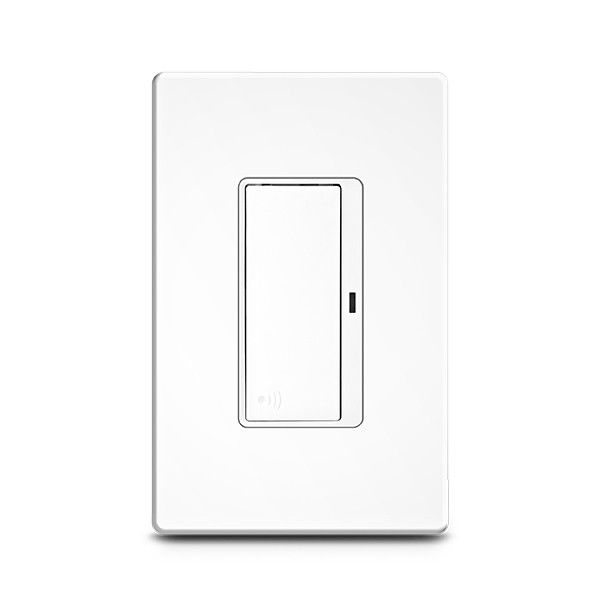

Z-Wave® Switches for Wireless Lighting Control

Use the RTI Z-Wave Light Switch for simple on/off control of indoor or outdoor lighting. Accessory models allow control of up to 5 devices allowing multiple switches to be wirelessly paired together to control lights and RF receptacles.

Z-Wave Dimmers and Switches Selection Guide (PDF)

* RTI Z-Wave devices are available exclusively in North America.

Orders of Z-Wave enabled devices could be fulfilled with either RTI or Pro Control branded units.

Both RTI and Pro Control* Z-Wave devices are fully compatible with the exact same form factor, specifications and functionality.

* Pro Control is a division of Remote Technologies Inc. (RTI)


All Z-Wave Switch Sales Are Final

Z-Wave Lighting Solutions

For the ultimate in home automation, RTI Z-Wave® lighting control solutions provide easy management of the lighting in and around a home. Enjoy the convenience of intuitive control from an in-wall smart switch, RTI user interface, smart phone, tablet or PC. Experience the added security and energy savings of automated lighting and event-based control that requires no interaction at all.

NOTES:

  • Many models available to meet installation and load requirements.
  • Wireless control requires a compatible two-way RTI control processor and Z-Wave interface module.
  • RTI Z-Wave devices are available exclusively in North America.
  • Integration Designer software only available to authorized RTI dealers.

Z-Wave Switch Models Available for Installation and Load Requirements Include:

Lighting Loads:

  • For LED/Compact Fluorescent (CFL)/Incandescent/Magnetic Low Voltage (MLV)/Electronic Low Voltage (ELV)/Halogen/Fluorescent
  • For Incandescent
  • 8A and 15A

Wiring and Multi-location Requirements:

  • Master switch with neutral
  • Accessory switch with neutral
  • Master switch - no neutral
  • Accessory switch - no neutral, no RF

Colors and Wallplates:

  • Switches and dimmers are available in white, light almond and black.
  • Wallplates are not included.
  • Switches and dimmers compatible with standard Decora® style wallplates.

General Features Include:

  • Compatible with RTI accessory switch for 3-way control. Wireless models eliminate the need for traditional 3-way wiring (up to 5 locations)
  • Electro-mechanical push button for ON/OFF operation
  • Blue LED illuminates to indicate ON/OFF status
  • RFI filtering for radio, audio, and video equipment
  • Patented indicator system alerts if switch is not set up in the network
  • Can be associated with up to 5 other devices
  • Programmable delayed OFF mode (up to 4 minutes), default is 10 seconds
  • Child lockout feature
  • All ON/All OFF capability
  • Panic mode capability
  • Configurable “Power ON Status” (ON/OFF/last level)

Specifications by Model:

Master Switches

Master Switch - with Neutral - All Load Types
Model: ZWL-MNS-W (white), ZWL-MNS-A (light almond), ZWL-MNS-B (black)

  • Neutral wire required
  • Single-pole, 3-way, 4-way
  • LED/Compact Fluorescent (CFL)/Incandescent/Magnetic Low Voltage (MLV)/Electronic Low Voltage (ELV)/Halogen/Fluorescent
  • 15A

Master Switch - No Neutral - Incandescent
Model: ZWL-MXS-W (white), ZWL-MXS-A (light almond), ZWL-MXS-B (black)

  • No neutral wire required
  • Single-pole, 3-way, 4-way
  • Incandescent
  • 8A

Accessory Switches

Accessory Switch - with Neutral
ZWL-AND-W (white), ZWL-AND-A (light almond), ZWL-AND-B (black)

  • Requires neutral wire
  • 3-way
  • Compatible with Z-Wave RF master switches

Accessory Dimmer - No Neutral - No Wireless RF
ZWL-XAS-W (white), ZWL-XAS-A (light almond), ZWL-XAS-B (black)

  • No neutral wire required
  • Non-RF device
  • 3-way and multi-location control requires traditional 3-way wiring or dedicated traveller wires
  • Compatible with non-neutral master switch (ZWL-MXS)

Specifications - All Models (Except where noted)

Power 120V/AC, 60Hz
RF Communication Z-Wave Wireless RF (Except ZWL-XAS)
908.4MHz (North American Region)
RF Frequency Range Up to 60ft (20m)
Operating Humidity 5% to 95% Non-condensing
Operating Temperature +32°F to +104°F (0°C to +40°C)
Enclosure Polycarbonate, Aluminum
Mounting Mounts into single gang electrical box
Wall Plate Dimensions Purchased separately (Decora Type)
Dimensions (H x W x D) 4.2in (106.6mm) x 1.8in (46mm) x 1.36in (34.5mm)
Total Depth in Wall 1.36in (34.5mm)
Warranty Three Years (Parts & Labor)
