Z-Wave® Dimmers for Wireless Lighting Control

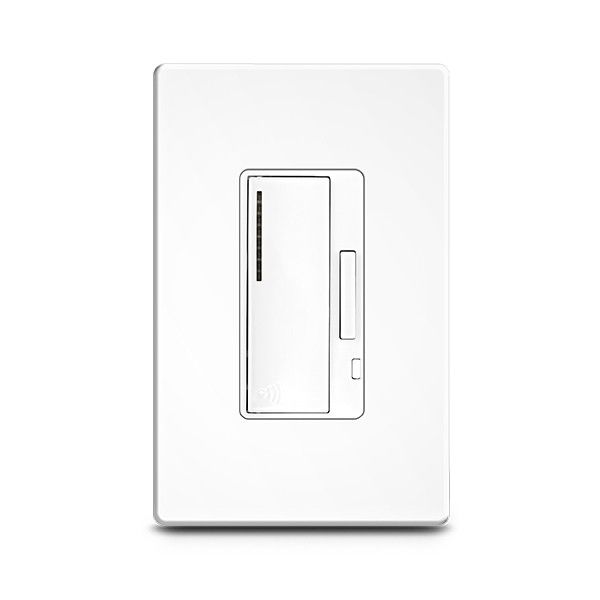

Use the RTI Z-Wave Dimmer to adjust the light intensity to create the right ambience for any occasion. Accessory dimmer models allow control of up to 5 devices allowing multiple switches to be wirelessly paired together to control lights and RF receptacles.

Z-Wave Dimmers and Switches Selection Guide (PDF)

* RTI Z-Wave devices are available exclusively in North America.

Orders of Z-Wave enabled devices could be fulfilled with either RTI or Pro Control branded units.

Both RTI and Pro Control* Z-Wave devices are fully compatible with the exact same form factor, specifications and functionality.

* Pro Control is a division of Remote Technologies Inc. (RTI)

All Z-Wave Switch Sales Are Final

Z-Wave Lighting Solutions

For the ultimate in home automation, RTI Z-Wave® lighting control solutions provide easy management of the lighting in and around a home. Enjoy the convenience of intuitive control from an in-wall smart switch, RTI user interface, smart phone, tablet or PC. Experience the added security and energy savings of automated lighting and event-based control that requires no interaction at all.

NOTES:

  • Models available to meet most installation and load requirements.
  • Wireless control requires a compatible two-way RTI control processor and Z-Wave interface module.
  • RTI Z-Wave devices are available exclusively in North America.
  • Integration Designer software only available to authorized RTI dealers.

Dimmer Models Available for Installation and Load Requirements Include:

Lighting Loads:

  • For Dimmable LED/Compact Fluorescent (CFL)/Incandescent/Magnetic Low Voltage (MLV)/Electronic Low Voltage (ELV)/Halogen/Dimmable Fluorescent
  • For Incandescent/Magnetic Low Voltage (MLV)
  • For Fluorescent/Electronic Low Voltage (ELV)
  • For Incandescent
  • 600W and 1000W

Wiring and Multi-location Requirements:

  • Master dimmer with neutral
  • Accessory dimmer with neutral
  • Master dimmer - no neutral
  • Accessory dimmer - no neutral
  • Accessory dimmer - no neutral, no RF

Colors and Wallplates:

  • Switches and dimmers are available in white, light almond and black.
  • Wallplates are not included.
  • Switches and dimmers compatible with standard Decora® style wallplates.

General Features Include:

  • Adjustable low-end and high-end dimming range to prevent lamp flickering
  • Selectable rapid start feature to ensure lamp start-up at low preset light levels
  • No de-rating required in multi-gang installations
  • RTI accessory dimmers for 3-way control - Wireless models eliminate the need for traditional 3-way wiring or dedicated traveller wire
  • Can be associated with up to 5 other devices
  • Air-gap switch disconnects power from load forcing an OFF condition
  • Electro-mechanical push pad for ON/OFF operation with separate DIM/BRIGHT bar
  • Seven step blue LED display alongside push pad indicates selected light level and reduces brightness when OFF (nightlight feature)
  • Programmable rapid and delayed fading up to 4 minutes (default is 10 seconds)
  • Adjustable ramp rate (up to 4 minutes)
  • Child lockout feature
  • Pressing and holding push pad for 2 seconds brings light to full brightness without affecting preset levels

*Features and specifications vary by model.
**Compliances, specifications and availability are subject to change without notice.

Specifications by Model:

Master Dimmers

Master Dimmer - with Neutral - 300W/600W - All Load Types
Model: ZWL-MND-W (white), ZWL-MND-A (light almond), ZWL-MND-B (black)

  • Neutral wire required
  • Single-pole, 3-way, 4-way
  • Dimmable LED/Compact Fluorescent (CFL)/Incandescent/Magnetic Low Voltage (MLV)/Electronic Low Voltage (ELV)/Halogen/Dimmable Fluorescent
  • 300W/600W - Rated for use with 300W of dimmable LED or CFL, and 600W of dimmable incandescent, magnetic low-voltage, electronic low-voltage, fluorescent and halogen

Master Dimmer - with Neutral - 1000W - Incandescent
Model: ZWL-IDN-W (white), ZWL-IDN-A (light almond), ZWL-IDN-B (black)

  • Neutral wire required
  • Single-pole, 3-way, 4-way
  • Incandescent/Magnetic Low Voltage (MLV)
  • 1000W

Master Dimmer - with Neutral - 1000W - Fluorescent
Model: ZWL-FDN-W (white), ZWL-FDN-A (light almond), ZWL-FDN-B (black)

  • Neutral wire required
  • Single-pole, 3-way, 4-way
  • Fluorescent/Electronic Low Voltage (ELV)
  • 1000W

Master Dimmer - No Neutral - 1000W - Incandescent
Model: ZWL-IDX-W (white), ZWL-IDX-A (light almond), ZWL-IDX-B (black)

  • No neutral wire required
  • Single-pole, 3-way, 4-way
  • Incandescent ONLY
  • 1000W

Master Dimmer - No Neutral - 600W - Incandescent
Model: ZWL-MDX-W (white), ZWL-MDX-A (light almond), ZWL-MDX-B (black)

  • No neutral wire required
  • Single-pole, 3-way, 4-way
  • Incandescent ONLY
  • 600W

Accessory Dimmers

Accessory Dimmer - with Neutral
ZWL-AND-W (white), ZWL-AND-A (light almond), ZWL-AND-B (black)

  • Requires neutral wire
  • 3-way
  • Compatible with Z-Wave RF master dimmers

Accessory Dimmer - No Neutral - No Wireless RF
ZWL-WAX-W (white), ZWL-WAX-A (light almond), ZWL-WAX-B (black)

  • No neutral wire required
  • Non-RF device
  • 3-way and multi-location control requires traditional 3-way wiring or dedicated traveller wires
  • Compatible with Z-Wave RF master dimmers

Specifications - All Models (except where noted)

Power 120V/AC, 60Hz
RF Communication Z-Wave Wireless RF (Except ZWL-WAX)
908.4MHz (North American Region)
RF Frequency Range Up to 60ft (20m)
Operating Humidity 5% to 95% Non-condensing
Operating Temperature +32°F to +104°F (0°C to +40°C)
Enclosure Polycarbonate, Aluminum
Mounting Mounts into single gang electrical box
Wall Plate Dimensions Purchased separately (Decora Type)
Dimensions (H x W x D) 4.2in (106.6mm) x 1.8in (46mm) x 1.36in (34.5mm)
Total Depth in Wall 1.36in (34.5mm)
Warranty Three Years (Parts & Labor)
