SRTK-1 Single Room Training Kit

The SRTK-1 Single Room Training Kit is designed for integrators getting started with RTI.

The kit delivers exceptional control and automation of AV and music streaming in a media room or other single room environment, and the system can expand to control lighting, climate, security, and more.

The SRTK-1 kit combines the power of the XP-3 control processor and the streaming convenience of the MS-1 Music Streamer with the vibrant, fully customizable graphical interface of the T2x touchscreen remote control for exceptional control in multiple environments. The included RTiPanel unlimited license enables control via Apple or Android smartphones or tablets.

And since this in an introduction to RTI, the Kit also includes some RTI-branded "welcome" accessories (cap, tumbler, laser pen).

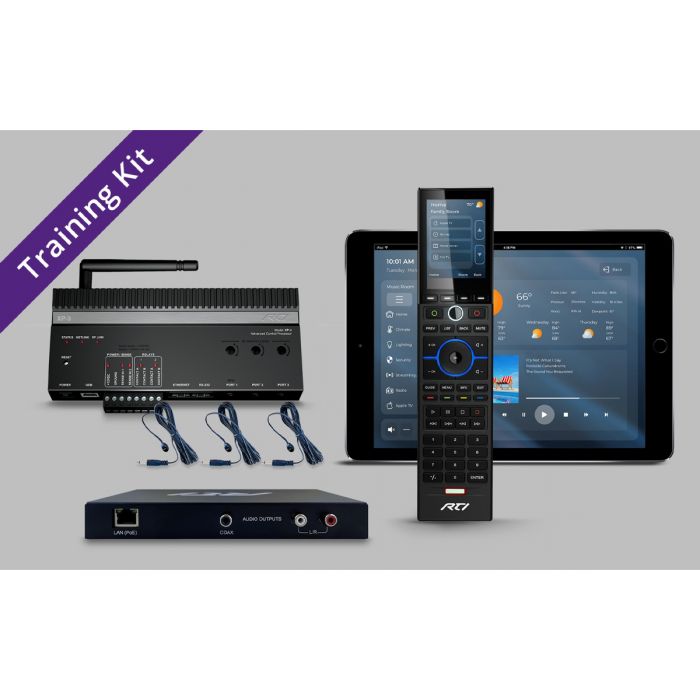

Included in the box:
1 x XP-3 Advanced Control Processor
1 x MS-1 Music Streamer
1 x T2x 2.8” Touch Screen Remote Control
1 x XP RTiPanel Unlimited User License
3 x vIRsa Mouse Infrared Emitter
1 x RTI Cap
1 x RTI Insulated Tumbler
1 x RTI Laser Pen

  • Training Kit for new dealers, synchonized with the RTIEXCEL C101 - New Dealer Authorization Training.
  • All-in-one single room control and audio streaming solution.
  • Robust XP-3 processor with Ethernet, RS-232, Infrared, Relay, I/O and Voltage Sensing ports.
  • MS-1 Music Streamer with analog and digital audio output.
  • Reliable two-way control communication via Zigbee between processor and remote.
  • T2x touchscreen remote with hard buttons for intuitive, convenient control. Docking Station included.
  • Licensed RTiPanel App allows control with iOS or Android smartphones and tablets.
  • Fully customizable graphical user interface and programmable hard buttons with two-way feedback.
  • Configurable macros and scenes through the Integration Designer programming platform
  • Kit comes with "Welcome to RTI" Items: RTI Cap, an RTI Insulated Tumbler, and an RTI Laser Pen. (Item selection subject to change.)
  • All-in-one single room control and audio streaming solution.
  • Used in the RTI New Dealer Authorization Training.
  • XP-3 processor with Ethernet, RS-232, Infrared, Relay, I/O and Voltage Sensing ports.
  • MS-1 Music Streamer with analog and digital audio output.
  • Reliable two-way control communication via Zigbee between processor and remote.
  • T2x touchscreen remote with hard buttons for intuitive, convenient control. Docking Station included.
  • Licensed RTiPanel App allows control with iOS or Android smartphones and tablets.
  • Fully customizable graphical user interface and programmable hard buttons with two-way feedback.
  • Configurable macros and scenes through the Integration Designer programming platform

XP-3 Control Processor

Power +12VDC, 1A
Wireless Networking IEEE802.15.4 Zigbee network compliant
RF Frequency Range 2.4GHz - 2.5GHz
Multi-Purpose Output Ports One custom 3.5mm 4-conductor jack (port 1)
Designed for RTI modules as well as industry-standard IR emitters
IR Output Ports Two, 3.5mm jack (ports 2 & 3)
Compatible with industry-standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
Infrared Frequency Range 15 KHz - 460 KHz
Infrared Input Compatible with industry-standard repeaters and receivers
Relays Two, 5 amps @ 30VDC
Sense Inputs Two, 3-24VDC
RS232 Ports One, Bi-directional RJ45 Connections
Ethernet Port One, 10/100Base-T with PoE (Class 3)
USB Ports One, Programming
RAM Memory 64MB
Flash Memory 128MB
Mounting Wall-mount or free standing
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (W x H x D) 7.0 in (175mm) x 3.0 in (76mm) x 1.0 in (25mm)
Weight .4lbs (212g)
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



T2x Touch Screen Remote Control

Power 3.6 VDC, 1800 mAh Lithium-Ion Battery Pack
Power Management Automatic On/Off (integrated accelerometer/grip sensors)
Infrared Control Range 30 feet (9.1 meters) @ 60 degrees
Infrared Frequency Transmission Range 15kHz - 460kHz
Radio Frequency Control Range Up to 100 feet (30.5 meters) (with optional System Interfaces/Processors)
Radio Frequency Carrier 802.15.4 @ 2.4GHz (Zigbee® Wireless Networking) and 433MHz
Wireless Ethernet 802.11b/g @ 2.4Ghz
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Touchscreen Display High-brightness color TFT LCD
1/4 VGA (240x320 pixels) with 64K colors
Integrated high-resolution touchscreen
Display Size 2.8 in (71mm) diagonal
Backlights Blue/White LED (Keypad)
Nominal Run Time on Full Charge 4-6 hours, continuous use (WiFi° & backlight setting dependent) (5 to 7 days on average use)
Standby Time on Full Charge 30 Days
Battery Charge Time 3-4 Hours
Total System Memory 128M Bytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB 2.0 programming port
Dimensions (L x W x D) 10.0" (254mm) x 2.3" (58mm) x 0.7" (20mm)
Enclosure High-impact molded ABS plastic
Weight 8.8 oz. (250g) with battery pack
Warranty Three Years (Parts & Labor) / One year on the battery
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov



MS-1 Music Streamer

Power Supply PoE (802.3af)
Mounting Free-Standing or Rack Mount with optional Rack-Mount Kit RM-4VIP2
Dimensions WxDxH 7.5in(190.5mm) x 4.75in(120.7mm) x 1in(25.4mm)
Weight 1.47lbs (670g)
Audio Output 1 x RCA L/R analog audio
1 x RCA Digital Coaxial
Digital-to-Analog Conversion Hi-Res 24-bit/192kHz
Sample Rates 44.1kHz -192kHz
Ethernet Port 1 x LAN RJ45 Connector 10/100Mbps
Control IP
Operating Temperature +45 to + 122°F / 7 to + 50°C
Operating Humidity 5% to 95% Non-condensing
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All specifications subject to change without notice
* Two-way feedback available only when used with RTI control components.
** Grip sensors and accelerometer cannot be used simultaneously.
