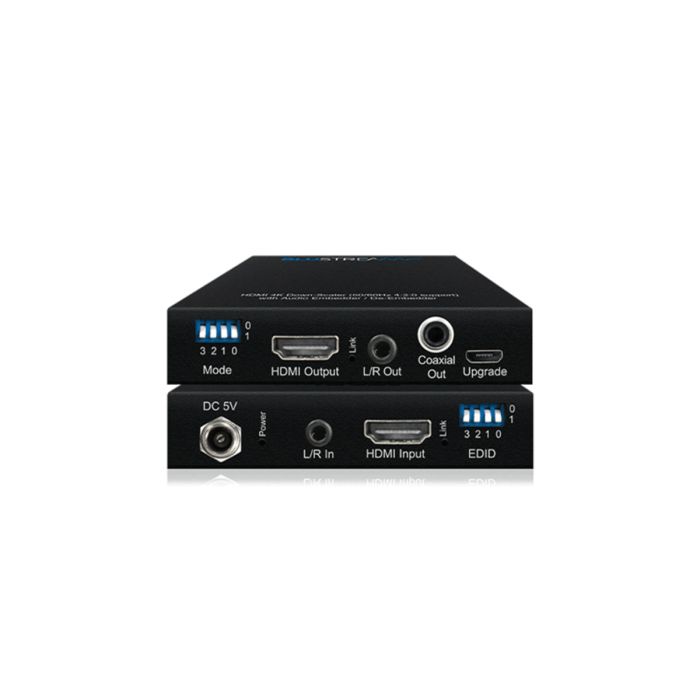

SC11HD-V2 - HDMI® Video Down-scaler with Audio Embedder/De-Embedder
Our Blustream SC11HD-V2 is an HDMI® 4K scaler, designed for installations with multiple displays that support different maximum video resolutions.
The SC11HD-V2 is ideal for multi-room installations with multiple output resolution requirements.
The SC11HD-V2 supports downscaling of 4K (inc.HDR) video to 1080p and supports HDCP 2.2 with advanced EDID management. It also features either de-embedding or embedding audio within the HDMI signal path.
Box Contents
1 x SC11HD-V2
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
-
HDMI 4K video scaler
-
Supports 4K UHD video input (3840 x 2160 @24/30Hz 4:4:4 with HDR), 3840 x 2160 @ 50/60Hz 4:2:0)
-
HDMI output will downscale 4K@24/25/30Hz to 1080p @ 24/25/30Hz, and 4K@50/60Hz 4:2:0 to 1080p @ 50/60Hz
-
Can be configured to work as either a HDMI audio de-embedder or audio embedder
-
HDMI audio de-embedded to both analog L/R audio and coaxial digital outputs concurrently (2ch PCM only)
-
Embed analog L/R 2ch audio input onto HDMI output
-
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
-
Advanced EDID management
-
HDCP 2.2 support
-
CEC and ARC pass through
-
Audio Input Connectors: 1 x Analog Left / Right audio (3.5mm stereo jack)
-
Audio Output Connectors: 1 x RCA (S/PDIF) & 1 x Analog Left / Right audio (3.5mm stereo jack)
-
Video Input Connectors: 1 x HDMI Type A
-
Video Output Connectors: 1 x HDMI Type A
-
EDID: 4-pin DIP switch
-
Mode: 4-pin DIP switch
-
Product Upgrade: 1 x Female Micro USB
-
Dimensions Including Connections (W x H x D): 83mm x 15mm x 83mm
-
Shipping Weight: 0.5kg
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
-
Power Supply: 5V/1A DC
