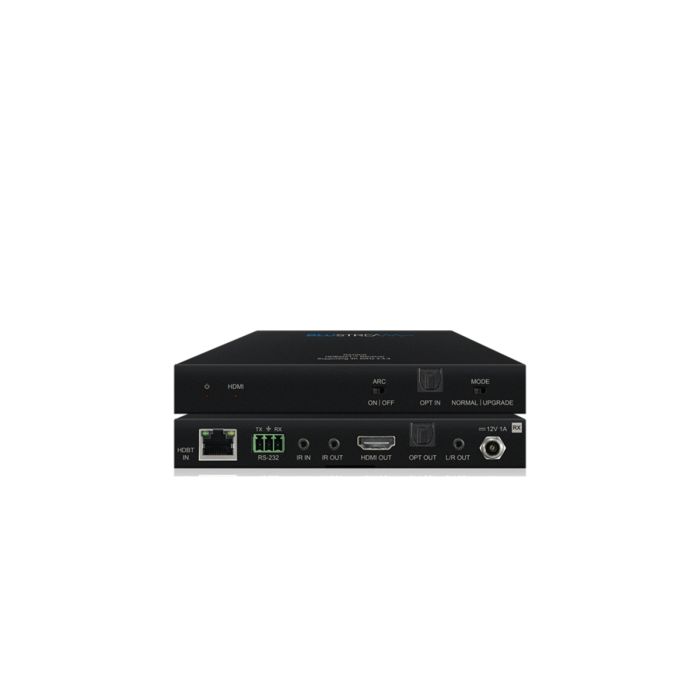

RX70-CS -HDBaseT™ Receiver, for C66/88CS, HMXL66/88, Slimline



The RX70CS HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ ARC Receiver offers market leading features and outstanding value utilizing CSC technology.

The product extends HDMI, bi-directional IR & RS-232 and is powered by the matrix up to lengths of 70m at 1080p (4K 18Gbps to 40m).

The receiver features ARC support when used with compatible Blustream hardware and simultaneous analog stereo and Optical Toslink audio breakout.

Box Contents

1 x RX70CS
1 x Mounting Kit
1 x Quick Reference Guide

  • Video Input Connectors: 1 x HDBaseT RJ45 connector,

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female

  • Audio Input Connectors: 1 x Toslink (S/PDIF) - for Optical Audio Return only

  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analog audio - for audio breakout of HDBaseT input signal only

  • RS-232 Serial Port: 1 x 3-pin Phoenix connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • Mounting Kit: Included

  • Casing Dimensions (without connections) (W x D x H): 140mm x 84mm x 18mm

  • Casing Dimensions (with connections) (W x D x H): 140mm x 98mm x 18mm

  • Shipping Weight: 0.5kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature: -4°F to 140°F (-25°C to +70°C)

  • Power Supply: 1 x 12V/1A DC, screw connector
