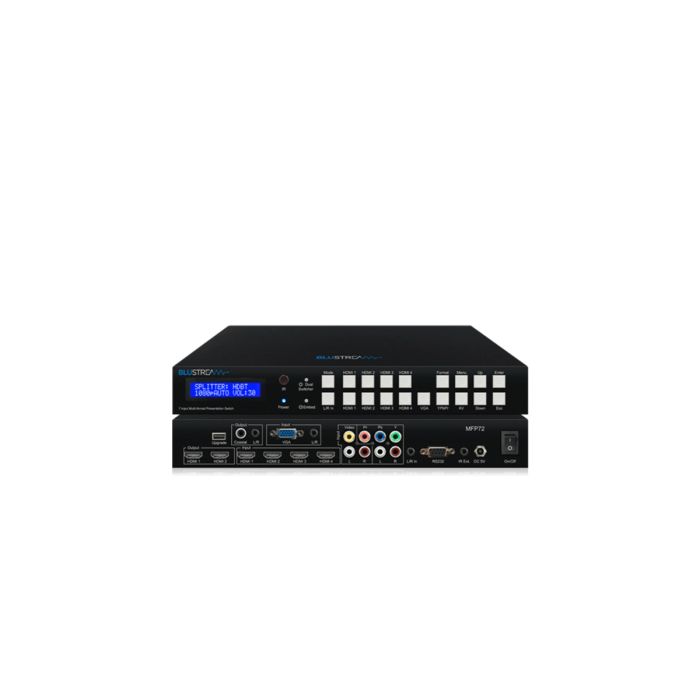

MFP72 - 7 Input 2 Output Multi-Format Presentation Switch

Our MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management.

The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1x2), alternatively each output can work independently with output 1 routing the 4 x HDMI® inputs only (4:1 up to 4K) and output 2 switching all 7 video / audio inputs (7:1 up to 1080p).

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Box Contents

1x MFP72
1x 5V/2A DC Power Supply
1x IR Remote Control
1x IR Receiver
1x IR Control Cable - 3.5mm - 3.5mm Cable (IRCAB)
1x Mounting Kit
1x User Manual

  • Switcher can function in 2 modes:

    - Splitter mode - both HDMI outputs display the same image from any video input

    - Switcher mode - HDMI output 1 and 2 are independently controlled

  • HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)

  • HDMI output 2 can view all HDMI and analog video inputs with associated audio (up to 1080p resolution)

  • Built-in video scaling, both up-scaling and downscaling capabilities

  • Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800x600 @60 & 75Hz)

  • Scaled video output resolutions: 720p, 1080p, 1280x1024, 1024x768, 1360x768, 1440x900, 1680x1050

  • Audio embedding - independent analog L/R audio input can be embedded to HDMI outputs and analog L/R audio and coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in 'Split Mode', 'Switch Mode' = HDMI output 2 only)

  • HDMI audio breakout to analog L/R audio and coaxial digital outputs concurrently (linked to output 2 in 'Switch Mode')

  • Volume control - controls volume output of HDMI, Analog L/R audio and coaxial digital outputs

  • Supports 3D signal display

  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission

  • Supplied with Blustream IR receiver and IR link cable

  • Control via front panel, IR and RS-232

  • 3rd Party drivers available for all major home control brands

  • HDCP 1.4 compliant

  • Video Input Connectors: 4 x HDMI Type A, 1 x VGA, 1 x Composite, 1 x YPbPr

  • Video Output Connectors: 2 x HDMI Type A

  • Audio Input Connectors: 2 x Analog audio 3.5mm stereo jack, 4 x Analog audio RCA (2x L/R)

  • Audio Output Connectors: 1 x Analog audio 3.5mm stereo jack, 1 x S/PDIF Coaxial digital

  • RS-232 Serial Port: DB-9 connector

  • IR Input ports: 1 x 3.5mm stereo jack

  • Casing Dimensions (W x H x D): 323mm x 45mm x 130mm, without feet

  • Dimensions Including Connections (W x H x D): 322mm x 45mm x 140mm

  • Shipping Weight: 1.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 5V/2A DC
