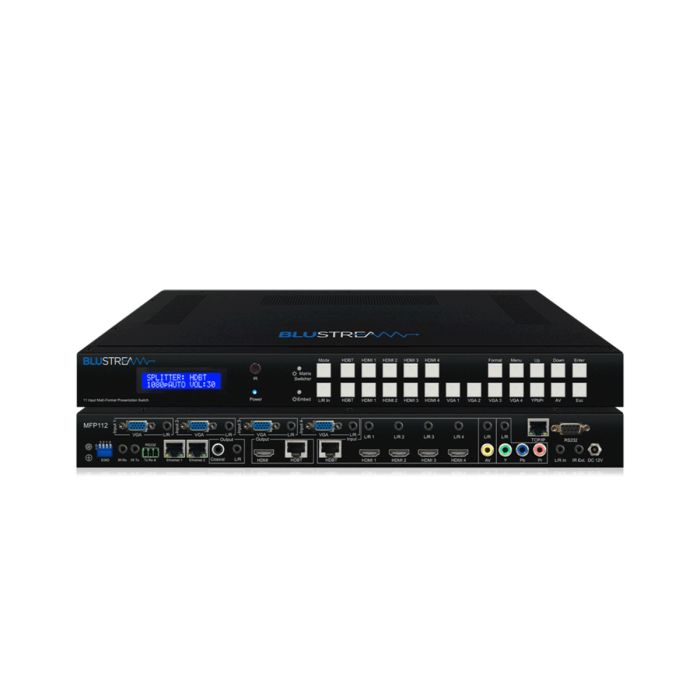

MFP112 - 8 Input Multi-format Presentation Switch


The MFP112 is a multi-format presentation switcher with in-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT™ input and output.

The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1 x HDBaseT™ + 4 x HDMI inputs only and output 2 switching all 11 video + audio inputs.

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

  • Video Input Connectors: 4 x HDMI Type A, 1 x HDBaseT RJ45 connector, 4 x VGA, 1 x Composite, 1 x Component (YPbPr)

  • Video Output Connectors: 1 x HDMI Type A, 1 x HDBaseT RJ45 connector

  • Audio Input Connectors: 11 x Analog audio 3.5mm stereo jack

  • Audio Output Connectors: 1 x Analog audio 3.5mm stereo jack, 1 x S/PDIF Coaxial digital

  • RS-232 Serial Port: DB-9 connector (matrix control), 1 x 3-pin Phoenix connector for RS-232 pass-through

  • IR Input Ports: 2 x 3.5mm stereo jack

  • IR Output Ports: 2 x 3.5mm mono jack

  • Casing Dimensions (W x H x D): 438mm x 45mm x 225mm, without feet

  • Dimensions Including Connections (W x H x D): 438mm x 45mm x 235mm

  • Shipping Weight: 1.5kg

  • Operating Temperature: 32°F to 104°F (0°C to 40°C)

  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

  • Power Supply: 12V/5A DC
