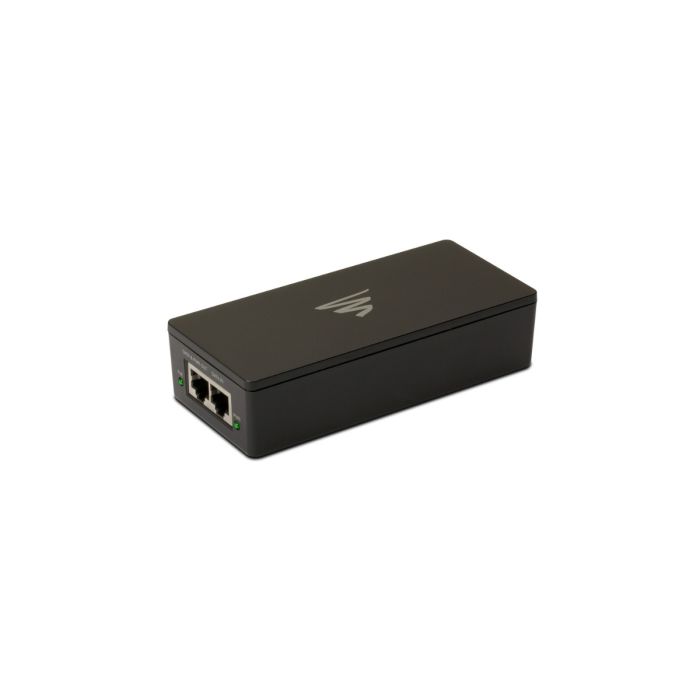

Luxul XPE-2500 Gigabit PoE/PoE+ Injector

The Single Port PoE+ (Power Over Ethernet) Injector delivers both data and electrical power to PoE enabled devices using standard Ethernet cable. This eliminates the need to place devices (i.e. wireless access points) near a power outlet, allowing for greater AV installation flexibility, while also reducing AV installation and labor costs. PoE enabled devices may be placed up to 328 feet (100 meters) away from the POE Injector. Power Cord included in this kit. Your Ethernet cable is required.

Included in the box:
XPE-2500 Gigabit Power-over-Ethernet Injector, power cord, quick install guide

  • 802.3af/at compliant
  • Delivers up to 30 Watts of power
  • Gigabit Speeds (10/100/1000)
  • Built in power supply
Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3af/at standards
Output Voiltage 51V, 0.6A
Output Power PoE: 15.4W
PoE+: 30W
Input Voltage AC100-240V 0.8A 50 60Hz
Ports 2 x 10/100/1000Mbps RJ45
1 x Power Input
Cable Cat5e or better
LEDs PoE: Indicates power is being passed to the connected 802.3af/at PoE device
PWR: Power is connected to the PoE Injector
Operating Temperature +32°F to +122°F (0°C to +50°C)
Dimensions (W x D x H) 5.25 in (133mm) x 2.375 in (60mm) x 1.3125 in (33mm)
Weight 0.75lbs (0.34kg)
Warranty Three Year Limited Warranty (Parts & Labor)
