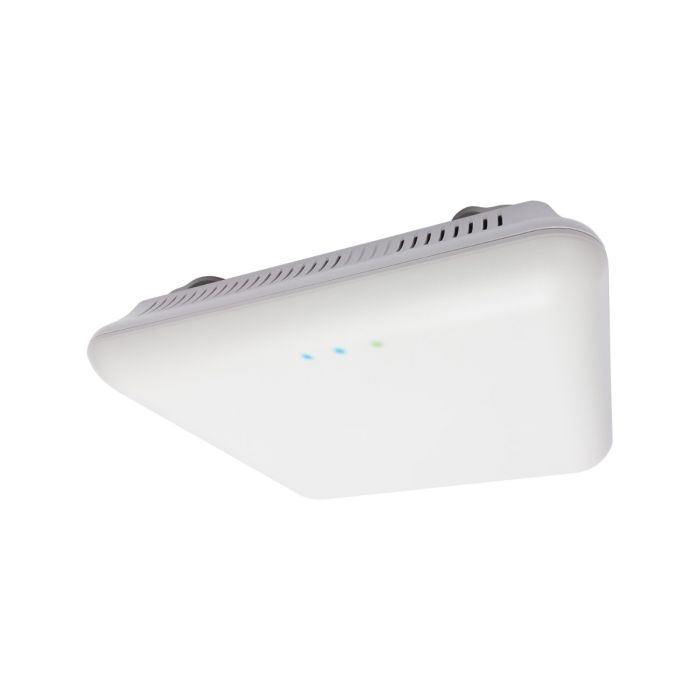

Luxul XAP-1610 Dual-Band Access Point

The XAP-1610 is built with leading edge 802.11ac Wave 2 technology which offers support for more connected devices and increased data rates, delivering outstanding WiFi performance. It is compatible with all Luxul WiFi controllers, both standalone and embedded, and can be used standalone or as part of a multi- AP deployment. Installation is simple, requiring only a single Ethernet cable that delivers both power and data through the integrated PoE+ port.

Included in the box:
Wave 2 AC3100 Dual-Band Wireless AP, mounting kit, rubber feet, PoE injector and power cord, Ethernet cable, quick install guide

  • High performance 802.11ac WiFi (data transfers up to 3167Mbps)
  • Concurrent Dual-Band Wireless AC
  • 2.4 and 5GHz Beamforming
  • High output power for maximum coverage
  • Compatible with Luxul Roam Assist™ Wireless Controllers
  • VLAN support for creating a secure guest network
  • Simple and discreet installation
  • Up to 4 SSIDs per band for a total of 8 SSIDs
  • Single cable installation with PoE (Injector included)
  • Great for streaming media or other demanding applications
  • Installs on ceiling or wall; or use as a desktop AP
  • Three-year limited warranty
  • Supports 128 clients
  • Wave 2 technology (MU-MIMO)
Access Point Location Indoor
Antenna Type 4x4 MU-MIMO Wave 2
Connection Type Wireless
Power Cord US Cord
Power Type AC
ProWatch Type ProWatch Plus
SSID Capability 8
Transmit Power 1000mW
VLAN Compliance 802.1Q
Wireless Frequencies 2.4 GHz
Wireless Mode 802.11 a/b/g/n/ac
Operating Temperature +32°F to +122°F (0°C to +50°C)
Dimensions (H x L x W) 7.28 in (185mm) x 7.28 in (185mm) x 1.71 in (43mm)
Weight 1.5lbs (0.68kg)
Warranty Three Year Limited Warranty (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to
